XW5T-S4,0-1,1-1 XW5T0004E XW5TS40111 OMRON Terminals step DIN rail screw, nominal cross section 4 mm2, grey ..
XW5T-S4,0-1,1-1
XW5T0004E
XW5TS40111
OMRON
100

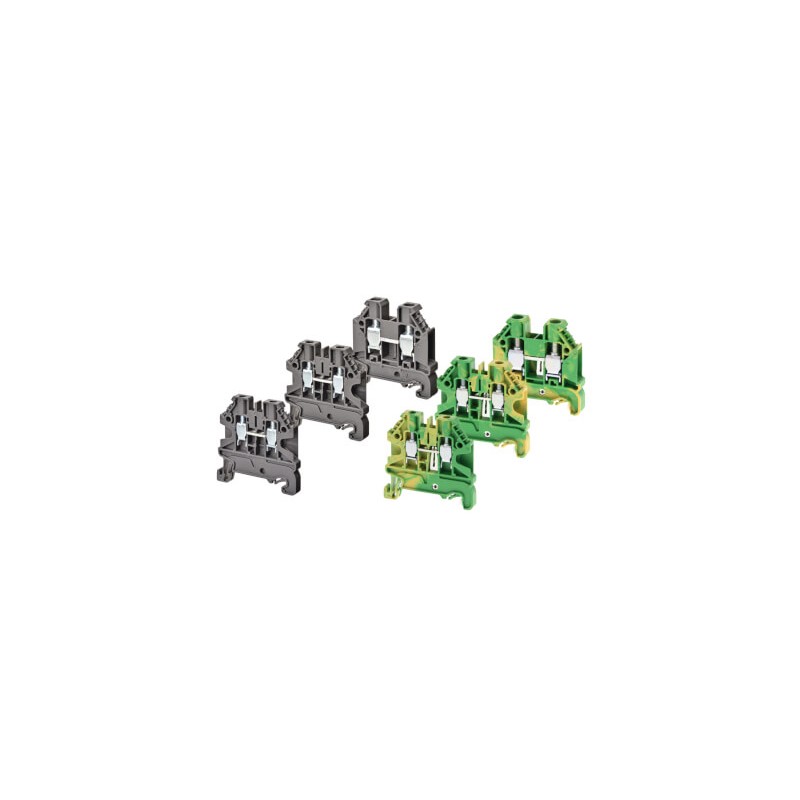

Terminals step DIN rail screw, nominal cross section 4 mm2, grey colour
Feed-through DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 4 mm²; width 6 mm; color gray
Terminal blocks > Feed-through terminal block
Terminal Block > Screw Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
PDF
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Type of electrical connection 2 (EF002527) | Screw connection |
| Material insulation body (EF007543) | Thermoplastic |
| Colour (EF000007) | Grey |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Closing plate required (EF002525) | Yes |
| Internally connected stages (EF002661) | No |
| Explosion-tested version 'Ex e' (EF008498) | No |
| Rated voltage (EF000228) | 1000 V |
| Rated current In (EF008250) | 32 A |
| Number of levels (EF002659) | 1 |
| Number of clamp positions per level (EF002660) | 2 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.5 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Operating temperature (EF002393) | -40 °C |
Datasheet - PDF
