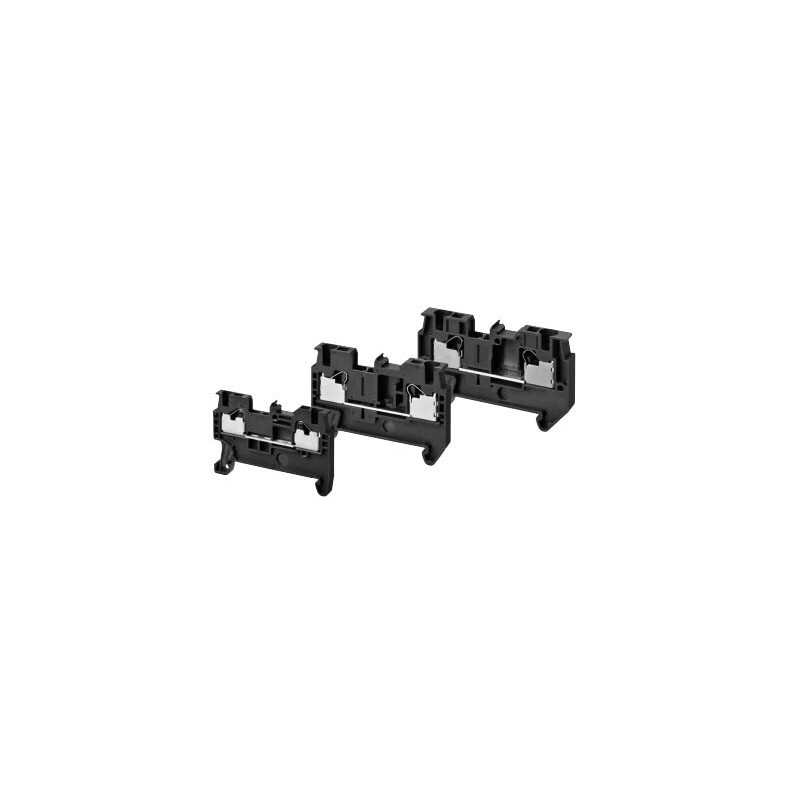

XW5T-P1,5-1,1-1 XW5T0102E XW5TP15111 OMRON Terminals step DIN rail, nominal cross section 1 mm2, grey colour..
XW5T-P1,5-1,1-1
XW5T0102E
XW5TP15111
OMRON
50
Terminals step DIN rail, nominal cross section 1 mm2, grey colour, Push-in+
Feed-through DIN rail terminal block with push-in plus connection for mounting on TS 35, nominal cross section 1 mm², color gray
Terminal blocks > Feed-through terminal block
Terminal Block > Push-in Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail (top hat rail)/G-rail TH35/G32 |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Type of electrical connection 2 (EF002527) | Other |
| Material insulation body (EF007543) | Other |
| Colour (EF000007) | Grey |
| Type of electrical connection 1 (EF002526) | Spring clamp connection |
| Closing plate required (EF002525) | Yes |
| Internally connected stages (EF002661) | No |
| Explosion-tested version 'Ex e' (EF008498) | No |
| Rated voltage (EF000228) | 500 V |
| Rated current In (EF008250) | 13.5 A |
| Number of levels (EF002659) | 1 |
| Number of clamp positions per level (EF002660) | 1 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.14 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.08 mm² |
| Operating temperature (EF002393) | -40 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| XW5T-P1,5-1,1-1 XW5TP15111 XW5T0102E xw5_series_brochure_en.pdf | 1 Mbytes |
|
| XW5T-P1,5-1,1-1 XW5TP15111 XW5T0102E g124_xw5t_datasheet_en.pdf | 6 Mbytes |
|
