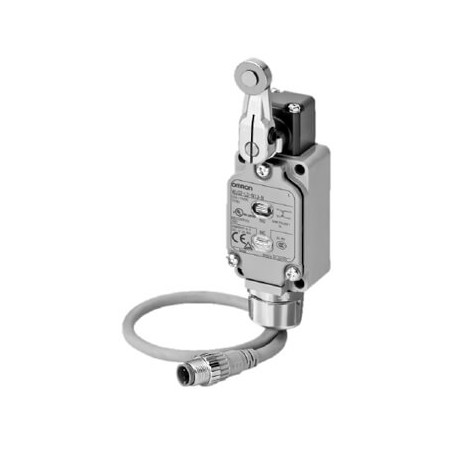

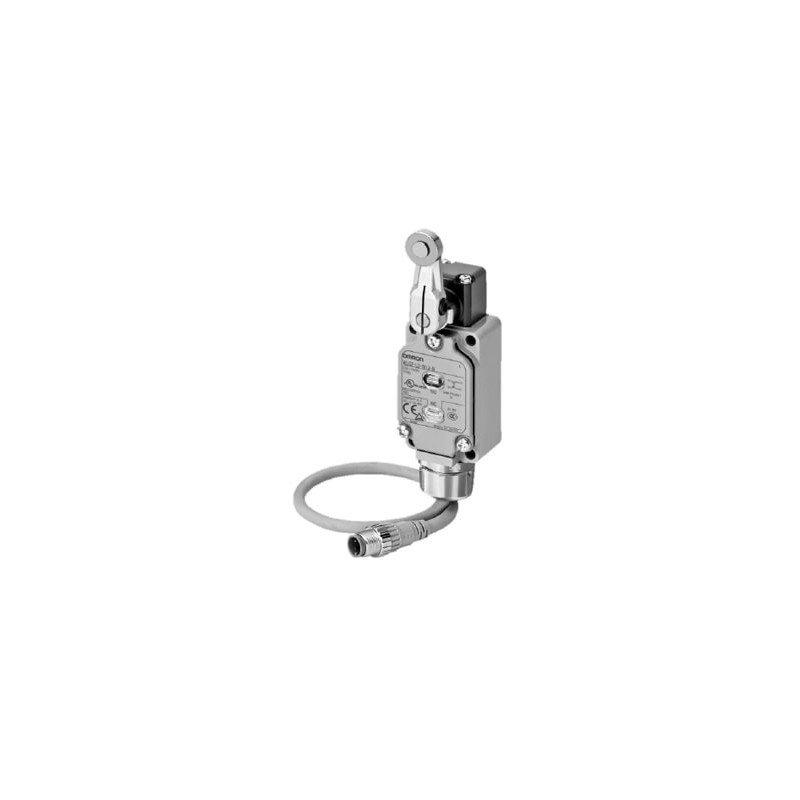

WLCA12-Y-N WLN 0062G WLCA12YN OMRON Lever roller plunger adjustable M20
WLCA12-Y-N
WLN 0062G
WLCA12YN
OMRON
Lever roller plunger adjustable M20
Limit switch, adjustable roller lever: R25 to 89 mm, pretravel 15±5°, DPDB, M20 with ground terminal
Sensors > End switch
Industrial Limit switches / Pushbuttons > WL
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Improved durability and performance
- Reduced part numbers
- Easy wiring
- Direct and pre-wiring
- Ground terminal models are approved by EN and IEC and bear the CE marking
- UL,CSA
Specifications & ordering info
Ordering Information
DPDB1 | Screw terminal (Pg13,5 conduit with ground terminal)2 | ||||
Specifications
Characteristics
Durability3 | 15,000,000 operations min.4 | |
750,000 operations min.5 | ||
25 mΩ max. (initial value for the built-in switch when tested alone) | ||
-10 to 80°C (with no icing)6 | ||
Note: 1. The above figures are initial values.
2. The figures in parentheses for dielectric strength are those for the highsensitivity overtravel models.
Ratings
2.Models with screw terminals with M20 conduit instead of PG13.5 are available. Contact your OMRON representative.
3.The values are calculated at an operating temperature of 5 to 35°C and an operating humidity of 40% to 70% RH. Contact your OMRON sales representative for more detailed information on other operating environments.
4.Durability is 1,000,000 operations min. for high-sensitivity models. 500,000 operations min. for weather-proof models.
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Roller cam straight |
| Type of control element (EF006976) | Adjustable roller lever |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Cable entry metrical |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Quick-break switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Forced opening (EF006694) | No |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 10 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.8 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.4 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 10 A |
| Width sensor (EF007094) | 40 mm |
| Height of sensor (EF007283) | 94.1 mm |
| Length of sensor (EF007334) | 67 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
