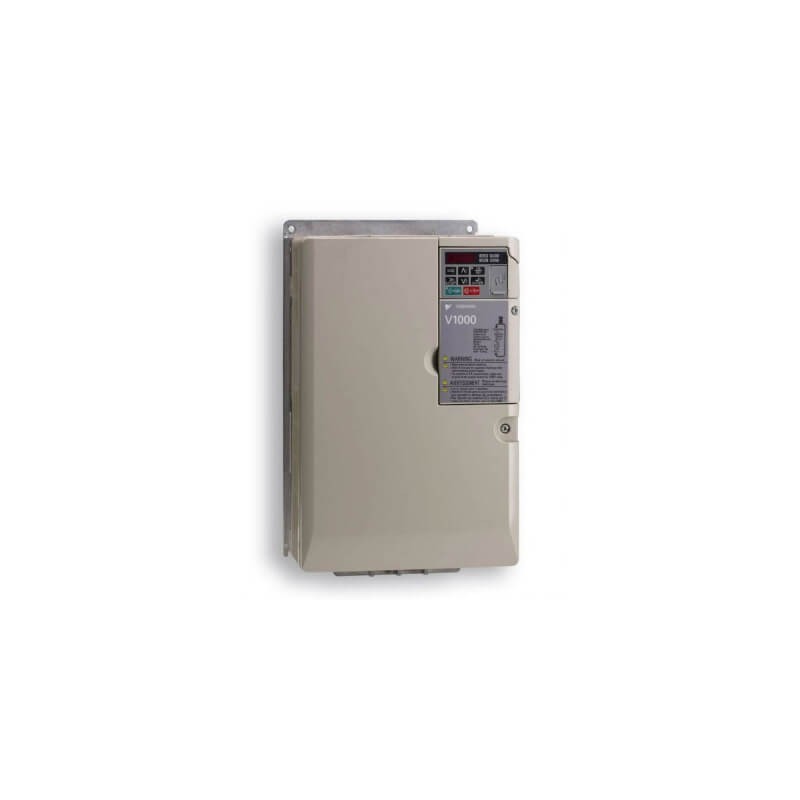

VZA47P5FAA 3G3Z1415M VZA47P5FAAGBR OMRON V1000 three Phase 380-480VAC (18,0/23,0)Amp (7,5/11)Kw Vector
VZA47P5FAA
3G3Z1415M
VZA47P5FAAGBR
OMRON
V1000 three Phase 380-480VAC (18,0/23,0)Amp (7,5/11)Kw Vector
V1000 Three Phase 400VAC (18.0/23.0)Amp (7.5/11)Kw Vector
V1000 inverter, 3~ 400 VAC, 7.5 kW, 18 A, sensorless vector, max. output freq. 400Hz
Low-voltage industrial components > Frequency converter less than 1 kV
Frequency inverters > V1000
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque | 7.5 kW |
| Max. motor output at variable torque | 11 kW |
| Built in EMC filter | |
| Degree of protection (IP) | IP20 |
| Finless type | |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-422, Serial RS-485 |
| Communication option(s) | CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 254 mm |
| Product Width (unpacked) | 140 mm |
| Product Depth (unpacked) | 140 mm |
| Product Weight (unpacked) | 3800 g |
Accessories
| Feature Name | Feature Value |
|---|---|
| Mains frequency (EF006783) | 50/60 Hz |
| Type of converter (EF006978) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of phases input (EF007117) | 3 |
| Number of phases output (EF006998) | 3 |
| With PC connection (EF006107) | Yes |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFIBUS (EF003052) | Yes |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Application in domestic- and commercial area permitted (EF007295) | No |
| 4-quadrant operation possible (EF006803) | Yes |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| With control element (EF001538) | Yes |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Application in industrial area permitted (EF007294) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for CAN (EF003053) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for DeviceNet (EF003059) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Integrated breaking resistance (EF007293) | Yes |
| Max. output frequency (EF007350) | 400 Hz |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Max. output at linear load at rated output voltage (EF007364) | 7.5 kW |
| Relative symmetric net voltage tolerance (EF007453) | 10 % |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 140 mm |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 1 |
| Max. output at quadratic load at rated output voltage (EF007366) | 11 kW |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Nominal output current I2N (EF009561) | 23 A |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Height (EF000040) | 254 mm |
| Max. output voltage (EF009560) | 480 V |
| Depth (EF000049) | 140 mm |
| Relative symmetric net frequency tolerance (EF007454) | 5 % |
| Mains voltage (EF006780) | 380 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| VZA47P5FAA VZA47P5FAAGBR 3G3Z1415M EN_VZA40P2BAA.pdf | 1 Mbytes |
|
