> OMRON>Industrial barcode readers>BarCode Readers and Smart Cameras>V430-F300W03M-SWP V4305140C 697952 OMRON V430 code reader, 0.3 MP monochrome, wide-angle, 300mm fixed focus,..
Previous Product Next Product

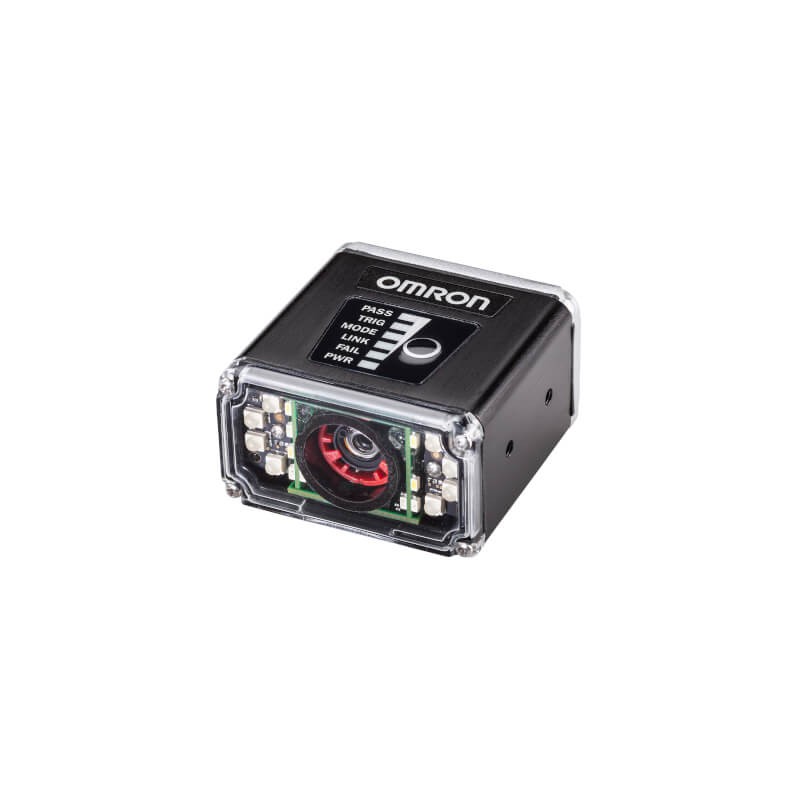

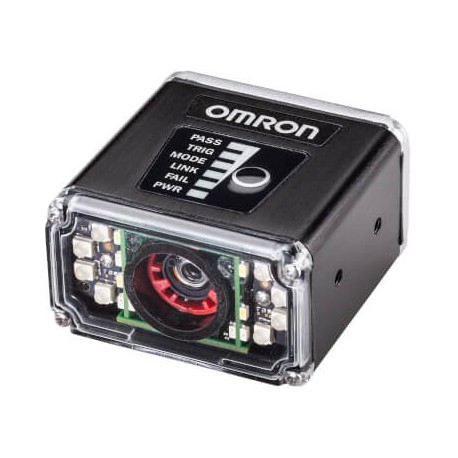

V430-F300W03M-SWP V4305140C 697952 OMRON V430 code reader, 0.3 MP monochrome, wide-angle, 300mm fixed focus,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

V430-F300W03M-SWP V4305140C 697952 OMRON V430 code reader, 0.3 MP monochrome, wide-angle, 300mm fixed focus,..

V430-F300W03M-SWP

V4305140C

V430F300W03MSWP.1

OMRON

V430 Code Reader, 0.3 MP monochrome, Wide view, Fixed focus 300 mm, White light, 1D/2D decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67

More details


Industrial barcode readers > BarCode Readers and Smart Cameras

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $2,049.33
Unit price: $2,049.33

Quantity Price
1+$2,049.33
2+$2,049.33
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Specifications

Number of pixels0.3 MP
Camera typeMonochrome
Autofocus
Focus distance300-300 mm
Field of view (width)271-271 mm
Decoder typePlus Mode (high-speed 1D+2D)
Frame rate60 fps
IlluminationWhite LED
Image width752 pixels
Image height480 pixels
Shutter typeGlobal
Communication port(s)EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C
Digital output typePNP
Degree of protection (IP)IP65/IP67
Height25.4 mm
Width44.5 mm
Depth56.9 mm
Weight0 g

Accessories

V430-AF11Diffuser Installation Kit for V/F4X0-FXXXXXXX-XXX
V430-AF12Polarizer Installation Kit for V/F4X0-FXXXXXXX-XXX
V430-AF6V/F 4x0-F Standard Red power filter Installation Kit
V430-AF7V/F 4x0-F Standard Blue power filter Installation Kit
V430-ALBV/F 4x0-F Blue Standard Light Installation Kit
V430-ALIV/F 4x0-F IR Standard Light Installation Kit
V430-ALRV/F 4x0-F Red Standard Light Installation Kit
V430-ALWV/F 4x0-F White Standard Light Installation Kit
V430-AM0V/F 4x0-F L Bracket Adjustable Angle Mounting Kit
V430-AM1V/F 4x0-F 1/4-20 Camera Mounting Block Kit
V430-AM2V/F 4x0-F 4” (102 mm) Ram Mount Stand
V430-AM3V/F 4x0-F APG Pan and Tilt Camera Mount
V430-AM4V/F 4x0-F Nylon Screw and Washer Electrical Isolation Mounting Kit
V430-AM5V/F 4x0-F MS-4 / MINI to V/F4XX-F Adapter Plate
V430-AM6V/F 4x0-F Smart Ring Light to V/F4XX-F Mounting Bracket
V430-AM7V/F 4x0-F QX / Vision HAWK to V/F4XX-F Adapter Plate

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG OMRON EN.pdf 24 Mbytes
V430-F300W03M-SWP 697952 V4305140C EN_V430-F000M12M-SRX.pdf 7 Mbytes V430-F300W03M-SWP 697952 V4305140C EN_V430-F000M12M-SRX.pdf
