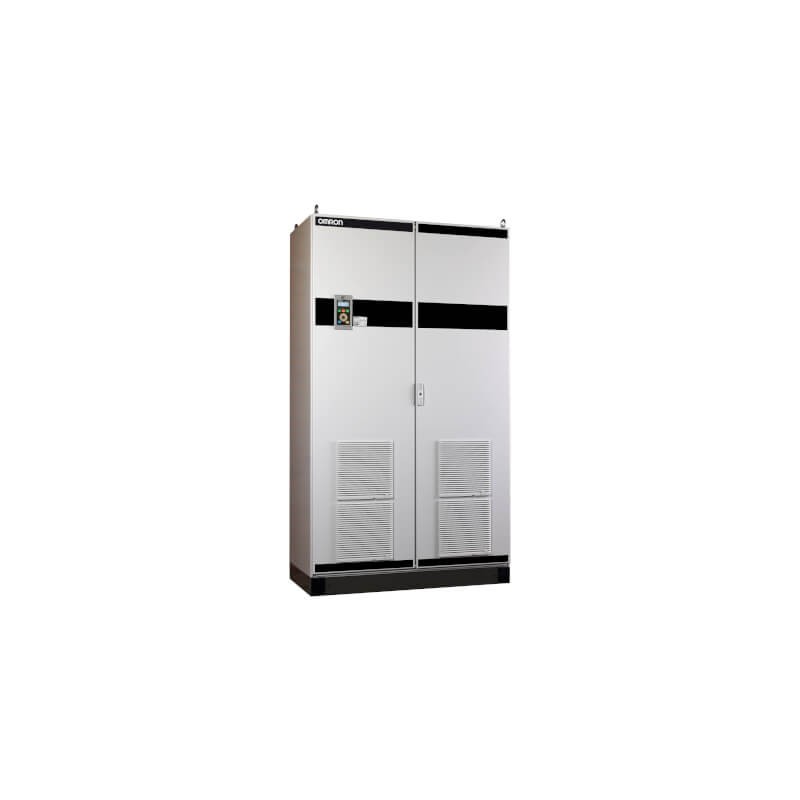

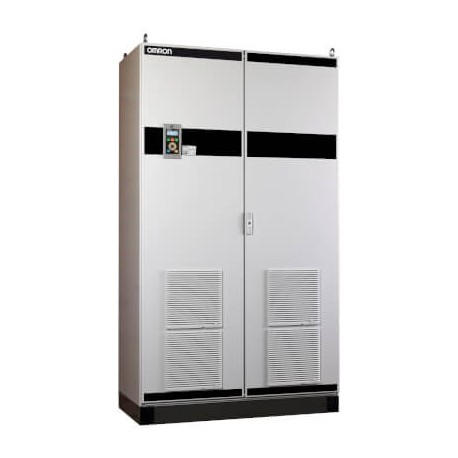

SX-D4355-E1FA4 AA055779E SXD4355E1FA4 OMRON SX Three-Phase 400VAC (650/520)Amp (355Kw/315Kw) Vector IP54
SX-D4355-E1FA4
AA055779E
SXD4355E1FA4
OMRON
SX Three-Phase 400VAC (650/520)Amp (355Kw/315Kw) Vector IP54
SX inverter IP54, 355 kW, 3~ 400 VAC, direct torque control, built-in filter, max. output freq. 400 Hz
Low-voltage industrial components > Frequency converter less than 1 kV
Frequency inverters > SX
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Mains frequency (EF006783) | 50/60 Hz |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP54 |
| Number of phases input (EF007117) | 3 |
| Number of phases output (EF006998) | 3 |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFIBUS (EF003052) | Yes |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Application in industrial area permitted (EF007294) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for DeviceNet (EF003059) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Integrated breaking resistance (EF007293) | No |
| Number of analogue inputs (EF001994) | 4 |
| Max. output frequency (EF007350) | 400 Hz |
| Number of HW-interfaces other (EF003027) | 3 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of digital outputs (EF001993) | 5 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Max. output at linear load at rated output voltage (EF007364) | 315 kW |
| Number of analogue outputs (EF001995) | 2 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Max. output at quadratic load at rated output voltage (EF007366) | 355 kW |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Nominal output current I2N (EF009561) | 650 A |
| Number of digital inputs (EF001992) | 8 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Max. output voltage (EF009560) | 480 V |
| Mains voltage (EF006780) | 230 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| SX-D4355-E1FA4 SXD4355E1FA4 AA055779E EN_SX-D4355-E1FA4.pdf | 834 Kbytes |
|
