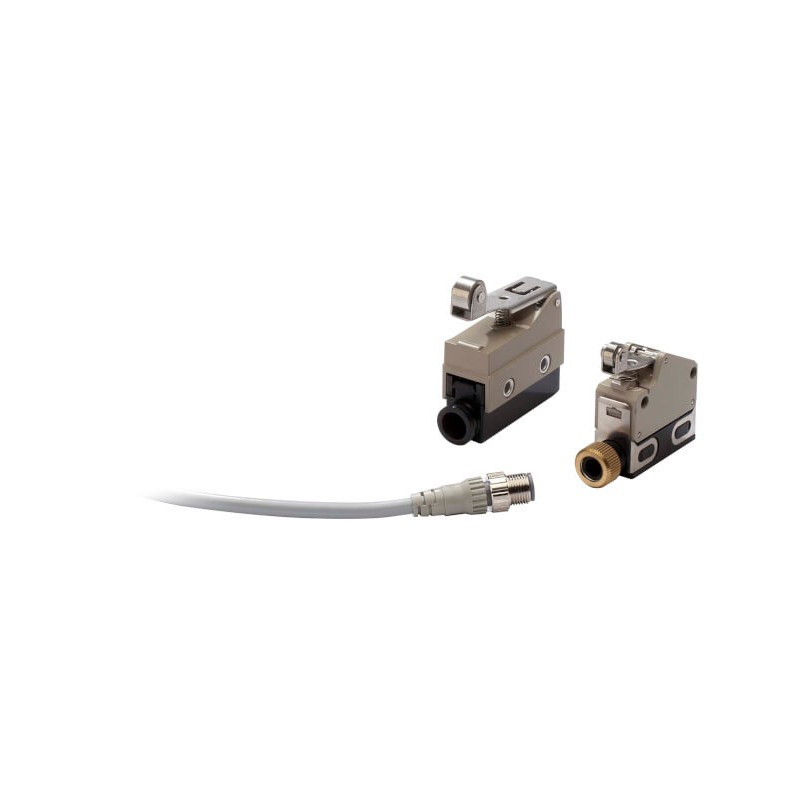

SHL-W355 SHLN3005A SHLW355 OMRON Short lever arm unidirecional IP67 Miniature
SHL-W355
SHLN3005A
SHLW355
OMRON
5
Short lever arm unidirecional IP67 Miniature
Ip67 Miniature Single Roller Short Lever
Enclosed switch, one-way action short hinge roller lever, SPDT, 10A
Sensors > End switch
Industrial Limit switches / Pushbuttons > SHL
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Limit switches with alternative connection and wiring
Extending the standard and compact limit switches the D4E, SHL and WL families provide models with pre-wired connectors (pigtails), terminal blocks with alternative conduit sizes (PG13.5, G1/2, 1/2“14NPT), soldering contacts, screw on conduit covers and optional cable breakage protection.
Contact your Omron representative for support in selecting the fitting model.
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Roller cam straight |
| Type of control element (EF006976) | Roller lever |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Other |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Quick-break switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Forced opening (EF006694) | No |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 2 A |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 2 A |
| Width sensor (EF007094) | 45.6 mm |
| Height of sensor (EF007283) | 61.4 mm |
| Length of sensor (EF007334) | 17.5 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| SHL-W355 SHLW355 SHLN3005A ES_SHL-W255.pdf | 1 Mbytes |
|
| SHL-W355 SHLW355 SHLN3005A shl_enclosed_switch_datasheet_en.pdf | 1 Mbytes |
|
