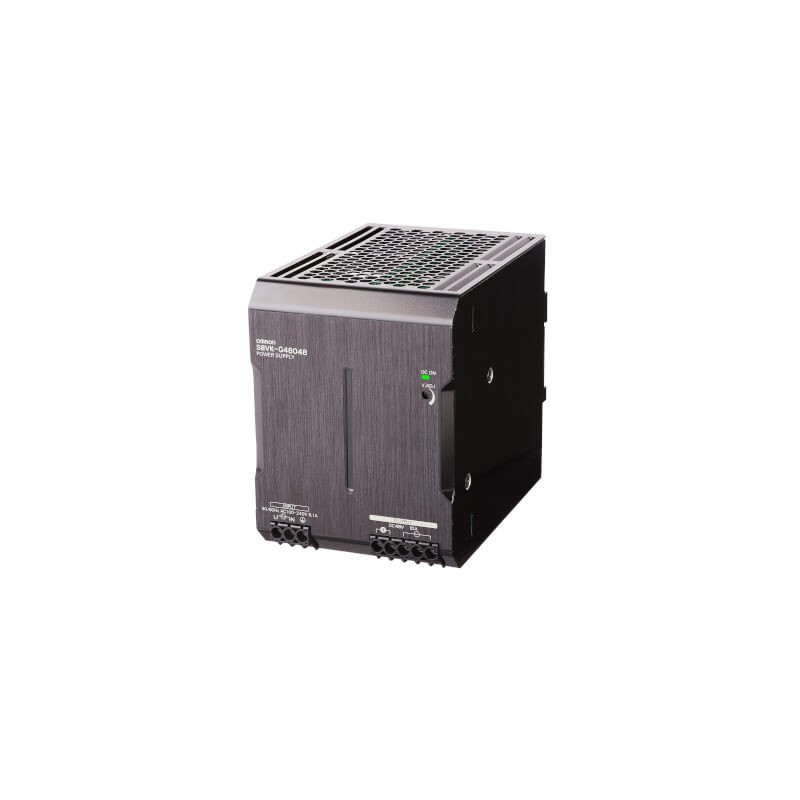

S8VK-G48048-400 S8VK1212M S8VKG48048400 OMRON Power supply 480W/48V/10A DIN-rail uses tropicalized
S8VK-G48048-400
S8VK1212M
S8VKG48048400
OMRON
Power supply 480W/48V/10A DIN-rail uses tropicalized
480W/48V/10A Tropicalized DIN Rail Power Supply
Coated version, Book type power supply, Pro, Single-phase, 480 W, 48VDC, 10A, DIN rail mounting
Low-voltage industrial components > DC-power supply
Power supplies > S8VK-G
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Wide operating temperature range (-40 to +70ºC) to guarantee operation stability
- Double set of DC output terminals (three for the negative) to provide easy wiring
- High efficiency (90%) to reduce energy consumption
- Power Boost functionality (120%)
- Improved DIN-rail mounting clip to provide better vibration resistance and allow for easy installation
Accessories
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | AC |
| Wall mounting possible (EF003973) | No |
| Stabilized (EF005302) | No |
| Output voltage stabilized (EF003092) | No |
| Secondary voltage adjustable (EF007002) | Yes |
| Direct mounting possible (EF005689) | No |
| Suitable for safety functions (EF001597) | No |
| Short-circuit-proof (EF007332) | No |
| Modular version (EF001126) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Power consumption (EF000346) | 529 VA |
| Max. output current 1 (EF008284) | 20 A |
| Built-in height (EF000332) | 135 mm |
| Built-in width (EF000846) | 95 mm |
| Width in number of modular spacings (EF002950) | 1 |
| Nominal value output voltage 1 (EF009393) | 48 V |
| Width (EF000008) | 95 mm |
| Height (EF000040) | 125 mm |
| Power output (EF003034) | 480 W |
| Nominal value output current 1 (EF009396) | 10 A |
| Depth (EF000049) | 140 mm |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| Rated supply voltage DC (EF007078) | 90 V |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| 1st secondary output voltage (EF006792) | 43.2 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| S8VK-G48048-400 S8VKG48048400 S8VK1212M EN_S8VK-G01505.pdf | 7 Mbytes |
|
| S8VK-G48048-400 S8VKG48048400 S8VK1212M t056_s8vk_g_switch_mode_power_supply_datasheet_en.pdf | 4 Mbytes |
|
