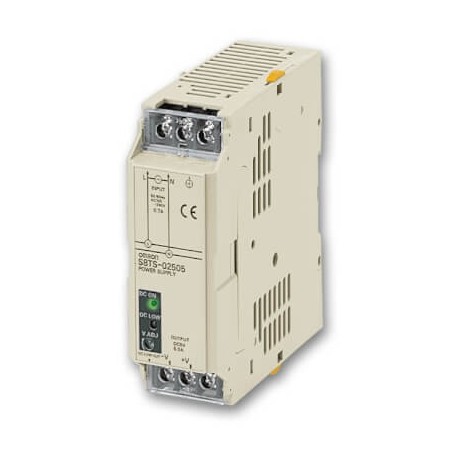

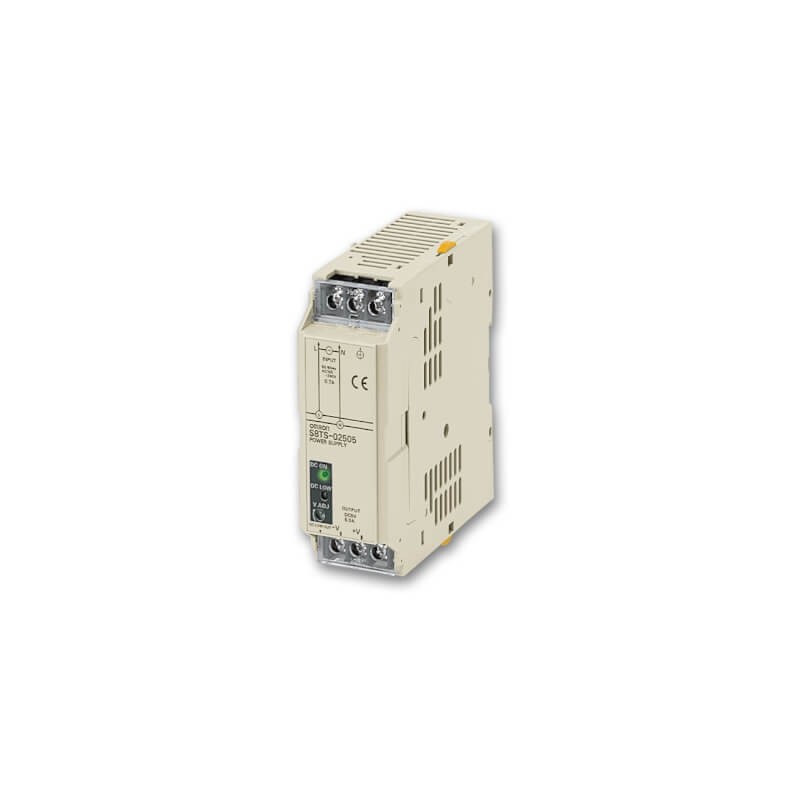

S8TS-03012 S8TS0022A S8TS03012.1 OMRON 30W / 12V / 2.5 A Term. screw Connectors on Bus
S8TS-03012
S8TS0022A
S8TS03012.1
OMRON
30W / 12V / 2.5 A Term. screw Connectors on Bus
30W/12V/2.5A term. Screw without bus connectors
Power supply, 100-240 VAC input, 30W 12 VDC 2.5A output, DIN rail mounting, screw terminals, modular PSU for multiple configurations, without bus line connector
Power supplies > S8TS
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type | Modular |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 30 W |
| Efficiency | 70 % |
| Output voltage | 12 V |
| Rated output current | 2.5 A |
| Temperature range | -25-65 °C |
| Features | UL class 2 |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | - |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
Accessories
| S8T-BUS01 | Bus line connector for parallel operation with 12 & 24 VDC units, order as spares only (one supplied with 12 & 24 VDC units) | |
| S8T-BUS02 | Bus line connector for isolated operation with 5, 12 & 24 VDC units, order for 5 VDC units only, order as spares only for 12 & 24 VDC units (one supplied) | |
| S8T-BUS11 | Bus line connector for parallel operation with 12 & 24 VDC units, order as spares only, (pack of 10) | |
| S8T-BUS12 | Bus line connector for isolated operation with 5, 12 & 24 VDC units, order for 5 VDC units only, order as spares only for 12 & 24 VDC units (pack of 10) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| S8TS-03012 S8TS03012.1 S8TS0022A EN_S8TS-03012-E1.pdf | 560 Kbytes |
|
| S8TS-03012 S8TS03012.1 S8TS0022A t022_s8ts_switch_mode_power_supply_datasheet_en.pdf | 560 Kbytes |
|
