S8FS-G01524C-400 S8FS2806B S8FSG01524C400 OMRON Power supply, 15 W, 100 to 240 VAC input, 24 VDC, 0.65 A out..
S8FS-G01524C-400
S8FS2806B
S8FSG01524C400
OMRON

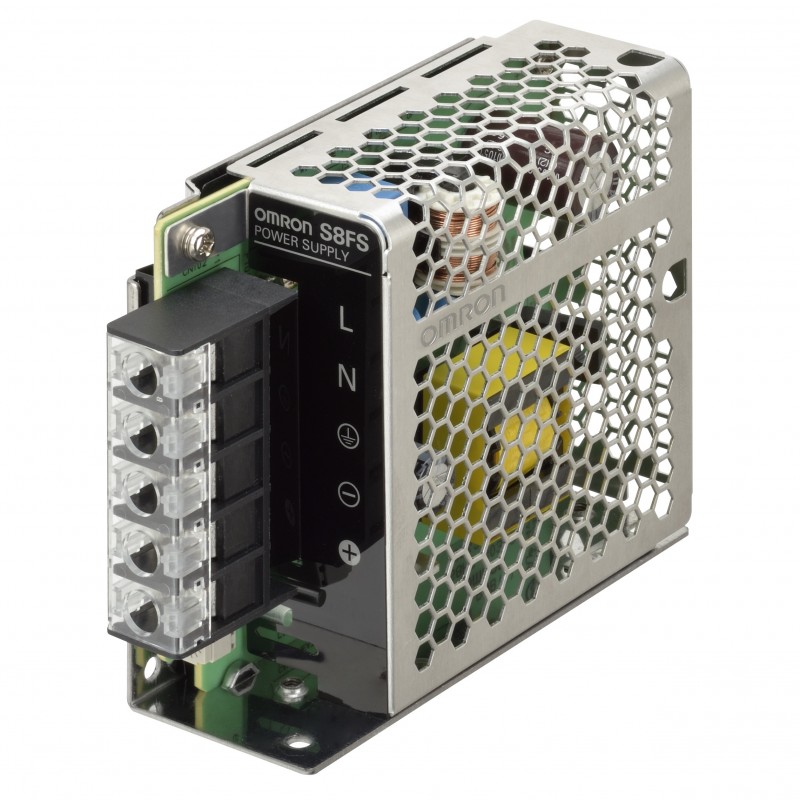

Power supply, 15 W, 100 to 240 VAC input, 24 VDC, 0.65 A output, direct mounting, coated version
Low-voltage industrial components > DC-power supply
Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Superior basic performance that ensures reliability Ambient temperatures up to 70°C, greater resistance to rusting with aluminum/stainless steel case, and applications at altitudes up to 3,000 m.
- Certification for Global Standards
- North America: UL 508 (Listing), CSA C22.2
- Europe: Overvoltage category III (EN 50178)
- EMI: Class B (EN 61204-3)
- No need for control circuit transformers for which the Machinery Directive is specified. (IEC 61558-2-16)
- Greater usability - The terminal cover prevents screws from dropping out and the front cover prevents ingress of foreign matter.
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Wall mounting possible (EF003973) | Yes |
| Stabilized (EF005302) | No |
| Secondary voltage adjustable (EF007002) | Yes |
| Direct mounting possible (EF005689) | Yes |
| Suitable for safety functions (EF001597) | No |
| Short-circuit-proof (EF007332) | Yes |
| Modular version (EF001126) | No |
| Suitable for rail mounting (EF003972) | No |
| Max. output current 1 (EF008284) | 0.65 A |
| Built-in height (EF000332) | 82 mm |
| Width in number of modular spacings (EF002950) | 2.20 |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 82 mm |
| Power output (EF003034) | 15 W |
| Depth (EF000049) | 99 mm |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| Rated supply voltage DC (EF007078) | 120 V |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| 1st secondary output voltage (EF006792) | 21.6 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| S8FS-G01524C-400 S8FSG01524C400 S8FS2806B ES_S8FS-G60024C.pdf | 7 Mbytes |
|
| S8FS-G01524C-400 S8FSG01524C400 S8FS2806B t207_s8fs_g_switch_mode_power_supply_datasheet_en.pdf | 7 Mbytes |
|
