S8FS-C20005 S8FS0035D S8FSC20005 OMRON F. power supply, metal enclosure, 200W, 5VDC, 40A, front Connection, ..
S8FS-C20005
S8FS0035D
S8FSC20005
OMRON

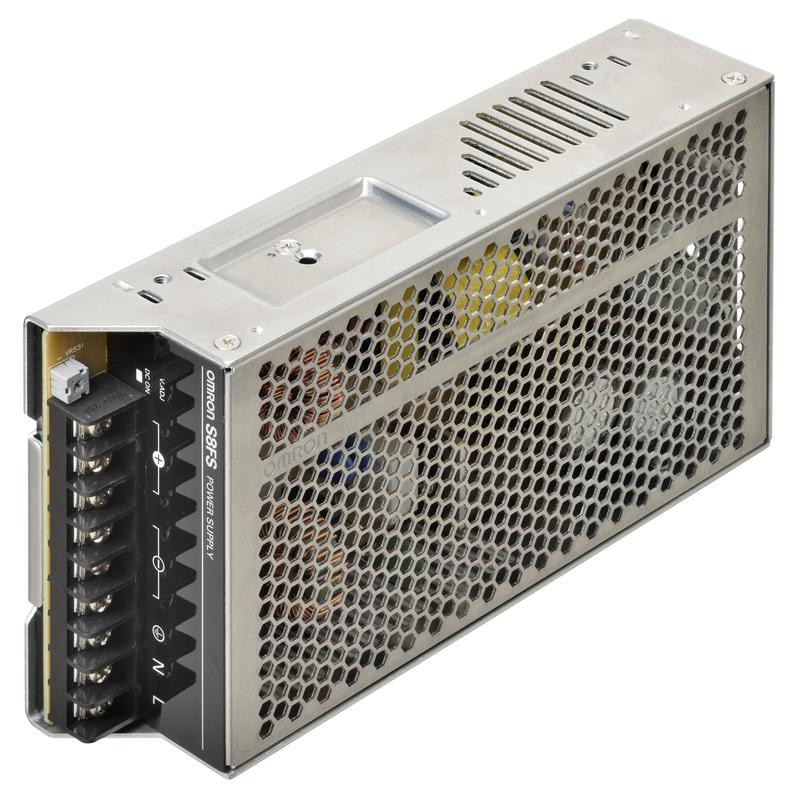

F. power supply, metal enclosure, 200W, 5VDC, 40A, front Connection, LITE
F. power supply, metal housing, 200W, 5VDC, 40A, Front connection, LITE
Power supply, 200 W, 100-240 VAC input, 5 VDC, 40 A output, Upper terminal
Low-voltage industrial components > DC-power supply
Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Wide range in wattage (15, 25, 35, 50, 75, 100, 150, 200, 350 W) and DC-output voltage (5, 12, 15, 24, 36 or 48 VDC)
- Wide input ranges: 100 to 120 VAC and 200 to 240 VAC
- Overload, over-voltage and short circuit protection
- Easy mounting to DIN-rail with mounting brackets (sold separately)
- Global standards: Conforms to CE (all models), approved for UL (all models) and CCC (15 to 150 W models)
- EMI EN 55011 Class B compliant (15 to 150 W models)
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP00 |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Wall mounting possible (EF003973) | Yes |
| Stabilized (EF005302) | No |
| Output voltage stabilized (EF003092) | No |
| Secondary voltage adjustable (EF007002) | Yes |
| Direct mounting possible (EF005689) | Yes |
| Suitable for safety functions (EF001597) | No |
| Short-circuit-proof (EF007332) | Yes |
| Modular version (EF001126) | No |
| Suitable for rail mounting (EF003972) | No |
| Power consumption (EF000346) | 529 VA |
| Max. output current 1 (EF008284) | 40 A |
| Built-in height (EF000332) | 112.5 mm |
| Built-in width (EF000846) | 212 mm |
| Width in number of modular spacings (EF002950) | 20 |
| Nominal value output voltage 1 (EF009393) | 5 V |
| Width (EF000008) | 212 mm |
| Height (EF000040) | 112.5 mm |
| Power output (EF003034) | 200 W |
| Nominal value output current 1 (EF009396) | 40 A |
| Depth (EF000049) | 50 mm |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| Rated supply voltage DC (EF007078) | 254 V |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| 1st secondary output voltage (EF006792) | 4.5 V |
