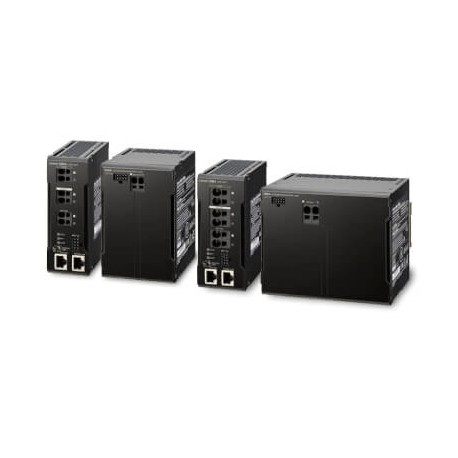

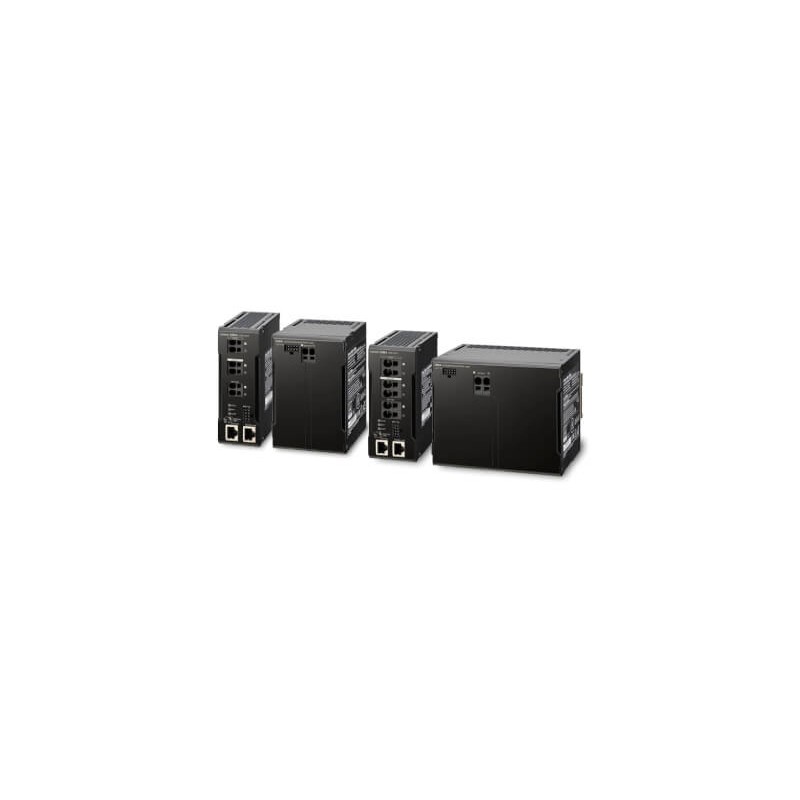

S8BA-24D24D960SBF BU 1674E S8BA24D24D960SBF OMRON UPS, DIN rail, with individual battery, dc-DC, 40 A, 960 W
S8BA-24D24D960SBF
BU 1674E
S8BA24D24D960SBF
OMRON
UPS, DIN rail, with individual battery, dc-DC, 40 A, 960 W
UPS, DIN rail type, Separated battery type, DC-DC, 40 A, 960 W
Data and telecommunication > UPS
UPS > S8BA
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Input connection (EF009726) | Fixed connection |
| USV- technology (EF005380) | Offline |
| Auto shut down function (EF009276) | Yes |
| USB interface (EF002039) | Yes |
| SNMP (EF005284) | No |
| Potential free switch contact (EF003626) | Yes |
| With communication interface RS-232 (EF007312) | No |
| Suitable for network-management (EF000432) | No |
| Modular (EF007977) | Yes |
| Overall efficiency (EF009406) | 94 % |
| Output power factor (EF009405) | 1 |
| Number of phases primary (EF009275) | 0 |
| Width (EF000008) | 52 mm |
| Bridging time full load (EF000428) | 6 min |
| Max. voltage distortion output (linear load) (EF009404) | 10 % |
| Number of phases secondary (EF009274) | 0 |
| Weight (EF000167) | 0.7 kg |
| Height (EF000040) | 124 mm |
| Number of output connections with protective contact CEE 7/3 (type F) (EF009729) | 0 |
| Number of output connections C13 (EF009727) | 0 |
| Output effective power (EF009897) | 960 W |
| Number of output connections fixed connection (EF009730) | 1 |
| Efficiency in eco-mode (EF009407) | 94 % |
| Depth (EF000049) | 111.4 mm |
| Number of output connections C19 (EF009728) | 0 |
| Input voltage (EF003840) | 23 V |
| Output voltage (EF003933) | 21 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| S8BA-24D24D960SBF S8BA24D24D960SBF BU 1674E s8ba_brochure_en.pdf | 3 Mbytes |
|
