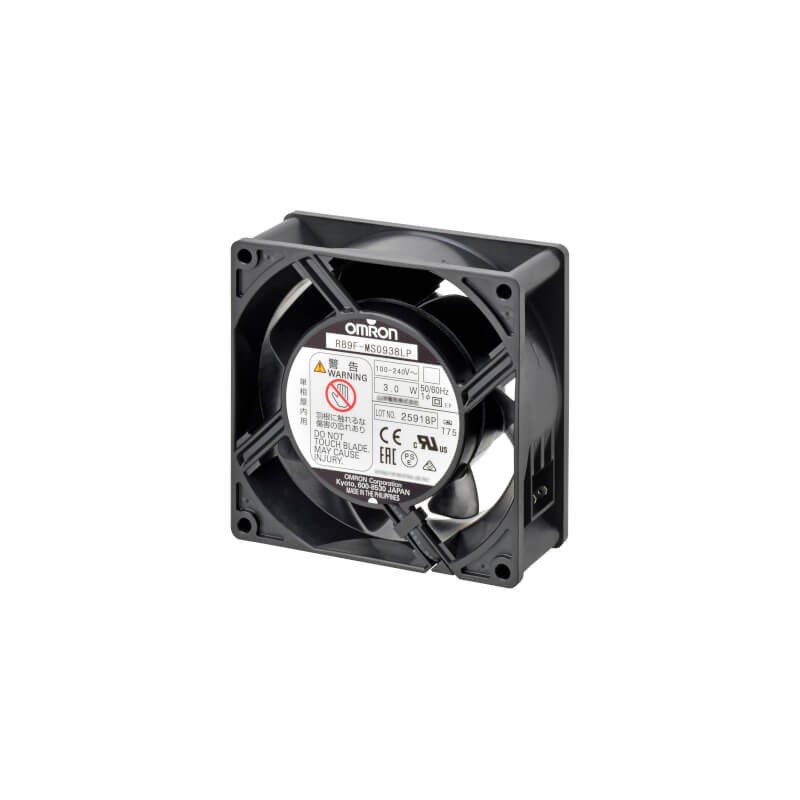

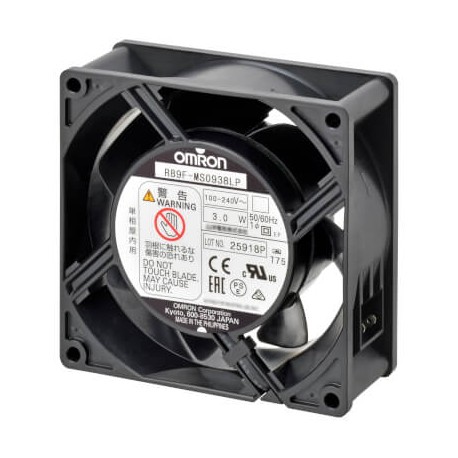

R89F-MS0938LP R89F0010R R89FMS0938LP OMRON AC Axial fan, plastic blade, frame 92x38, low speed, terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

R89F-MS0938LP R89F0010R R89FMS0938LP OMRON AC Axial fan, plastic blade, frame 92x38, low speed, terminals

R89F-MS0938LP

R89F0010R

R89FMS0938LP

OMRON

AC Axial fan, plastic blade, frame 92x38, low speed, terminals

More details


Cabinet enclosures > Ventilator (switchgear cabinet)

Power supplies > Fan

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $109.74
Unit price: $109.74
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Size92 x 92 x 38 mmOperating voltage at AC 50 Hz90-264 VRated current0.06 ARated power3.0 VARated rotational speed3100 r/minMaximum flow rate1.18 m³/minMaximum static pressure56 PaNoise emission33 dB(A)Set contentFan only
ETIM for 686245 Cabinets and enclosures (EC000320)
Feature Name Feature Value
Voltage type (EF000187) AC
Mounting method (EF000003) Screw mounting
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) Other
Colour (EF000007) Black
Air circulator (EF007516) No
Suitable for wall built-in (EF007536) No
EMC-version (EF001062) No
With protective cover (EF005500) No
Roof ventilator (EF007099) No
With filter (EF006013) No
Suitable for 19 inch rack mounting (EF000337) No
Built as slide-in ventilator (EF007126) No
RAL-number (EF000116) 9005
Rated power (EF007051) 3.0 W
Width (EF000008) 92 mm
Volume flow, freeblowing (EF007173) 70.8 m³/h
Height (EF000040) 92 mm
Noise emission (EF007829) 33 dB(A)
Depth (EF000049) 38 mm
Number of fans (EF000928) 1
Operating voltage AC 50 Hz (EF008206) 90 V
Operating voltage AC 60 Hz (EF008207) 100 V

Datasheet - PDF
