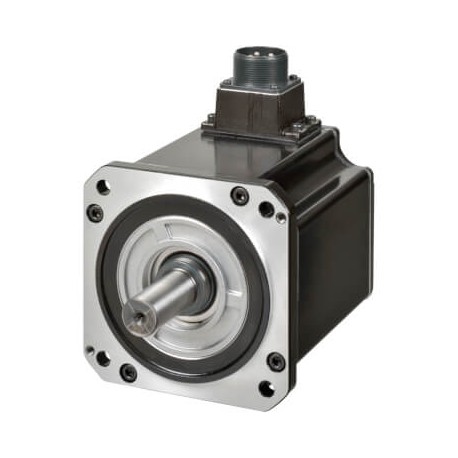

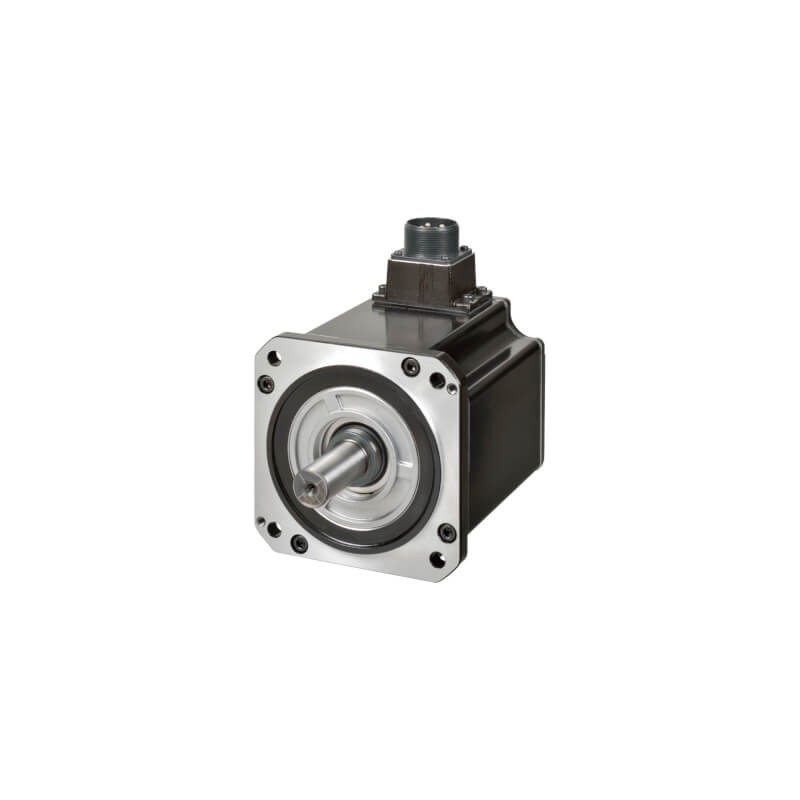

R88M-1M2K020C-S2 R8M11157F R88M1M2K020CS2Q OMRON 1S AC servo motor, 2 kW, 400 VAC, 2000 rpm, 9.55 Nm, absolu..
R88M-1M2K020C-S2
R8M11157F
R88M1M2K020CS2Q
OMRON
1S AC servo motor, 2 kW, 400 VAC, 2000 rpm, 9.55 Nm, absolute encoder
Gate operators, pumps and ventilators > Electric motor
Mechatronics-2
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | AC |
| Degree of protection (NEMA) (EF011959) | Other |
| Insulation class according to IEC (EF023092) | F |
| Bearing (EF023012) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Model (EF000010) | Other |
| Cooling method (EF009254) | Air |
| Vacuum pressure impregnation (VPI) (EF009256) | None |
| Shaft end type (EF009255) | Key |
| Duty cycle (EF008908) | S1 |
| Intrinsic safety (IS) (EF009252) | None |
| Motor efficiency class (EF014979) | Other |
| Construction type (EF000767) | IM 3001 (B5) |
| With positive temperature coefficient resistor (PTC) (EF009250) | No |
| With resistance temperature detector (RTD) (EF009251) | No |
| With anti-condensation (EF024474) | No |
| Suitable for frequency control (EF022077) | No |
| Overload capability (EF009253) | No |
| Rated voltage (EF000228) | 400 V |
| Rated current (EF000227) | 5.7 A |
| Frame size according to IEC (EF009243) | 130 mm |
| Nominal torque (EF025725) | 9.55 Nm |
| Rated rotational speed at rated frequency (EF003974) | 2000 1/min |
| Number of phases (EF000351) | 3 |
| Rated performance at rated frequency (EF003976) | 2 kW |
| Rated frequency (EF001663) | 50 Hz |
| Operating temperature (EF002393) | 0 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| R88M-1M2K020C-S2 R88M1M2K020CS2Q R8M11157F EN_R88M-1M2K020C-S2.pdf | 2 Mbytes |
|
