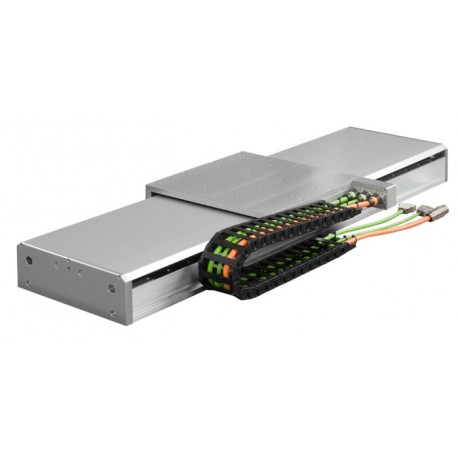

R88A-CAWL010S-DE AA010686F R88ACAWL010SDE OMRON Cable-power linear motor 400V bobina320/380 10m
R88A-CAWL010S-DE
AA010686F
R88ACAWL010SDE
OMRON
Cable-power linear motor 400V bobina320/380 10m
Linear motor power cable 400V coil320/380 10m
Low-voltage industrial components > Accessories/spare parts for electronic motor control and protection device
Servo drives > Accessories Servos
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Low moving mass to ensure a high degree of dynamism
- Optimized stroke/product length ratio
- Up to 5 m/s maximum speed with 1 um repeatability
- Compact and efficiency oriented design
- Highly versatile and ready-to-use
- Ratings: 230/400 VAC, 48 to 760 N (2000 N peak force)
Specifications & ordering info
Ordering information
Note:
The symbols①②③…show the recommended sequence to select the servomotor, cables andserial converter for a linear motors system.
Linearmotor axis
230 VAC single phase/400 VAC threephase
| Symbol | Specifications | ②Linear servo drive | Order code 2 For effectivestroke distances available see dimensions section | ||
|---|---|---|---|---|---|
| Accurax G5 EtherCAT | |||||
| Rated force | Peak force | 230 V | 400 V | ||
| ① | 48 N | 120 N | R88D-KN02H-ECT-L | R88D-KN06F-ECT-L | R88L-EA-AF-0303-⬜⬜⬜⬜-0005 |
| 96 N | 240 N | R88D-KN04H-ECT-L | R88D-KN10F-ECT-L | R88L-EA-AF-0306-⬜⬜⬜⬜-0005 | |
| 160 N | 450 N | R88D-KN08H-ECT-L | R88D-KN15F-ECT-L | R88L-EA-AF-0606-⬜⬜⬜⬜-0005 | |
| 240 N | 675 N | R88D-KN10H-ECT-L | R88D-KN20F-ECT-L | R88L-EA-AF-0609-⬜⬜⬜⬜-0005 | |
| 320 N | 900 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-0612-⬜⬜⬜⬜-0005 | |
| 608 N | 1800 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-1112-⬜⬜⬜⬜-0005 | |
| 760 N | 2250 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-1115-⬜⬜⬜⬜-0005 | |
Servo drive
② Referto Accurax G5 servo drive chapter for detailed drive specificationsand selection of drive accessories.
Encodercable
| Symbol | Appearance | Specifications | Order code | |
|---|---|---|---|---|
| ③ |  | Encoder cable for linear motor axis (Connectors R88A-CNK41L and DB-15) | 1.5 m | R88A-CRKN001-5CR-E |
| 3 m | R88A-CRKN003CR-E | |||
| 5 m | R88A-CRKN005CR-E | |||
| 10 m | R88A-CRKN010CR-E | |||
| 15 m | R88A-CRKN015CR-E | |||
| 20 m | R88A-CRKN020CR-E | |||
Power cable
| Symbol | Appearance | Specifications | Order code | |
|---|---|---|---|---|
| ④ |  | For linear motor axis R88L-EA-AF-0303-_ R88L-EA-AF-0306-_ | 1.5 m | R88A-CAWK001-5S-DE |
| 3 m | R88A-CAWK003S-DE | |||
| 5 m | R88A-CAWK005S-DE | |||
| 10 m | R88A-CAWK010S-DE | |||
| 15 m | R88A-CAWK015S-DE | |||
| 20 m | R88A-CAWK020S-DE | |||
| For linear motor axis R88L-EA-AF-0606-_ R88L-EA-AF-0609-_ R88L-EA-AF-0612-_ R88L-EA-AF-1112-_ R88L-EA-AF-1115-_ | 1.5 m | R88A-CAWL001-5S-DE | ||
| 3 m | R88A-CAWL003S-DE | |||
| 5 m | R88A-CAWL005S-DE | |||
| 10 m | R88A-CAWL010S-DE | |||
| 15 m | R88A-CAWL015S-DE | |||
| 20 m | R88A-CAWL020S-DE | |||
Accessories for linearmotor models with optional encoders (non-standard encoder)
Serialconverter unit
| Specifications | Order code |
|---|---|
| Serial converter unit from 1 Vpp to G5 serialdata transmission (with KTY sensor detection of iron-core motorcoil) | R88A-SC01K-E |
| Serial converter unit from 1 Vpp to G5 serialdata transmission (with NTC sensor detection of ironless motor coil) | R88A-SC02K-E |
Note:
If no temperature sensor is needed, thenit does not matter which converter you use.
Linearencoder cable to serial converter
| Appearance | Specifications | Order code | |
|---|---|---|---|
 | Extension cable from linear encoder to -serial converter. (Connector DB-15) (This extension cable is optional) | 1.5 m | R88A-CFKA001-5CR-E |
| 3 m | R88A-CFKA003CR-E | ||
| 5 m | R88A-CFKA005CR-E | ||
| 10 m | R88A-CFKA010CR-E | ||
| 15 m | R88A-CFKA015CR-E | ||
Hall and temperaturesensors cable to serial converter
| Appearance | Specifications | Order code | |
|---|---|---|---|
 | Extension cable from hall and temperature sensors to serial converter. (Connector DB-9) (This extension cable is optional) | 1.5 m | R88A-CFKB001-5CR-E |
| 3 m | R88A-CFKB003CR-E | ||
| 5 m | R88A-CFKB005CR-E | ||
| 10 m | R88A-CFKB010CR-E | ||
| 15 m | R88A-CFKB015CR-E | ||
Connectors
| Specification | Order code |
|---|---|
| Accurax G5 servo drive encoder connector (forCN4) | R88A-CNK41L |
| Hypertac power cable connector IP67 | LPRA-06B-FRBN170 |
Dimensions
R88L-EA-AF-0303-_(230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0303-0110-0005 | 110 | 312 | 2 | 6 | 3.1 | 9.5 |
| R88L-EA-AF-0303-0206-0005 | 206 | 408 | 3 | 8 | 3.1 | 10.9 |
| R88L-EA-AF-0303-0302-0005 | 302 | 504 | 4 | 10 | 3.1 | 12.4 |
| R88L-EA-AF-0303-0398-0005 | 398 | 600 | 5 | 12 | 3.1 | 13.8 |
| R88L-EA-AF-0303-0494-0005 | 494 | 696 | 6 | 14 | 3.1 | 15.2 |
| R88L-EA-AF-0303-0590-0005 | 590 | 792 | 7 | 16 | 3.1 | 16.7 |
| R88L-EA-AF-0303-0686-0005 | 686 | 888 | 8 | 18 | 3.1 | 18.1 |
| R88L-EA-AF-0303-0782-0005 | 782 | 984 | 9 | 20 | 3.1 | 19.6 |
| R88L-EA-AF-0303-0878-0005 | 878 | 1080 | 10 | 22 | 3.1 | 21.0 |
| R88L-EA-AF-0303-0974-0005 | 974 | 1176 | 11 | 24 | 3.1 | 22.5 |
| R88L-EA-AF-0303-1070-0005 | 1070 | 1272 | 12 | 26 | 3.1 | 23.9 |
| R88L-EA-AF-0303-1166-0005 | 1166 | 1368 | 13 | 28 | 3.1 | 25.4 |
| R88L-EA-AF-0303-1262-0005 | 1262 | 1464 | 14 | 30 | 3.1 | 26.8 |
| R88L-EA-AF-0303-1358-0005 | 1358 | 1560 | 15 | 32 | 3.1 | 28.2 |
| R88L-EA-AF-0303-1454-0005 | 1454 | 1656 | 16 | 34 | 3.1 | 29.7 |
| R88L-EA-AF-0303-1550-0005 | 1550 | 1752 | 17 | 36 | 3.1 | 31.1 |
| R88L-EA-AF-0303-1646-0005 | 1646 | 1848 | 18 | 38 | 3.1 | 32.6 |
| R88L-EA-AF-0303-1742-0005 | 1742 | 1944 | 19 | 40 | 3.1 | 34.0 |
| R88L-EA-AF-0303-1838-0005 | 1838 | 2040 | 20 | 42 | 3.1 | 35.5 |
| R88L-EA-AF-0303-1934-0005 | 1934 | 2136 | 21 | 44 | 3.1 | 36.9 |
| R88L-EA-AF-0303-2030-0005 | 2030 | 2232 | 22 | 46 | 3.1 | 38.3 |
| R88L-EA-AF-0303-2126-0005 | 2126 | 2328 | 23 | 48 | 3.1 | 39.8 |
R88L-EA-AF-0306-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0306-0158-0005 | 158 | 408 | 3 | 8 | 3.9 | 11.6 |
| R88L-EA-AF-0306-0254-0005 | 254 | 504 | 4 | 10 | 3.9 | 13.1 |
| R88L-EA-AF-0306-0350-0005 | 350 | 600 | 5 | 12 | 3.9 | 14.5 |
| R88L-EA-AF-0306-0446-0005 | 446 | 696 | 6 | 14 | 3.9 | 15.9 |
| R88L-EA-AF-0306-0542-0005 | 542 | 792 | 7 | 16 | 3.9 | 17.4 |
| R88L-EA-AF-0306-0638-0005 | 638 | 888 | 8 | 18 | 3.9 | 18.8 |
| R88L-EA-AF-0306-0734-0005 | 734 | 984 | 9 | 20 | 3.9 | 20.3 |
| R88L-EA-AF-0306-0830-0005 | 830 | 1080 | 10 | 22 | 3.9 | 21.7 |
| R88L-EA-AF-0306-0926-0005 | 926 | 1176 | 11 | 24 | 3.9 | 23.2 |
| R88L-EA-AF-0306-1022-0005 | 1022 | 1272 | 12 | 26 | 3.9 | 24.6 |
| R88L-EA-AF-0306-1118-0005 | 1118 | 1368 | 13 | 28 | 3.9 | 26.1 |
| R88L-EA-AF-0306-1214-0005 | 1214 | 1464 | 14 | 30 | 3.9 | 27.5 |
| R88L-EA-AF-0306-1310-0005 | 1310 | 1560 | 15 | 32 | 3.9 | 28.9 |
| R88L-EA-AF-0306-1406-0005 | 1406 | 1656 | 16 | 34 | 3.9 | 30.4 |
| R88L-EA-AF-0306-1502-0005 | 1502 | 1752 | 17 | 36 | 3.9 | 31.8 |
| R88L-EA-AF-0306-1598-0005 | 1598 | 1848 | 18 | 38 | 3.9 | 33.3 |
| R88L-EA-AF-0306-1694-0005 | 1694 | 1944 | 19 | 40 | 3.9 | 34.7 |
| R88L-EA-AF-0306-1790-0005 | 1790 | 2040 | 20 | 42 | 3.9 | 36.2 |
| R88L-EA-AF-0306-1886-0005 | 1886 | 2136 | 21 | 44 | 3.9 | 37.6 |
| R88L-EA-AF-0306-1982-0005 | 1982 | 2232 | 22 | 46 | 3.9 | 39.0 |
| R88L-EA-AF-0306-2078-0005 | 2078 | 2328 | 23 | 48 | 3.9 | 40.5 |
R88L-EA-AF-0606-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0606-0110-0005 | 110 | 360 | 3 | 8 | 5.4 | 14.1 |
| R88L-EA-AF-0606-0206-0005 | 206 | 456 | 4 | 10 | 5.4 | 15.9 |
| R88L-EA-AF-0606-0302-0005 | 302 | 552 | 5 | 12 | 5.4 | 17.6 |
| R88L-EA-AF-0606-0398-0005 | 398 | 648 | 6 | 14 | 5.4 | 19.3 |
| R88L-EA-AF-0606-0494-0005 | 494 | 744 | 7 | 16 | 5.4 | 21.0 |
| R88L-EA-AF-0606-0590-0005 | 590 | 840 | 8 | 18 | 5.4 | 22.8 |
| R88L-EA-AF-0606-0686-0005 | 686 | 936 | 9 | 20 | 5.4 | 24.5 |
| R88L-EA-AF-0606-0782-0005 | 782 | 1032 | 10 | 22 | 5.4 | 26.2 |
| R88L-EA-AF-0606-0878-0005 | 878 | 1128 | 11 | 24 | 5.4 | 28.0 |
| R88L-EA-AF-0606-0974-0005 | 974 | 1224 | 12 | 26 | 5.4 | 29.7 |
| R88L-EA-AF-0606-1070-0005 | 1070 | 1320 | 13 | 28 | 5.4 | 31.4 |
| R88L-EA-AF-0606-1166-0005 | 1166 | 1416 | 14 | 30 | 5.4 | 33.2 |
| R88L-EA-AF-0606-1262-0005 | 1262 | 1512 | 15 | 32 | 5.4 | 34.9 |
| R88L-EA-AF-0606-1358-0005 | 1358 | 1608 | 16 | 34 | 5.4 | 36.6 |
| R88L-EA-AF-0606-1454-0005 | 1454 | 1704 | 17 | 36 | 5.4 | 38.4 |
| R88L-EA-AF-0606-1550-0005 | 1550 | 1800 | 18 | 38 | 5.4 | 40.1 |
| R88L-EA-AF-0606-1646-0005 | 1646 | 1896 | 19 | 40 | 5.4 | 41.8 |
| R88L-EA-AF-0606-1742-0005 | 1742 | 1992 | 20 | 42 | 5.4 | 43.6 |
| R88L-EA-AF-0606-1838-0005 | 1838 | 2088 | 21 | 44 | 5.4 | 45.3 |
| R88L-EA-AF-0606-1934-0005 | 1934 | 2184 | 22 | 46 | 5.4 | 47.0 |
| R88L-EA-AF-0606-2030-0005 | 2030 | 2280 | 23 | 48 | 5.4 | 48.8 |
| R88L-EA-AF-0606-2126-0005 | 2126 | 2376 | 24 | 50 | 5.4 | 50.5 |
R88L-EA-AF-0609-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0609-0158-0005 | 158 | 456 | 4 | 10 | 6.7 | 17.2 |
| R88L-EA-AF-0609-0254-0005 | 254 | 552 | 5 | 12 | 6.7 | 18.9 |
| R88L-EA-AF-0609-0350-0005 | 350 | 648 | 6 | 14 | 6.7 | 20.6 |
| R88L-EA-AF-0609-0446-0005 | 446 | 744 | 7 | 16 | 6.7 | 22.3 |
| R88L-EA-AF-0609-0542-0005 | 542 | 840 | 8 | 18 | 6.7 | 24.1 |
| R88L-EA-AF-0609-0638-0005 | 638 | 936 | 9 | 20 | 6.7 | 25.8 |
| R88L-EA-AF-0609-0734-0005 | 734 | 1032 | 10 | 22 | 6.7 | 27.5 |
| R88L-EA-AF-0609-0830-0005 | 830 | 1128 | 11 | 24 | 6.7 | 29.3 |
| R88L-EA-AF-0609-0926-0005 | 926 | 1224 | 12 | 26 | 6.7 | 31.0 |
| R88L-EA-AF-0609-1022-0005 | 1022 | 1320 | 13 | 28 | 6.7 | 32.7 |
| R88L-EA-AF-0609-1118-0005 | 1118 | 1416 | 14 | 30 | 6.7 | 34.5 |
| R88L-EA-AF-0609-1214-0005 | 1214 | 1512 | 15 | 32 | 6.7 | 36.2 |
| R88L-EA-AF-0609-1310-0005 | 1310 | 1608 | 16 | 34 | 6.7 | 37.9 |
| R88L-EA-AF-0609-1406-0005 | 1406 | 1704 | 17 | 36 | 6.7 | 39.7 |
| R88L-EA-AF-0609-1502-0005 | 1502 | 1800 | 18 | 38 | 6.7 | 41.4 |
| R88L-EA-AF-0609-1598-0005 | 1598 | 1896 | 19 | 40 | 6.7 | 43.1 |
| R88L-EA-AF-0609-1694-0005 | 1694 | 1992 | 20 | 42 | 6.7 | 44.9 |
| R88L-EA-AF-0609-1790-0005 | 1790 | 2088 | 21 | 44 | 6.7 | 46.6 |
| R88L-EA-AF-0609-1886-0005 | 1886 | 2184 | 22 | 46 | 6.7 | 48.3 |
| R88L-EA-AF-0609-1982-0005 | 1982 | 2280 | 23 | 48 | 6.7 | 50.1 |
| R88L-EA-AF-0609-2078-0005 | 2078 | 2376 | 24 | 50 | 6.7 | 51.8 |
R88L-EA-AF-06012-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0612-0110-0005 | 110 | 456 | 4 | 10 | 7.9 | 18.3 |
| R88L-EA-AF-0612-0206-0005 | 206 | 552 | 5 | 12 | 7.9 | 20.0 |
| R88L-EA-AF-0612-0302-0005 | 302 | 648 | 6 | 14 | 7.9 | 21.7 |
| R88L-EA-AF-0612-0398-0005 | 398 | 744 | 7 | 16 | 7.9 | 23.4 |
| R88L-EA-AF-0612-0494-0005 | 494 | 840 | 8 | 18 | 7.9 | 25.2 |
| R88L-EA-AF-0612-0590-0005 | 590 | 936 | 9 | 20 | 7.9 | 26.9 |
| R88L-EA-AF-0612-0686-0005 | 686 | 1032 | 10 | 22 | 7.9 | 28.6 |
| R88L-EA-AF-0612-0782-0005 | 782 | 1128 | 11 | 24 | 7.9 | 30.4 |
| R88L-EA-AF-0612-0878-0005 | 878 | 1224 | 12 | 26 | 7.9 | 32.1 |
| R88L-EA-AF-0612-0974-0005 | 974 | 1320 | 13 | 28 | 7.9 | 33.8 |
| R88L-EA-AF-0612-1070-0005 | 1070 | 1416 | 14 | 30 | 7.9 | 35.6 |
| R88L-EA-AF-0612-1166-0005 | 1166 | 1512 | 15 | 32 | 7.9 | 37.3 |
| R88L-EA-AF-0612-1262-0005 | 1262 | 1608 | 16 | 34 | 7.9 | 39.0 |
| R88L-EA-AF-0612-1358-0005 | 1358 | 1704 | 17 | 36 | 7.9 | 40.8 |
| R88L-EA-AF-0612-1454-0005 | 1454 | 1800 | 18 | 38 | 7.9 | 42.5 |
| R88L-EA-AF-0612-1550-0005 | 1550 | 1896 | 19 | 40 | 7.9 | 44.2 |
| R88L-EA-AF-0612-1646-0005 | 1646 | 1992 | 20 | 42 | 7.9 | 46.0 |
| R88L-EA-AF-0612-1742-0005 | 1742 | 2088 | 21 | 44 | 7.9 | 47.7 |
| R88L-EA-AF-0612-1838-0005 | 1838 | 2184 | 22 | 46 | 7.9 | 49.4 |
| R88L-EA-AF-0612-1934-0005 | 1934 | 2280 | 23 | 48 | 7.9 | 50.2 |
| R88L-EA-AF-0612-2030-0005 | 2030 | 2376 | 24 | 50 | 7.9 | 52.9 |
R88L-EA-AF-1112-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-1112-0110-0005 | 110 | 456 | 4 | 10 | 13.7 | 31.9 |
| R88L-EA-AF-1112-0206-0005 | 206 | 552 | 5 | 12 | 13.7 | 35.2 |
| R88L-EA-AF-1112-0302-0005 | 302 | 648 | 6 | 14 | 13.7 | 38.5 |
| R88L-EA-AF-1112-0398-0005 | 398 | 744 | 7 | 16 | 13.7 | 41.7 |
| R88L-EA-AF-1112-0494-0005 | 494 | 840 | 8 | 18 | 13.7 | 45.0 |
| R88L-EA-AF-1112-0590-0005 | 590 | 936 | 9 | 20 | 13.7 | 48.3 |
| R88L-EA-AF-1112-0686-0005 | 686 | 1032 | 10 | 22 | 13.7 | 51.5 |
| R88L-EA-AF-1112-0782-0005 | 782 | 1128 | 11 | 24 | 13.7 | 54.8 |
| R88L-EA-AF-1112-0878-0005 | 878 | 1224 | 12 | 26 | 13.7 | 58.1 |
| R88L-EA-AF-1112-0974-0005 | 974 | 1320 | 13 | 28 | 13.7 | 61.3 |
| R88L-EA-AF-1112-1070-0005 | 1070 | 1416 | 14 | 30 | 13.7 | 64.6 |
| R88L-EA-AF-1112-1166-0005 | 1166 | 1512 | 15 | 32 | 13.7 | 67.9 |
| R88L-EA-AF-1112-1262-0005 | 1262 | 1608 | 16 | 34 | 13.7 | 71.1 |
| R88L-EA-AF-1112-1358-0005 | 1358 | 1704 | 17 | 36 | 13.7 | 74.4 |
| R88L-EA-AF-1112-1454-0005 | 1454 | 1800 | 18 | 38 | 13.7 | 77.7 |
| R88L-EA-AF-1112-1550-0005 | 1550 | 1896 | 19 | 40 | 13.7 | 80.9 |
| R88L-EA-AF-1112-1646-0005 | 1646 | 1992 | 20 | 42 | 13.7 | 84.2 |
| R88L-EA-AF-1112-1742-0005 | 1742 | 2088 | 21 | 44 | 13.7 | 87.5 |
| R88L-EA-AF-1112-1838-0005 | 1838 | 2184 | 22 | 46 | 13.7 | 90.8 |
| R88L-EA-AF-1112-1934-0005 | 1934 | 2280 | 23 | 48 | 13.7 | 94.0 |
| R88L-EA-AF-1112-2030-0005 | 2030 | 2376 | 24 | 50 | 13.7 | 97.3 |
| R88L-EA-AF-1112-2126-0005 | 2126 | 2472 | 25 | 52 | 13.7 | 100.6 |
R88L-EA-AF-1115-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-1115-0158-0005 | 158 | 552 | 5 | 12 | 15.9 | 37.4 |
| R88L-EA-AF-1115-0254-0005 | 254 | 648 | 6 | 14 | 15.9 | 40.6 |
| R88L-EA-AF-1115-0350-0005 | 350 | 744 | 7 | 16 | 15.9 | 43.9 |
| R88L-EA-AF-1115-0446-0005 | 446 | 840 | 8 | 18 | 15.9 | 47.2 |
| R88L-EA-AF-1115-0542-0005 | 542 | 936 | 9 | 20 | 15.9 | 50.4 |
| R88L-EA-AF-1115-0638-0005 | 638 | 1032 | 10 | 22 | 15.9 | 53.7 |
| R88L-EA-AF-1115-0734-0005 | 734 | 1128 | 11 | 24 | 15.9 | 57.0 |
| R88L-EA-AF-1115-0830-0005 | 830 | 1224 | 12 | 26 | 15.9 | 60.2 |
| R88L-EA-AF-1115-0926-0005 | 926 | 1320 | 13 | 28 | 15.9 | 63.5 |
| R88L-EA-AF-1115-1022-0005 | 1022 | 1416 | 14 | 30 | 15.9 | 66.8 |
| R88L-EA-AF-1115-1118-0005 | 1118 | 1512 | 15 | 32 | 15.9 | 70.0 |
| R88L-EA-AF-1115-1214-0005 | 1214 | 1608 | 16 | 34 | 15.9 | 73.3 |
| R88L-EA-AF-1115-1310-0005 | 1310 | 1704 | 17 | 36 | 15.9 | 76.6 |
| R88L-EA-AF-1115-1406-0005 | 1406 | 1800 | 18 | 38 | 15.9 | 79.8 |
| R88L-EA-AF-1115-1502-0005 | 1502 | 1896 | 19 | 40 | 15.9 | 83.1 |
| R88L-EA-AF-1115-1598-0005 | 1598 | 1992 | 20 | 42 | 15.9 | 86.4 |
| R88L-EA-AF-1115-1694-0005 | 1694 | 2088 | 21 | 44 | 15.9 | 89.6 |
| R88L-EA-AF-1115-1790-0005 | 1790 | 2184 | 22 | 46 | 15.9 | 92.9 |
| R88L-EA-AF-1115-1886-0005 | 1886 | 2280 | 23 | 48 | 15.9 | 96.2 |
| R88L-EA-AF-1115-1982-0005 | 1982 | 2376 | 24 | 50 | 15.9 | 99.4 |
| R88L-EA-AF-1115-2078-0005 | 2078 | 2472 | 25 | 52 | 15.9 | 102.7 |
| R88L-EA-AF-1115-2174-0005 | 2174 | 2568 | 26 | 54 | 15.9 | 106.0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| R88A-CAWL010S-DE R88ACAWL010SDE AA010686F EN_R88A-CAWL005S-DE.pdf | 737 Kbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
