> OMRON>Relay sockets>P2RF>P2RF-05-PU P2R 8100M 685032 OMRON Base G2R-S DIN Rail 5-pin Push-in+ ejection lever
ANUNCIAR
Previous Product Next Product

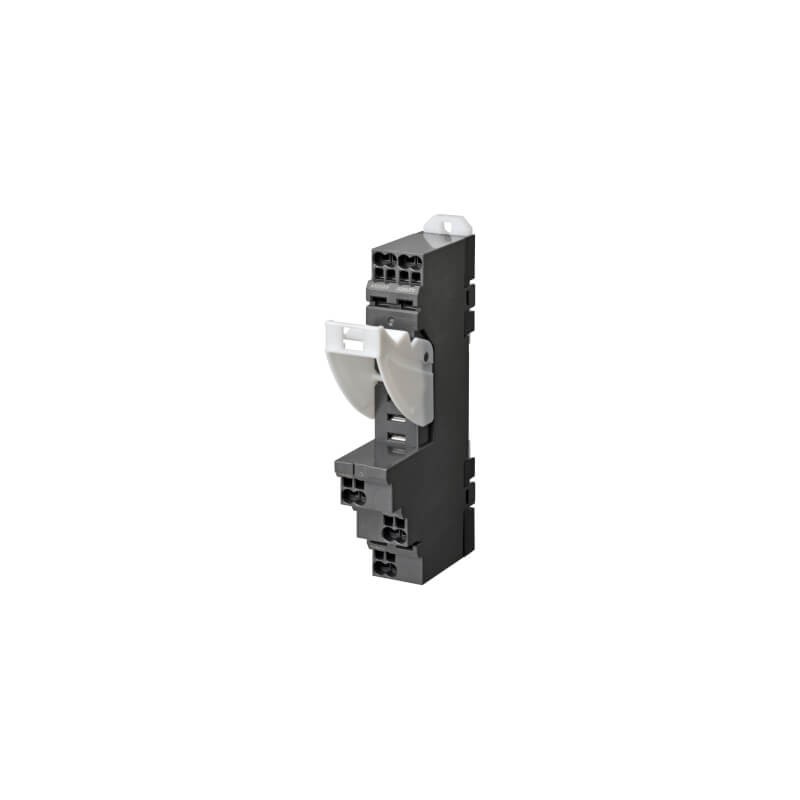

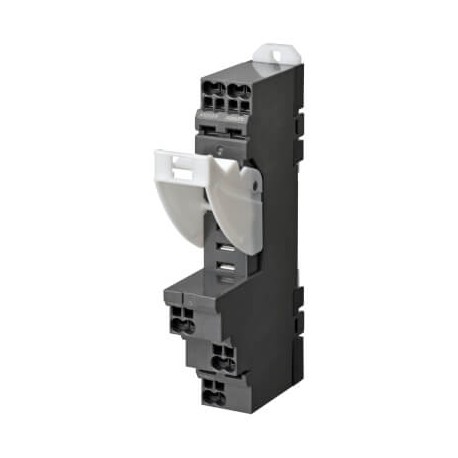

P2RF-05-PU P2R 8100M 685032 OMRON Base G2R-S DIN Rail 5-pin Push-in+ ejection lever View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

P2RF-05-PU P2R 8100M 685032 OMRON Base G2R-S DIN Rail 5-pin Push-in+ ejection lever

P2RF-05-PU

P2R 8100M

P2RF05PUBYOMB

OMRON

20

Base G2R-S DIN Rail mounting, 5-pin eject Lever Push-in+

Socket, DIN rail/surface mounting, 15.5 mm, 5-pin, Push-in terminals

More details


Relays > Relay socket

Relay sockets > P2RF

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $134.72
Unit price: $6.74
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Specifications

Applicable product familyG2R-1-S
Mounting methodDIN rail/screw
Depth52.1 mm
Height90 mm
Width15.5 mm
TerminalPush-in Plus
ColorBlack
Hold down clip included
Release Lever included

Accessories

MG-CPM-04 41390NWhite modular sheet with 48 marker of size mm: 5x10, Polycarbonate, Halogen Free, Silicon Free, UL94 V0, -40° to 130°C, Minimum Order Quantity is 1 box (In one box: 35 sheets, total markers 1680)
PFP-100NDIN-rail mounting track, 35 x 7.3 mm, 1 m length
PFP-100N2DIN-rail mounting track, 35x16mm, 1m length
PFP-50NDin rail track, 500 mm
PFP-MEnd plate
PFP-SSpacer
PYDN-15.5-080RAccessory for PYF-PU, 15.5mm pitch, 8 Poles, Red color
PYDN-15.5-080SAccessory for PYF-PU, 15.5mm pitch, 8 Poles, Blue color
PYDN-15.5-080YAccessory for PYF-PU, 15.5mm pitch, 8 Poles, Yellow color
PYDN-7.75-020RAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 2 Poles, Red color
PYDN-7.75-020SAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 2 Poles, Blue color
PYDN-7.75-020YAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 2 Poles, Yellow color
PYDN-7.75-030RAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 3 Poles, Red color
PYDN-7.75-030SAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 3 Poles, Blue color
PYDN-7.75-030YAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 3 Poles, Yellow color
PYDN-7.75-040RAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 4 Poles, Red color
PYDN-7.75-040SAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 4 Poles, Blue color
PYDN-7.75-040YAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 4 Poles, Yellow color
PYDN-7.75-200RAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 20 Poles, Red color
PYDN-7.75-200SAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 20 Poles, Blue color
PYDN-7.75-200YAccessory for PYF-PU/P2RF-PU, 7.75mm pitch, 20 Poles, Yellow color
XW5Z-EP12Separator Plate for terminal blocks, 12 mm width
XW5Z-EP6End bracket for terminal blocks, 6 mm width

ETIM for 685032 Relays (EC001456)
Feature Name Feature Value
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Type of electric connection (EF003961) Other
Function extension possible (EF003444) No
With detachable clamps (EF003340) No
Number of pins (EF005580) 5
Width (EF000008) 15.5 mm
Height (EF000040) 90 mm
Depth (EF000049) 52.4 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
P2RF-05-PU P2RF05PUBYOMB P2R 8100M RU_PTF-08-PU.pdf 3 Mbytes P2RF-05-PU P2RF05PUBYOMB P2R 8100M RU_PTF-08-PU.pdf
