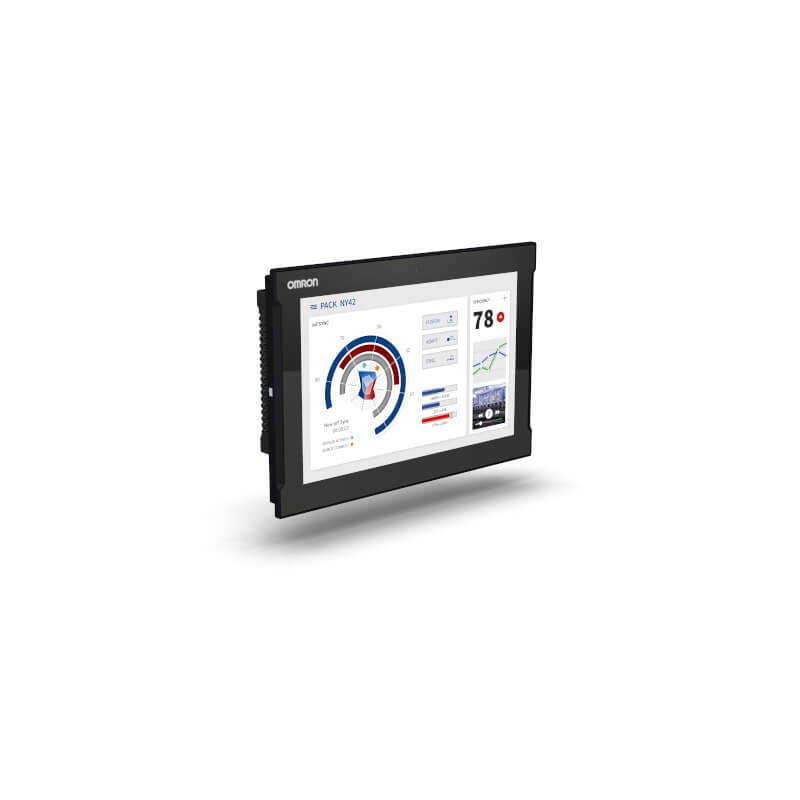

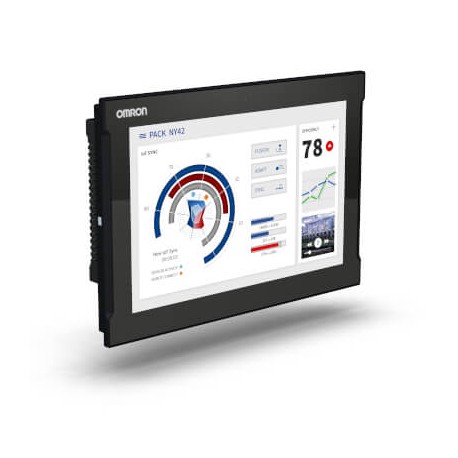

NYP17-312C1-15WC1000 686704 NYP17312C115WC1000.1 OMRON Industrial Panel PC with Intel© Core™ i7-4700EQ, 8GB ..
NYP17-312C1-15WC1000
686704
NYP17312C115WC1000.1
OMRON
Industrial Panel PC with Intel© Core™ i7-4700EQ, 8GB DRAM (non-ECC), WES 7 (64bit), PCIe slot, 320GB HDD, RS-232, 15.4"
Industrial Panel PC with Intel® Core™ i7-4700EQ, 8 GB DRAM (non-ECC), 320 GB HDD, WES 7 (64-bit), PCIe slot, RS-232, 15.4" display with capacitive touchscreen
PC Industrial > PC Industrial NY
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Screen diagonal | 15.4 inch |
| Max. number of motion axes | 0 axes |
| Processor family | Intel® Core™ i7 |
| Processor specification | 4700EQ (2.4 GHz) |
| Cooling method | Active cooling (fan) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 320 GB HDD |
| Operating system | WES 7 (64 bits) |
| Expansion slot | 1 x PCIe slot (X4 lanes) |
| Modular port | RS-232 |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB |
| Video output | DVI-I |
| Display ratio | 16:10 |
| Material housing | Aluminium, black |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Degree of protection (IP), front side | IP65 |
| Operation temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 277 mm |
| Width of the front | 401 mm |
| Height of panel cutout | 259 mm |
| Width of panel cutout | 383 mm |
| Built-in depth | 113 mm |
Accessories
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOGUE OMRON INDUSTRIAL PC EN.pdf | 12 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| NYP17-312C1-15WC1000 NYP17312C115WC1000.1 686704 EN_NYP17-21001-12WC1000.pdf | 2 Mbytes |
|
| NYP17-312C1-15WC1000 NYP17312C115WC1000.1 686704 nyp_industrial_panel_pc_datasheet_en.pdf | 1 Mbytes |
|
