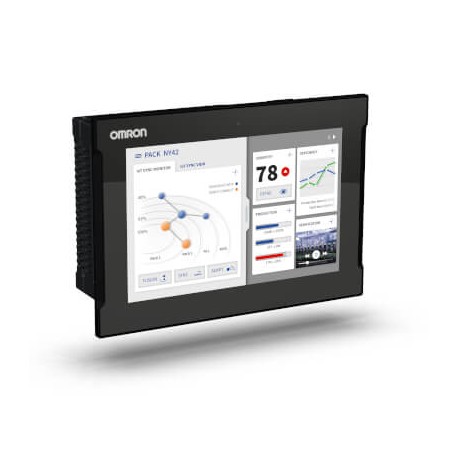

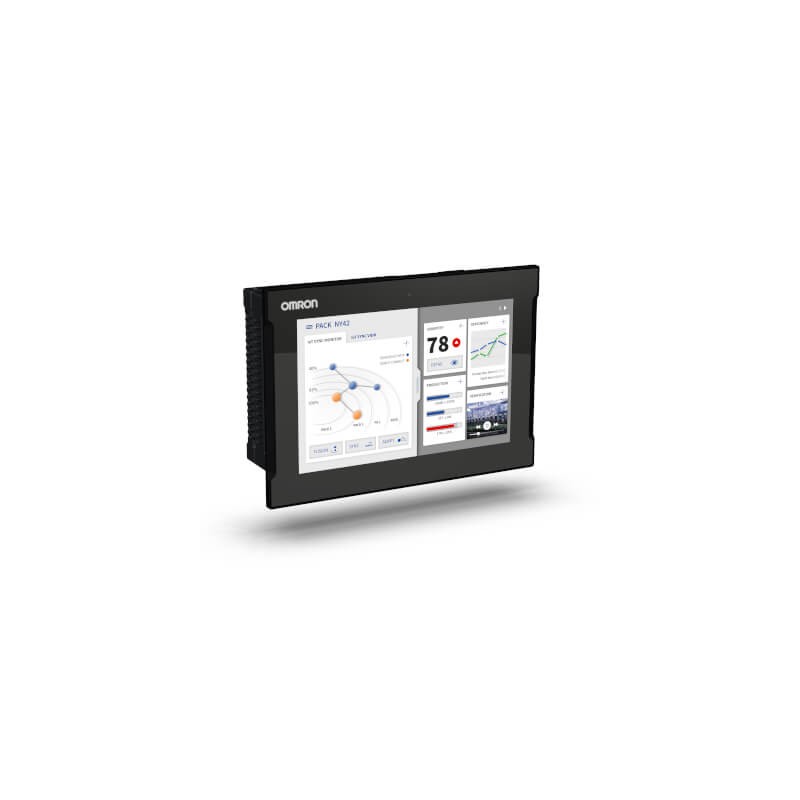

NY532-1300-111213910 686394 NY5321300111213910.1 OMRON Controller of machines Sysmac 16 shafts, Industrial P..
NY532-1300-111213910
686394
NY5321300111213910.1
OMRON
Controller of machines Sysmac 16 shafts, Industrial Panel PC with Intel© Core™ i7-4700EQ, 8GB DRAM (non-ECC), WES 7 (64bit), PCIe slot, 64GB SSD-SLC, RS-232, 12.1"
Machine Controller for 16 axes, Industrial Panel PC with Intel® Core™ i7-4700EQ, 8 GB DRAM (non-ECC), 64 GB SSD-SLC, WES 7 (64-bit), PCIe slot, RS-232, 12.1" display with capacitive touchscreen
PC Industrial > PC Industrial NY
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| IPC type | Panel PC |
| Controller type | Machine Control |
| Max. number of motion axes | 16 axes |
| Screen diagonal | 12.1 inch |
| Processor family | Intel® Core™ i7 |
| Processor specification | 4700EQ (2.4 GHz) |
| Cooling method | Active cooling (fan) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 64 GB SSD |
| Operating system | WES 7 (64 bits) |
| Expansion slot | 1 x PCIe slot (X4 lanes) |
| Modular port | RS-232 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB |
| Video output | DVI-I |
| Display ratio | 16:10 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Material housing | Aluminium, black |
| Degree of protection (IP), front side | IP65 |
| Operation temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 234 mm |
| Width of the front | 332 mm |
| Height of panel cutout | 216 mm |
| Width of panel cutout | 314 mm |
| Built-in depth | 113 mm |
Accessories
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOGUE OMRON INDUSTRIAL PC EN.pdf | 12 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| NY532-1300-111213910 NY5321300111213910.1 686394 ES_NY512-1300-1XX21381X.pdf | 2 Mbytes |
|
| NY532-1300-111213910 NY5321300111213910.1 686394 industrial_pc_platform_brochure_en.pdf | 5 Mbytes |
|
