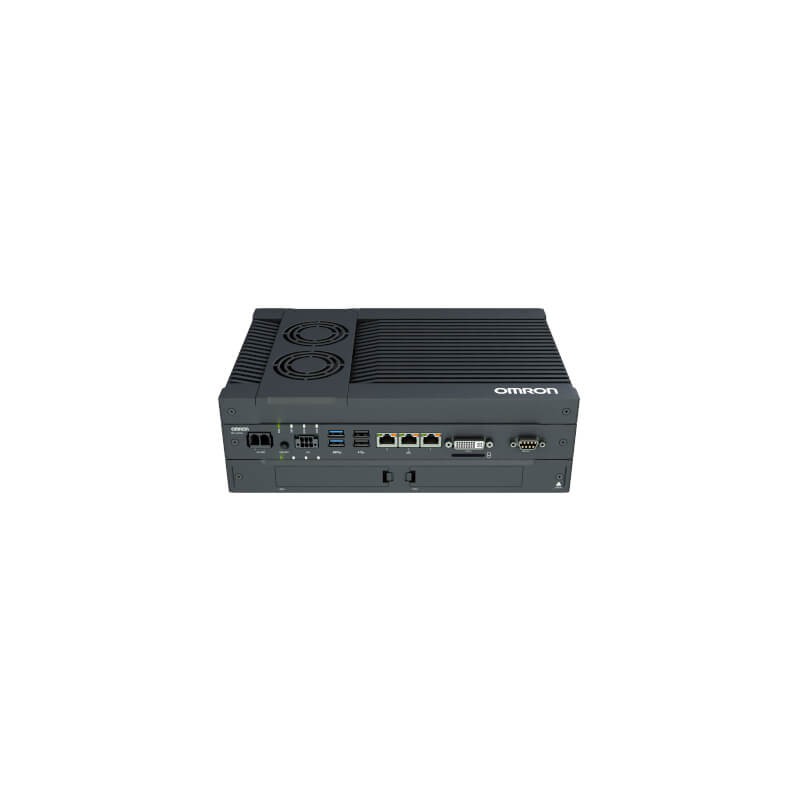

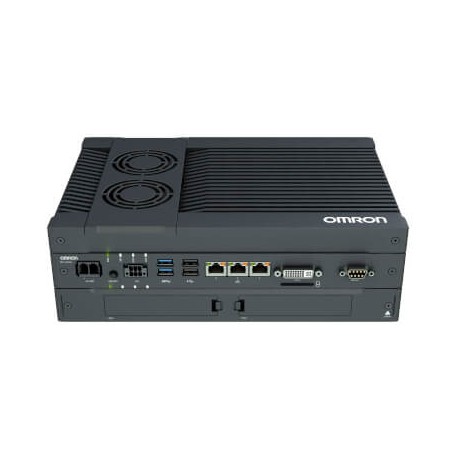

NY512-1500-1XX213C1X 686398 NY51215001XX213C1X.1 OMRON Controller of machines Sysmac 64 axes, Industrial Box.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NY512-1500-1XX213C1X 686398 NY51215001XX213C1X.1 OMRON Controller of machines Sysmac 64 axes, Industrial Box..

NY512-1500-1XX213C1X

686398

NY51215001XX213C1X.1

OMRON

Controller of machines Sysmac 64 axes, Industrial Box PC with Intel© Core™ i7-4700EQ, 8GB DRAM (non-ECC), WES 7 (64bit), PCIe slot, 320GB HDD RS-232

Machine Controller for 64 axes, Industrial Box PC with Intel® Core™ i7-4700EQ, 8 GB DRAM (non-ECC), 320 GB HDD, WES 7 (64-bit), PCIe slot, RS-232

More details


PC Industrial > PC Industrial NY

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Specifications

IPC typeBox PC
Controller typeMachine Control
Max. number of motion axes64 axes
Processor familyIntel® Core™ i7
Processor specification4700EQ (2.4 GHz)
Cooling methodActive cooling (fan)
Memory8 GB RAM (non ECC)
Storage320 GB HDD
Operating systemWES 7 (64 bits)
Expansion slot1 x PCIe slot (X4 lanes)
Modular portRS-232
Communication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
Video outputDVI-I
Material housingAluminium, black
Degree of protection (IP)IP20
Operation temperature0-55 °C
Supply voltage DC20.4-28.8 V
Height89 mm
Width282 mm
Depth195 mm

Accessories

FH-VUAB 2MVision system accessory FH USB cable touch panel 2 m
FH-VUAB 5MVision system accessory FH USB cable touch panel 5 m
NY000-AB01Wall mount bracket for Box PC
NY000-AC00 2MDVI cable 2 m
NY000-AC00 5MDVI cable 5 m
NY000-AH00320 GB HDD
NY000-AS0032 GB SSD (SLC)
NY000-AS0164 GB SSD (SLC)
NYM12W-C1000Industrial Monitor, 12.1" display with capacitive touchscreen, Build-in mounting, DVI-D port
NYM15W-C1000Industrial Monitor, 15.4" display with capacitive touchscreen, Build-in mounting, DVI-D port
NYM19W-C1000Industrial Monitor, 18.5" display with capacitive touchscreen, Build-in mounting, DVI-D port
S8BA-24D24D240LFUPS, DIN rail type, DC-DC, 10A, 240W
S8BW-C02UPS Connection cable (CONTACT)
SYSMAC-SE200DSysmac Studio installation DVD only, for Windows XP or Windows 7/8, 32 or 64-bit versions (requires SYSMAC-SE2**L license)
SYSMAC-SE201LSysmac Studio license only, single user (requires SYSMAC-SE200D download or installation DVD, available separately)

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf 19 Mbytes
PDF CATALOGUE OMRON INDUSTRIAL PC EN.pdf 12 Mbytes
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
NY512-1500-1XX213C1X NY51215001XX213C1X.1 686398 ES_NY512-1300-1XX21381X.pdf 2 Mbytes NY512-1500-1XX213C1X NY51215001XX213C1X.1 686398 ES_NY512-1300-1XX21381X.pdf
NY512-1500-1XX213C1X NY51215001XX213C1X.1 686398 industrial_pc_platform_brochure_en.pdf 5 Mbytes NY512-1500-1XX213C1X NY51215001XX213C1X.1 686398 ES_NY512-1300-1XX21381X.pdf
