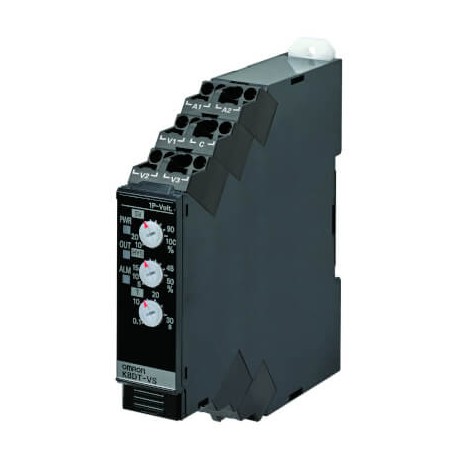

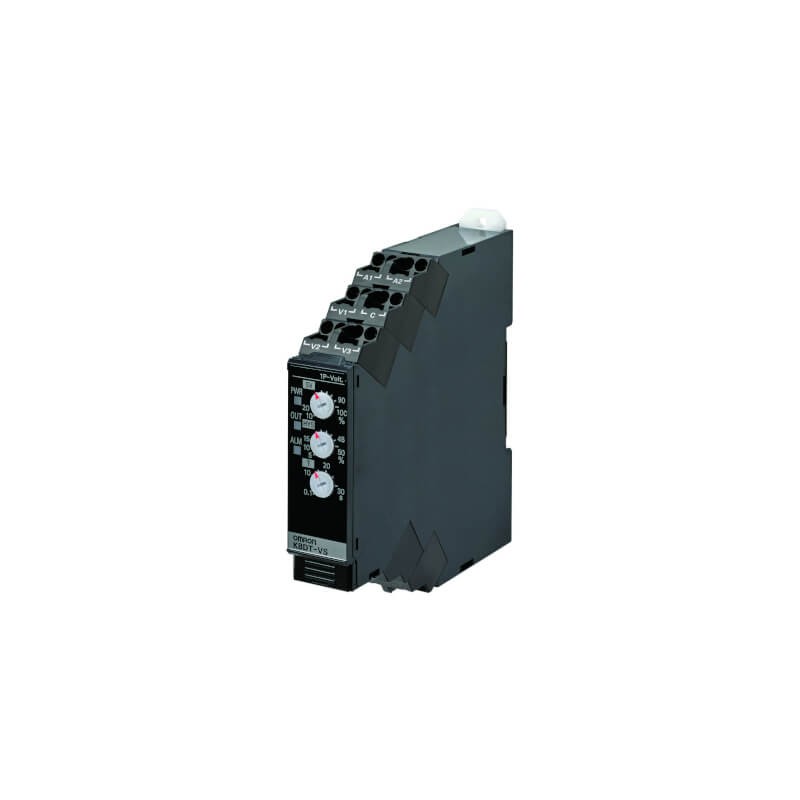

K8DT-VS2TD K8DT0031R K8DTVS2TD OMRON Single-phase Voltage Max or Min 1-150VAC/DC 24V AC/DC 1 transistor 17.5..
K8DT-VS2TD
K8DT0031R
K8DTVS2TD
OMRON
Single-phase Voltage Max or Min 1-150VAC/DC 24V AC/DC 1 transistor 17.5 mm Push-in+
Monitoring relay 17.5mm wide, Single phase over or under voltage 1 to 150 V AC /DC, 1 x Transistor, 24 V AC/DC
Relays > Voltage monitoring relay
Monitoring Relays > K8DT
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Spring clamp connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Type of voltage measuring range (EF003399) | AC/DC |
| Contains function DC-over voltage (EF003397) | Yes |
| External power supply required (EF003292) | Yes |
| Contains function DC-voltage hysteresis (EF003398) | Yes |
| With detachable clamps (EF003340) | No |
| Single-phase under voltage possible (EF003390) | Yes |
| Three-phase under voltage possible (EF003391) | No |
| Three-phase over voltage possible (EF003393) | No |
| Contains function DC-under voltage (EF003396) | Yes |
| Single-phase over voltage possible (EF003392) | Yes |
| Single-phase hysteresis possible (EF003394) | Yes |
| Three-phase hysteresis possible (EF003395) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Width (EF000008) | 17.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Rated switch current (EF006706) | 5 A |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 20.4 V |
| Response value voltage (EF008193) | 1 V |
| Voltage measuring range 1 (EF006134) | 1 V |
| Supply voltage AC 60 Hz (EF007533) | 20.4 V |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| K8DT-VS2TD K8DTVS2TD K8DT0031R EN_K8DT-VS2TD.pdf | 3 Mbytes |
|
| K8DT-VS2TD K8DTVS2TD K8DT0031R k8dt_brochure_en.pdf | 2 Mbytes |
|
