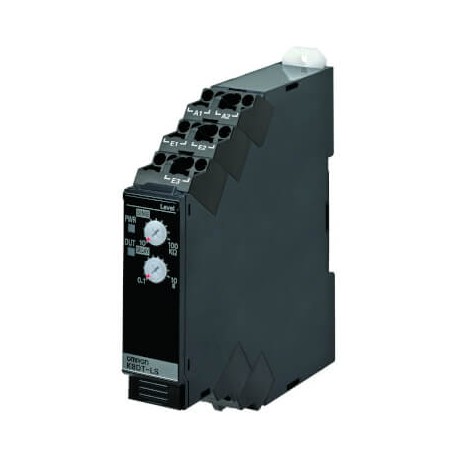

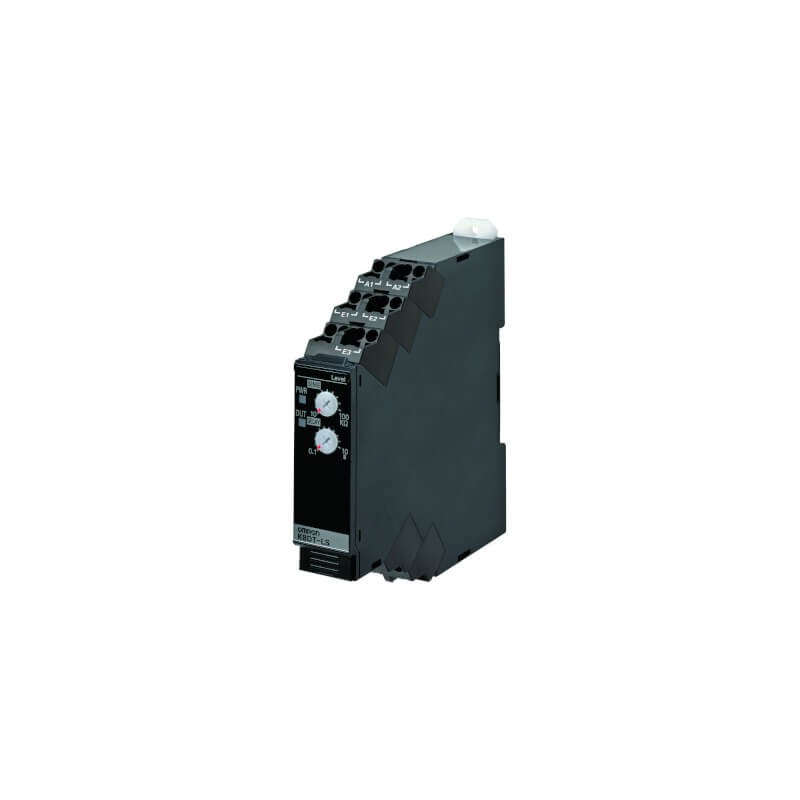

K8DT-LS1CD K8DT0053M 669464 OMRON 10K-100K SPDT 24V AC/DC 17.5mm Push-in+ Level Relay
K8DT-LS1CD
K8DT0053M
K8DTLS1CD
OMRON
Level relay 10K-100K SPDT 24V AC/DC 17.5 mm Push-in+
Monitoring relay 17.5 mm wide, Conductive level control for liquid, 10k to 100k Ohm, 1 x SPDT, 24 V AC/DC
Monitoring Relays > K8DT
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Application | Ordinary purified water, Sewage water |
| Functions | Conductive level control |
| Cable length | 100 m |
| Installation type | DIN Rail |
| Terminal | Push-in |
| Size | 17.5 mm |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Output type | Relay |
| Contact description | SPDT |
| Body color | Black |
| Number of inputs for electrodes | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| K8DT-LS1CD K8DTLS1CD K8DT0053M ES_K8DT-LS1CD.pdf | 3 Mbytes |
 |
| K8DT-LS1CD K8DTLS1CD K8DT0053M n205_k8dt_ls_conductive_level_controller_datasheet_en.pdf | 3 Mbytes |
|
