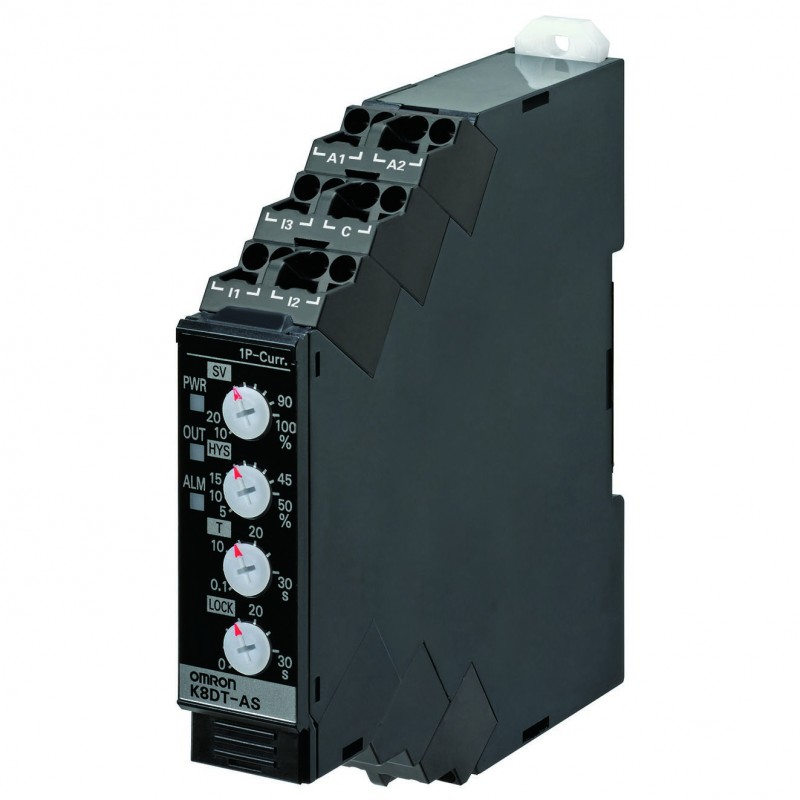

K8DT-AS3CD K8DT0009B K8DTAS3CD OMRON Single phase Current Max or Min 10-200 TO SPDT 24V AC/DC 17.5 mm Push-i..
K8DT-AS3CD
K8DT0009B
K8DTAS3CD
OMRON
Single phase Current Max or Min 10-200 TO SPDT 24V AC/DC 17.5 mm Push-in+
Monitoring relay 17.5mm wide, Single phase over or under current 10 to 200 A AC /DC, 1 x SPDT, 24 V AC/DC
Relays > Current monitoring relay
Monitoring Relays > K8DT
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Spring clamp connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Three-phase under current possible (EF003406) | No |
| Function DC-current hysteresis (EF003411) | No |
| Single-phase under current possible (EF003405) | Yes |
| External power supply required (EF003292) | Yes |
| Contains function DC-voltage overcurrent (EF003410) | No |
| With detachable clamps (EF003340) | Yes |
| External current transformer (EF001923) | Yes |
| Single-phase overcurrent possible (EF003407) | Yes |
| Three-phase overcurrent possible (EF003408) | No |
| Contains function DC-voltage under current (EF003409) | No |
| Single-phase hysteresis possible (EF003394) | Yes |
| Three-phase hysteresis possible (EF003395) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Min. adjustable off-delay time (EF008192) | 0.25 s |
| Width (EF000008) | 17.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Rated switch current (EF006706) | 5 A |
| Max. permitted off-delay time (EF008191) | 0.25 s |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 24 V |
| Current measuring range (EF000417) | 10 A |
| Supply voltage AC 60 Hz (EF007533) | 24 V |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| K8DT-AS3CD K8DTAS3CD K8DT0009B EN_K8DT-AS3CD.pdf | 4 Mbytes |
|
| K8DT-AS3CD K8DTAS3CD K8DT0009B k8dt_brochure_en.pdf | 2 Mbytes |
|
