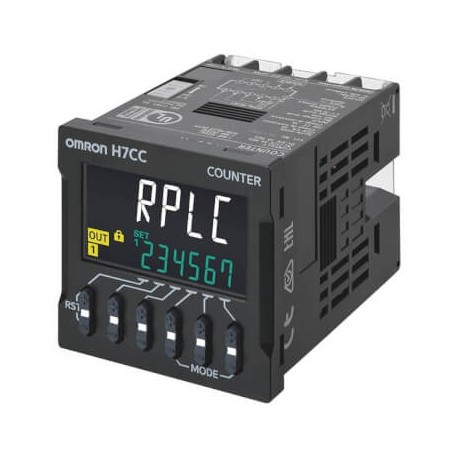

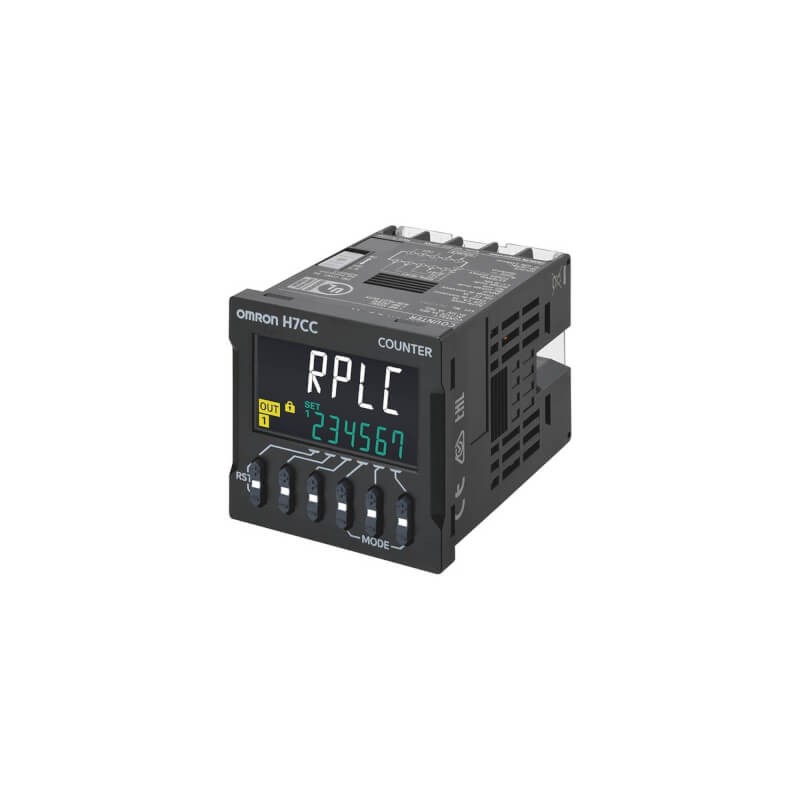

H7CC-AU H7CC7024F 700363 OMRON Digital Counter Screw Terminals 48x48mm, IP66, 6 Digit Counting, Multifunctio..
H7CC-AU
H7CC7024F
H7CCAU
OMRON
Digital counter, screw terminals, 48x48 mm, IP66, 6 count digits, multifunction: 1&2-stage, total, batch, dual, twin counter, tachometer, SPDT relay &
Digital counter, screw terminals, 48x48 mm, IP66, 6 count digits, multifunction: 1&2-stage, total, batch, dual, twin counter, tachometer, SPDT relay & SPST transistor output, 100-240 VAC supply, 12 VDC aux. supply
Counters > H7CX
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type | Pre-set counter |
| Size | 1/16 DIN (48 x 48 mm) |
| Counting functions | 1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counter |
| Counting range | -99999 - 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | On-panel |
| Terminal | Screw |
| Output type | Relay, Transistor |
| Relay output | 1 |
| Transistor output | 1 |
| Inputs | DC voltage, No-voltage |
| Supply voltage AC | 100-240 V |
| Speed | 10000 Hz |
| Width | 48 mm |
| Height | 48 mm |
| Depth | 78 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON EN.pdf | 24 Mbytes |
|
