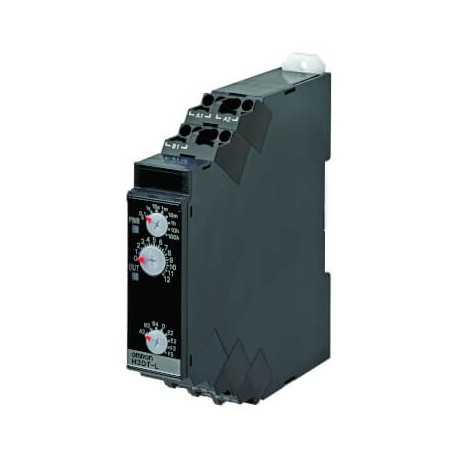

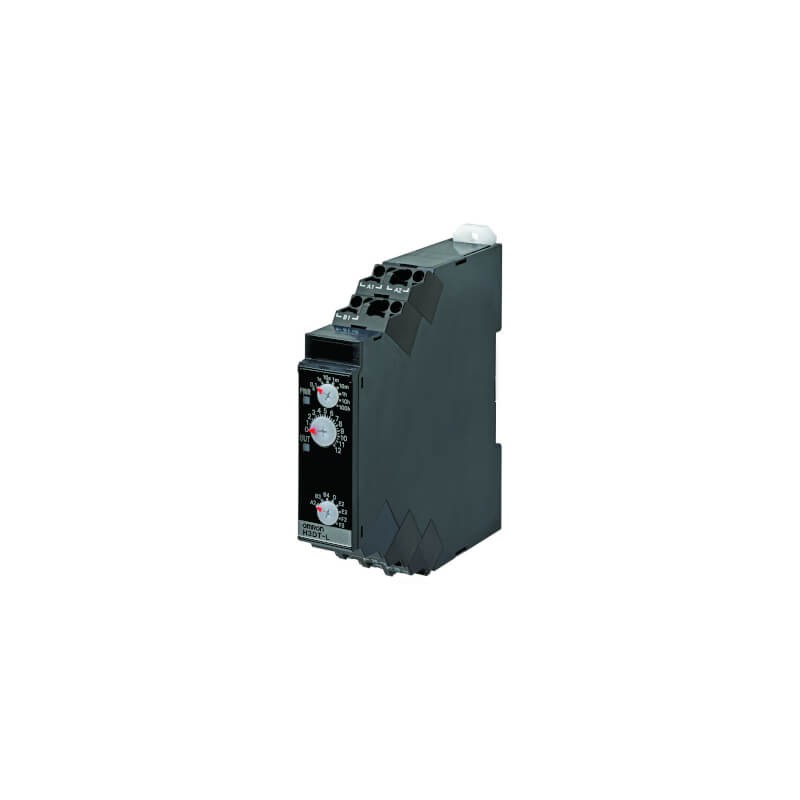

H3DT-L1 24-240VAC/DC H3DT0004D H3DTL1ACDC24240 OMRON 17.5 mm DIN Multi-function 1xSPDT 24-240 Vdc/Vac, Push-..
H3DT-L1 24-240VAC/DC
H3DT0004D
H3DTL1ACDC24240
OMRON
17.5 mm DIN Multi-function 1xSPDT 24-240 Vdc/Vac, Push-in+
Timer, DIN rail mounting, 17.5mm, Extended Multifunction, 0.1s-1200h, 1 x SPDT, 5 A, 24-240 VAC/DC, Push-in terminal
Relays > Timer relay
Timers > H3DT
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type | Analog |
| Installation type | DIN rail |
| Functions | Multi-functional |
| Size | 17.5 mm |
| Terminal type | Push-in |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), ON Delay (Signal Start), One-shot Output (Power ON Start), One-shot Output (Signal Start), Signal ON/OFF Delay |
| Output type | Relay |
| Contact description | SPDT |
| Time range | 0.1 s - 1200 h |
| Supply voltage AC | 24-240 V |
| Supply voltage DC | 24-240 V |
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Degree of protection (IP) (EF005474) | IP30 |
| Voltage type for actuating (EF008242) | AC/DC |
| Material contact (EF007544) | Other |
| Material of contact insert (EF008521) | Other |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Spring clamp connection |
| Function delay on de-energization (EF003401) | No |
| Suitable as remote control (EF003362) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Complete with socket (EF003359) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | Yes |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | No |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | No |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| Function delay-on energization (EF003374) | Yes |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Suitable for front mounting (EF020288) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 17.5 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Depth (EF000049) | 90 mm |
| Number of outputs, delayed, normally open contact (EF006839) | 1 |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Number of outputs, delayed, normally closed contact (EF006838) | 1 |
| Height (EF000040) | 90 mm |
| Nominal current (EF000001) | 5 A |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Operating voltage DC (EF008208) | 0 V |
| Time range (EF003384) | 0.1 s |
| Rated control supply voltage DC (EF003980) | 24 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| H3DT-L1 24-240VAC/DC H3DTL1ACDC24240 H3DT0004D h3dt_folder_en.pdf | 753 Kbytes |
|
| H3DT-L1 24-240VAC/DC H3DTL1ACDC24240 H3DT0004D panel_building_brochure_en.pdf | 3 Mbytes |
|
