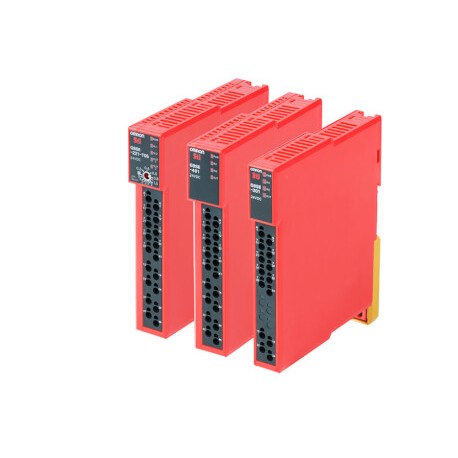

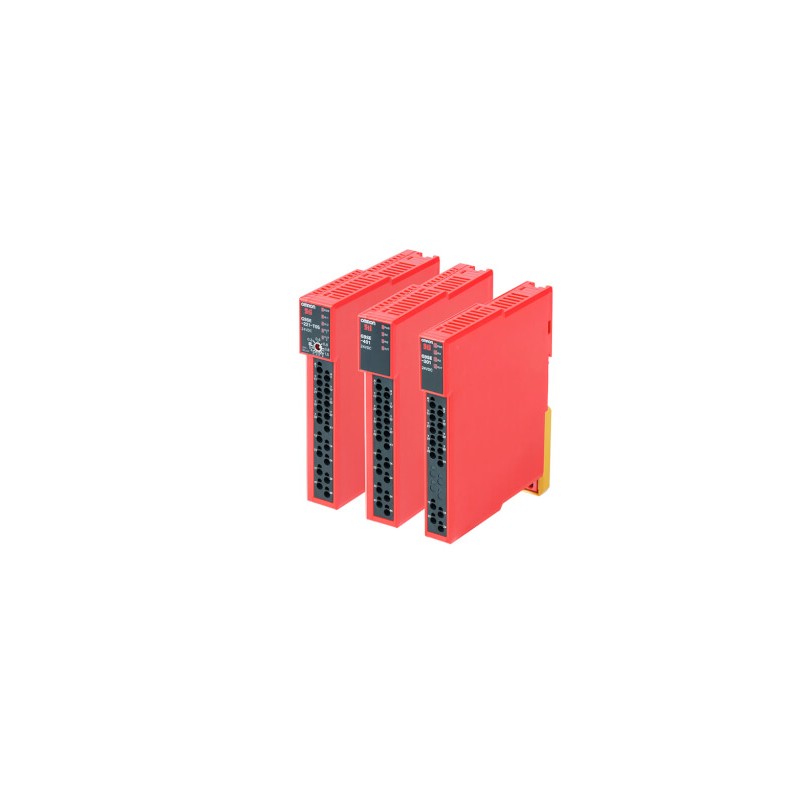

G9SE-201 DC24 G9SE9001B G9SE201DC24FOROEE OMRON Safety relay, 24 V DC, 2 safety outputs, 5 A max., aux output
G9SE-201 DC24
G9SE9001B
G9SE201DC24FOROEE
OMRON
Safety relay, 24 V DC, 2 safety outputs, 5 A max., aux output
Relays > Device for monitoring of safety-related circuits
Security Controllers > G9SE
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Slim-size safety relay unit family
G9SE-family offers compact units for E-Stop, door and safety monitoring applications . Modules with two or four safety contacts and OFF-delay timing are available on slim-size housing.
- Simple front side wiring using screw-less terminals.
- 17.5 or 22.5 mm width to save mounting space
- 15ms Max. response time
- Safe OFF delay function up to PLe
- Certification for lift standards EN 81-1, EN 81-2
- Up to Ple according to EN ISO 13849-1 and SIL 3 according to EN 61508
Ordering information
Auxiliary outputs1 | Max. OFF-delay time2 | ||||
|---|---|---|---|---|---|
Specifications
Ratings
Power Input
Rated power consumption3 | |||
Outputs
Characteristics
Operating time (OFF to ON state)4 | 100 ms Max.5 | ||||
Response time (ON to OFF state)6 | |||||
Contact resistance7 | |||||
100A8 | |||||
2.The OFF-delay time can be set in 16 steps as follows:
T05: 0/0.1/0.2/0.3/0.4/0.5/0.6/0.7/0.8/1/1.5/2/2.5/3/4/5 s
T30: 0/1/2/4/5/6/7/8/9/10/12/14/16/20/25/30 s
4.The operating time is the time it takes for the safety contact to close after the safety inputs and feedback-reset input are turned ON. Not including bounce time.
5.This is in normal operation. When executing non-regular self-diagnosis for Safety output circuit, G9SE operating time become 500 ms max..
| Feature Name | Feature Value |
|---|---|
| Stop category according to IEC 60204 (EF007498) | 0 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Model (EF000010) | Basic device |
| Evaluation inputs (EF008245) | One- and two-channel |
| Type of electric connection (EF003961) | Spring clamp connection |
| SIL according to IEC 61508 (EF009889) | 3 |
| Voltage type (supply voltage) (EF002991) | DC |
| With approval for TÜV (EFDE0031) | Yes |
| Suitable for monitoring of proximity switches (EF007267) | Yes |
| Suitable for monitoring of emergency-stop circuits (EF007268) | Yes |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | Yes |
| With detachable clamps (EF003340) | No |
| With start input (EF003342) | Yes |
| With muting function (EF004057) | No |
| Suitable for monitoring of valves (EF007272) | Yes |
| With approval according to UL (EF001783) | Yes |
| Suitable for monitoring of tactile sensors (EF007271) | No |
| With feedback circuit (EF003343) | Yes |
| Suitable for monitoring of magnetic switches (EF007266) | Yes |
| Suitable for monitoring of position switches (EF007270) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| With approval for BG BIA (EF004145) | No |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Width (EF000008) | 17.5 mm |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Height (EF000040) | 133 mm |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 2 |
| Rated switch current (EF006706) | 5 A |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 1 |
| Depth (EF000049) | 111.6 mm |
| Operating voltage DC (EF008208) | 0 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Supply voltage DC (EF007534) | 20.4 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
