G70V-ZOM16P G70V1007D G70VZOM16P OMRON Block 16 points for G2RV/G3RV plc Output NPN Push-in+ View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

G70V-ZOM16P G70V1007D G70VZOM16P OMRON Block 16 points for G2RV/G3RV plc Output NPN Push-in+

G70V-ZOM16P

G70V1007D

G70VZOM16P

OMRON

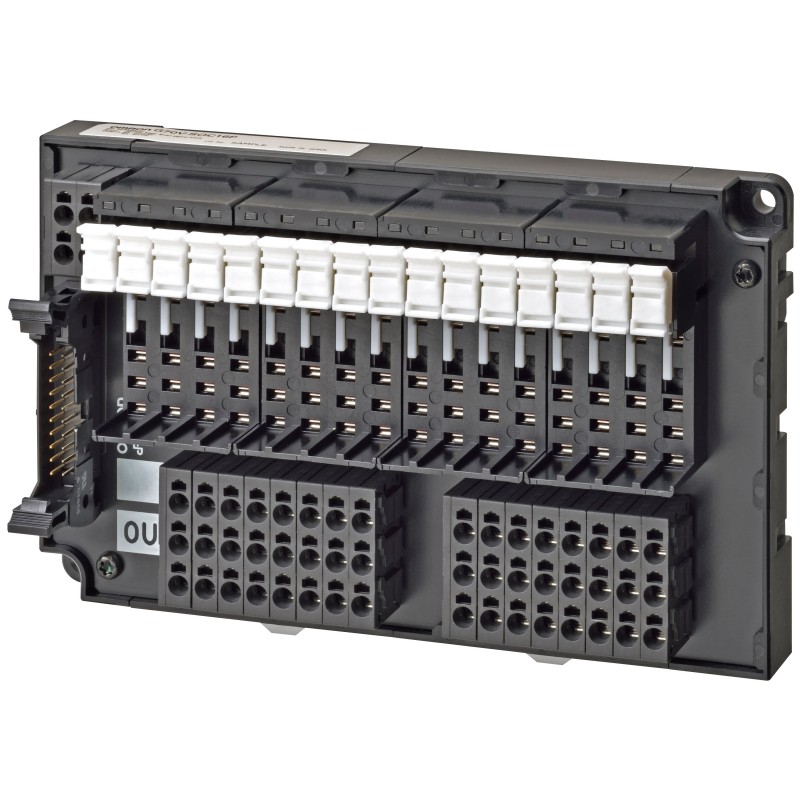

Block 16 points for G2RV/G3RV plc Output NPN Push-in+

I/O terminal socket,PLC Output, 16 points (requires G2V/3RV relays), NPN(+ common), Push-in plus terminals

More details


PLC's > Interface module

Industrial Relays > Accessories Industrial Relays

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $131.16
Unit price: $131.16
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


  • I/O relay terminals with 16 points to mount G2RV slim I/O relays
  • Push-In Plus technology used to save wiring work in comparison with traditional screw terminals
  • Work is reduced ever further with one-step cable connection to the PLC
  • Diode provided for coil surge absorption
  • Operation indicators for immediate recognition of I/O signal status
  • Accepts G3RV Slim I/O SSRs
  • DIN Track or screw mounting

Specifications & ordering info

Ordering information

I/O relay terminal

Terminals

Type

Points

Internal I/O circuit common

Rated voltage

Order code

Push-in plus technology

Input1

16

NPN (- common)

24 VDC

G70V-SID16P

PNP (+ common)

G70V-SID16P-1

Output2

NPN (+ common)

G70V-SOC16P

PNP (- common)

G70V-SOC16P-1

Relay terminal sockets

Applicable I/O Relay Terminal

Type

Common Processing in Connector

Order code

G70V-SID16P

Input

NPN (- common)

G70V-ZID16P

G70V-SID16P-1

PNP (+ common)

G70V-ZID16P-1

G70V-SOC16P

Output

NPN (+ common)

G70V-ZOM16P

G70V-SOC16P-1

PNP (- common)

G70V-ZOM16P-1

Note: Relays are not mounted to the G70V-ZID/ZOM16P(-1) Relay Terminal Sockets. Combine the Relay Terminal Sockets with Slim I/O Relays or Slim I/O SSRs.

Accessories

Mountable Relays

Applicable I/O Relay Terminal

Type

Classification

Order code

G70V-SID16P(-1)

Input

Slim I/O Relays3

G2RV-1-S-AP-G DC21

G70V-SOC16P(-1)

Output

Slim I/O Relays

No Latching Lever4

G2RV-1-S-G DC21

Latching Lever

G2RV-1-SI-G DC21

Slim I/O SSRs

For AC

Zero cross function

G3RV-202S DC24

No zero cross function

G3RV-202SL DC24

For DC

G3RV-D03SL DC24

Note: Note: To use Slim I/O SSRs, either remove the Slim I/O Relays to mount them or order a Relay Terminal Socket and I/O SSRs separately and combine them.

When ordering, designate the rated voltage.

Labels

Minimum order (sheet) (quantity per sheet)

Order code

5 (1 sheet/72 pieces)

XW5Z-P2.5LB2

Parts for DIN Track Mounting

Type

Minimum order (quantity)

Order code

DIN Tracks

1 m

-

PFP-100N

0.5 m

PFP-50N

End Plate

10

PFP-M

Spacer

PFP-S

Refer to your OMRON website for details on the PFP-⬜.

Applicable cables

Name

Appearance

Cable length L (mm)

Applicable connectors

Order code

Cables with Loose Wires and Crimp Terminals
XW2Z-RY_C

16 I/O points


1,000

Various devices

XW2Z-RY100C

1,500

XW2Z-RY150C

2,000

XW2Z-RY200C

3,000

XW2Z-RY300C

5,000

XW2Z-RY500C

Cables with Loose Wires
XW2Z-RA_C

16 I/O points


2,000

Various devices

XW2Z-RA200C

5,000

XW2Z-RA500C

Cables with Connectors (1:1)
XW2Z-R_C

16 I/O points


500

PLC I/O Units with
Fujitsu connectors (1:1)

XW2Z-R50C

1,000

XW2Z-R100C

1,500

XW2Z-R150C

2,000

XW2Z-R200C

3,000

XW2Z-R300C

5,000

XW2Z-R500C

Cables with Connectors (1:2)
XW2Z-RI_C-_,
XW2Z-RO_C-_

32 input points


(A) 1,000

(B) 750

PLC I/O Units with
Fujitsu connectors (1:2)

XW2Z-RI100C-75

(A) 1,500

(B) 1,000

XW2Z-RI150C-100

(A) 1,500

(B) 1,250

XW2Z-RI150C-125

(A) 2,000

(B) 1,750

XW2Z-RI200C-175

(A) 3,000

(B) 2,750

XW2Z-RI300C-275

(A) 5,000

(B) 4,750

XW2Z-RI500C-475

32 output points

(A) 1,000

(B) 750

XW2Z-RO100C-75

(A) 1,500

(B) 1,000

XW2Z-RO150C-100

(A) 1,500

(B) 1,250

XW2Z-RO150C-125

(A) 2,000

(B) 1,500

XW2Z-RO200C-150

(A) 2,000

(B) 1,750

XW2Z-RO200C-175

(A) 3,000

(B) 2,750

XW2Z-RO300C-275

(A) 5,000

(B) 4,750

XW2Z-RO500C-475

Cables with Connectors (1:3)
XW2Z-R_C-_-_

48 I/O points


(A) 1,500

(B) 1,250

(C) 1,000

PLC I/O Units with
Fujitsu connectors (1:3)

XW2Z-R150C-125-100

(A) 2,000

(B) 1,750

(C) 1,500

XW2Z-R200C-175-150

(A) 3,000

(B) 2,750

(C) 2,500

XW2Z-R300C-275-250

Cables with Connectors (1:1)
XW2Z-RI_C,
XW2Z-RO_C

16 input points


250

PLC I/O Units with
MIL connectors (1:1)

XW2Z-RI25C

500

XW2Z-RI50C

16 output points

250

XW2Z-RO25C

500

XW2Z-RO50C

Cables with Connectors (1:2)
XW2Z-RI_-_-D1, XW2Z-RO_-_-D1, XW2Z-RM_-_-D1, XW2Z-RI_-_-D2, XW2Z-RM_-_-D2

32 input points


(A) 500

(B) 250

PLC I/O Units with
MIL connectors (NPN) (1:2)

XW2Z-RI50-25-D1

(A) 750

(B) 500

XW2Z-RI75-50-D1

32 output points

(A) 500

(B) 250

XW2Z-RO50-25-D1

(A) 750

(B) 500

XW2Z-RO75-50-D1

16 input points/
16 output points

(A) 500

(B) 250

XW2Z-RM50-25-D1

(A) 750

(B) 500

XW2Z-RM75-50-D1

32 input points

(A) 500

(B) 250

PLC I/O Units with
MIL connectors (PNP) (1:2)

XW2Z-RI50-25-D2

(A) 750

(B) 500

XW2Z-RI75-50-D2

16 input points/
16 output points

(A) 500

(B) 250

XW2Z-RM50-25-D2

(A) 750

(B) 500

XW2Z-RM75-50-D2

Mitsubishi Electric
PLC Connecting Cables
XW2Z-RI_C-_-MN, XW2Z-RO_C-_-MN

32 input points


(A) 1,000

(B) 750

Mitsubishi Electric PLCs with 32-point connectors (1:2)

For inputs:
AX42, A1SX41, A1SX42
For outputs:
AY42, A1SY41, A1SY42

XW2Z-RI100C-75-MN

(A) 1,500

(B) 1,250

XW2Z-RI150C-125-MN

(A) 2,000

(B) 1,750

XW2Z-RI200C-175-MN

(A) 3,000

(B) 2,750

XW2Z-RI300C-275-MN

32 output points

(A) 1,000

(B) 750

XW2Z-RO100C-75-MN

(A) 1,500

(B) 1,250

XW2Z-RO150C-125-MN

(A) 2,000

(B) 1,500

XW2Z-RO200C-150-MN

(A) 2,000

(B) 1,750

XW2Z-RO200C-175-MN

(A) 3,000

(B) 2,750

XW2Z-RO300C-275-MN

Schneider Electric
PLC Connecting Cables
XW2Z-R_C-SCH-_

32 input points


500

Schneider Electric PLCs with 32-point connectors (1:2)

For inputs:
140 DDI 353 00
For outputs:
140 DDO 353 00

XW2Z-R050C-SCH-A

1,000

XW2Z-R100C-SCH-A

2,000

XW2Z-R200C-SCH-A

3,000

XW2Z-R300C-SCH-A

5,000

XW2Z-R500C-SCH-A

32 output points

500

XW2Z-R050C-SCH-B

1,000

XW2Z-R100C-SCH-B

2,000

XW2Z-R200C-SCH-B

3,000

XW2Z-R300C-SCH-B

5,000

XW2Z-R500C-SCH-B

16 input points


500

Schneider Electric PLCs with 16-point connectors (1:1)

For inputs:
BMX DDI 1602
For outputs:
BMX DDO 1602

XW2Z-R050C-SCH-C

1,000

XW2Z-R100C-SCH-C

2,000

XW2Z-R200C-SCH-C

3,000

XW2Z-R300C-SCH-C

5,000

XW2Z-R500C-SCH-C

16 output points

500

XW2Z-R050C-SCH-D

1,000

XW2Z-R100C-SCH-D

2,000

XW2Z-R200C-SCH-D

3,000

XW2Z-R300C-SCH-D

5,000

XW2Z-R500C-SCH-D

Siemens
PLC Connecting Cables
XW2Z-R_C-SIM-_

32 input points


500

Siemens PLCs with
32-point connectors (1:2)

For inputs:
6ES7 321-1BL00-0AA0
For outputs:
6ES7 322-1BL00-0AA0

XW2Z-R050C-SIM-A

1,000

XW2Z-R100C-SIM-A

2,000

XW2Z-R200C-SIM-A

3,000

XW2Z-R300C-SIM-A

5,000

XW2Z-R500C-SIM-A

32 output points

500

XW2Z-R050C-SIM-B

1,000

XW2Z-R100C-SIM-B

2,000

XW2Z-R200C-SIM-B

3,000

XW2Z-R300C-SIM-B

5,000

XW2Z-R500C-SIM-B

16 input points


500

Siemens PLCs with
16-point connectors (1:1)

For inputs:
6ES7 321-1BH02-0AA0

XW2Z-R050C-SIM-C

1,000

XW2Z-R100C-SIM-C

2,000

XW2Z-R200C-SIM-C

3,000

XW2Z-R300C-SIM-C

5,000

XW2Z-R500C-SIM-C

32 input points


500

Siemens PLCs with
32-point connectors (1:2)

For inputs:
6ES7 421-1BL-0AA0
For outputs:
6ES7 422-1BL-0AA0

XW2Z-R050C-SIM-D

1,000

XW2Z-R100C-SIM-D

2,000

XW2Z-R200C-SIM-D

3,000

XW2Z-R300C-SIM-D

5,000

XW2Z-R500C-SIM-D

32 output points

500

XW2Z-R050C-SIM-E

1,000

XW2Z-R100C-SIM-E

2,000

XW2Z-R200C-SIM-E

3,000

XW2Z-R300C-SIM-E

5,000

XW2Z-R500C-SIM-E

Further more information on the line-up and specifications of connecting cables, parts for DIN track mounting and labels, please enter “R242” in the search field on our website industrial.omron.eu

Specifications

Item

Model

G70V-SID16P(-1)

(Input, DC coil)

G70V-SOC16P(-1)

(output, DC coil)

Coil Ratings5

Rated voltage (V)6

24 VDC

Rated current (mA)2,7

13.3

Coil resistance (Ω)

1575

Must operate of rated voltage

80% max.

Must release of rated voltage

10% min.

Maximum voltage of rated voltage8

110%

Power consumption (mW)

Approx. 280

Contact form

SPST-NO × 16

SPDT × 16

Contact material

Ag alloy + Au plating

Ag alloy

Contact resistance9

150 mΩmax.

Must Operate time10

20 ms max.

Release time6

40 ms max.

Max. switching frequency

Mechanical limit

18,000 operations/hour

At rated load

1,800 operations/hr (under rated load)

Insulation resistance

100 mΩmax.

Dielectric strength

Between coil and contacts: 2,500 VAC for 1 min

Ambient operating temperature

−40 to 55°C (with no icing or condensation)

LED color

Power supply

Green

I/O

Yellow

Size in mm (H × W × D)

90×143×56 (max.)

Weight

Approx. 350 g

Approx. 370 g

1.Mountable Relays: G2RV-1-S-AP-G DC21V

2.Mountable Relays: G2RV-1-S-G DC21V

3.G2RV-1-S-AP-G Slim I/O Relays are mounted to G70V-SID16P(- 1) I/O Relay Terminals as a standard feature.

4.G2RV-1-S-G Slim I/O Relays are mounted to G70V-SOC16P(- 1) I/O Relay Terminals as a standard feature.

5.The operating characteristics are measured at a coil temperature of 23°C.

6.Measured at a coil temperature of 23°C with a tolerance of ±15% for coil resistance.

7.The rated current includes the current for the indicators on the I/O relay terminal.

8.The value for maximum voltage is the maximum value within the allowable voltage fluctuation range for the relay coil’s operating power supply. Continuous operation at this voltage is not within product specifications.

9.Measurement condition: 1 A at 5 VDC

10.Ambient temperature: 23°C
