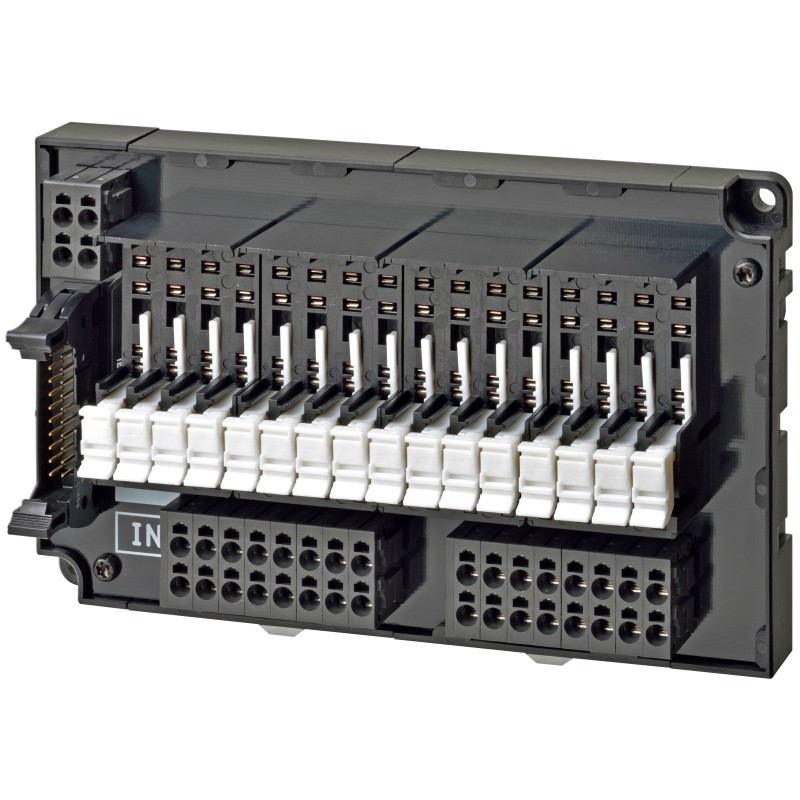

G70V-ZID16P G70V1005H G70VZID16P OMRON Block 16 points for G2RV/G3RV Input plc NPN Push-in+

Name: G70V-ZID16P G70V1005H G70VZID16P OMRON Block 16 points for G2RV/G3RV Input plc NPN Push-in+
Brand: OMRON
SKU: OMRG70V1005H
Price: 136.09 USD
Availability: OutOfStock

0/5 - 0 Opiniones

Reference: G70V-ZID16P

Code: G70V1005H

Catalog Number: G70VZID16P

Manufacturer: OMRON

Description:

Block 16 points for G2RV/G3RV Input plc NPN Push-in+

Block 16 points for G2RV/G3RV NPN Push-in+ plc input

Relay input block base, 16 points (requires G2V/3RV relays), NPN(- common), Push-in plus terminals

More details

Categories:
PLC's > Interface module

Industrial Relays > Accessories Industrial Relays

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Guarantee, repair and return.

Total: $136.09

Unit price: $136.09

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers. Login or register and prices will be updated.

Calculate price by quantity

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products

Best sellers

▲

More info

▲

I/O relay terminals with 16 points to mount G2RV slim I/O relays
Push-In Plus technology used to save wiring work in comparison with traditional screw terminals
Work is reduced ever further with one-step cable connection to the PLC
Diode provided for coil surge absorption
Operation indicators for immediate recognition of I/O signal status
Accepts G3RV Slim I/O SSRs
DIN Track or screw mounting

Specifications & ordering info

Ordering information

I/O relay terminal

Terminals	Type	Points	Internal I/O circuit common	Rated voltage	Order code
Push-in plus technology	Input1	16	NPN (- common)	24 VDC	G70V-SID16P
	Input1		PNP (+ common)		G70V-SID16P-1
	Output2		NPN (+ common)		G70V-SOC16P
	Output2		PNP (- common)		G70V-SOC16P-1

Relay terminal sockets

Applicable I/O Relay Terminal	Type	Common Processing in Connector	Order code
G70V-SID16P	Input	NPN (- common)	G70V-ZID16P
G70V-SID16P-1	Input	PNP (+ common)	G70V-ZID16P-1
G70V-SOC16P	Output	NPN (+ common)	G70V-ZOM16P
G70V-SOC16P-1	Output	PNP (- common)	G70V-ZOM16P-1

Note: Relays are not mounted to the G70V-ZID/ZOM16P(-1) Relay Terminal Sockets. Combine the Relay Terminal Sockets with Slim I/O Relays or Slim I/O SSRs.

Accessories

Mountable Relays

Applicable I/O Relay Terminal	Type	Classification			Order code
G70V-SID16P(-1)	Input	Slim I/O Relays3			G2RV-1-S-AP-G DC21
G70V-SOC16P(-1)	Output	Slim I/O Relays	No Latching Lever4		G2RV-1-S-G DC21
		Slim I/O Relays	Latching Lever		G2RV-1-SI-G DC21
		Slim I/O SSRs	For AC	Zero cross function	G3RV-202S DC24
			For AC	No zero cross function	G3RV-202SL DC24
			For DC		G3RV-D03SL DC24

Note: Note: To use Slim I/O SSRs, either remove the Slim I/O Relays to mount them or order a Relay Terminal Socket and I/O SSRs separately and combine them.

When ordering, designate the rated voltage.

Labels

Minimum order (sheet) (quantity per sheet)	Order code
5 (1 sheet/72 pieces)	XW5Z-P2.5LB2

Parts for DIN Track Mounting

Type		Minimum order (quantity)	Order code
DIN Tracks	1 m	-	PFP-100N
DIN Tracks	0.5 m	-	PFP-50N
End Plate		10	PFP-M
Spacer		10	PFP-S

Refer to your OMRON website for details on the PFP-⬜.

Applicable cables

Name		Cable length L (mm)				Applicable connectors	Order code
Cables with Loose Wires and Crimp Terminals XW2Z-RY_C	16 I/O points	1,000				Various devices	XW2Z-RY100C
		1,500					XW2Z-RY150C
		2,000					XW2Z-RY200C
		3,000					XW2Z-RY300C
		5,000					XW2Z-RY500C
Cables with Loose Wires XW2Z-RA_C	16 I/O points	2,000				Various devices	XW2Z-RA200C
Cables with Loose Wires XW2Z-RA_C	16 I/O points	5,000				Various devices	XW2Z-RA500C
Cables with Connectors (1:1) XW2Z-R_C	16 I/O points	500				PLC I/O Units with Fujitsu connectors (1:1)	XW2Z-R50C
		1,000					XW2Z-R100C
		1,500					XW2Z-R150C
		2,000					XW2Z-R200C
		3,000					XW2Z-R300C
		5,000					XW2Z-R500C
Cables with Connectors (1:2) XW2Z-RI_C-_, XW2Z-RO_C-_	32 input points	(A) 1,000		(B) 750		PLC I/O Units with Fujitsu connectors (1:2)	XW2Z-RI100C-75
		(A) 1,500		(B) 1,000			XW2Z-RI150C-100
		(A) 1,500		(B) 1,250			XW2Z-RI150C-125
		(A) 2,000		(B) 1,750			XW2Z-RI200C-175
		(A) 3,000		(B) 2,750			XW2Z-RI300C-275
		(A) 5,000		(B) 4,750			XW2Z-RI500C-475
	32 output points	(A) 1,000		(B) 750			XW2Z-RO100C-75
		(A) 1,500		(B) 1,000			XW2Z-RO150C-100
		(A) 1,500		(B) 1,250			XW2Z-RO150C-125
		(A) 2,000		(B) 1,500			XW2Z-RO200C-150
		(A) 2,000		(B) 1,750			XW2Z-RO200C-175
		(A) 3,000		(B) 2,750			XW2Z-RO300C-275
		(A) 5,000		(B) 4,750			XW2Z-RO500C-475
Cables with Connectors (1:3) XW2Z-R_C-_-_	48 I/O points	(A) 1,500	(B) 1,250		(C) 1,000	PLC I/O Units with Fujitsu connectors (1:3)	XW2Z-R150C-125-100
		(A) 2,000	(B) 1,750		(C) 1,500		XW2Z-R200C-175-150
		(A) 3,000	(B) 2,750		(C) 2,500		XW2Z-R300C-275-250
Cables with Connectors (1:1) XW2Z-RI_C, XW2Z-RO_C	16 input points	250				PLC I/O Units with MIL connectors (1:1)	XW2Z-RI25C
	16 input points	500					XW2Z-RI50C
	16 output points	250					XW2Z-RO25C
	16 output points	500					XW2Z-RO50C
Cables with Connectors (1:2) XW2Z-RI_-_-D1, XW2Z-RO_-_-D1, XW2Z-RM_-_-D1, XW2Z-RI_-_-D2, XW2Z-RM_-_-D2	32 input points	(A) 500		(B) 250		PLC I/O Units with MIL connectors (NPN) (1:2)	XW2Z-RI50-25-D1
	32 input points	(A) 750		(B) 500			XW2Z-RI75-50-D1
	32 output points	(A) 500		(B) 250			XW2Z-RO50-25-D1
	32 output points	(A) 750		(B) 500			XW2Z-RO75-50-D1
	16 input points/ 16 output points	(A) 500		(B) 250			XW2Z-RM50-25-D1
	16 input points/ 16 output points	(A) 750		(B) 500			XW2Z-RM75-50-D1
	32 input points	(A) 500		(B) 250		PLC I/O Units with MIL connectors (PNP) (1:2)	XW2Z-RI50-25-D2
	32 input points	(A) 750		(B) 500			XW2Z-RI75-50-D2
	16 input points/ 16 output points	(A) 500		(B) 250			XW2Z-RM50-25-D2
	16 input points/ 16 output points	(A) 750		(B) 500			XW2Z-RM75-50-D2
Mitsubishi Electric PLC Connecting Cables XW2Z-RI_C-_-MN, XW2Z-RO_C-_-MN	32 input points	(A) 1,000		(B) 750		Mitsubishi Electric PLCs with 32-point connectors (1:2) For inputs: AX42, A1SX41, A1SX42 For outputs: AY42, A1SY41, A1SY42	XW2Z-RI100C-75-MN
		(A) 1,500		(B) 1,250			XW2Z-RI150C-125-MN
		(A) 2,000		(B) 1,750			XW2Z-RI200C-175-MN
		(A) 3,000		(B) 2,750			XW2Z-RI300C-275-MN
	32 output points	(A) 1,000		(B) 750			XW2Z-RO100C-75-MN
		(A) 1,500		(B) 1,250			XW2Z-RO150C-125-MN
		(A) 2,000		(B) 1,500			XW2Z-RO200C-150-MN
		(A) 2,000		(B) 1,750			XW2Z-RO200C-175-MN
		(A) 3,000		(B) 2,750			XW2Z-RO300C-275-MN
Schneider Electric PLC Connecting Cables XW2Z-R_C-SCH-_	32 input points	500				Schneider Electric PLCs with 32-point connectors (1:2) For inputs: 140 DDI 353 00 For outputs: 140 DDO 353 00	XW2Z-R050C-SCH-A
		1,000					XW2Z-R100C-SCH-A
		2,000					XW2Z-R200C-SCH-A
		3,000					XW2Z-R300C-SCH-A
		5,000					XW2Z-R500C-SCH-A
	32 output points	500					XW2Z-R050C-SCH-B
		1,000					XW2Z-R100C-SCH-B
		2,000					XW2Z-R200C-SCH-B
		3,000					XW2Z-R300C-SCH-B
		5,000					XW2Z-R500C-SCH-B
	16 input points	500				Schneider Electric PLCs with 16-point connectors (1:1) For inputs: BMX DDI 1602 For outputs: BMX DDO 1602	XW2Z-R050C-SCH-C
		1,000					XW2Z-R100C-SCH-C
		2,000					XW2Z-R200C-SCH-C
		3,000					XW2Z-R300C-SCH-C
		5,000					XW2Z-R500C-SCH-C
	16 output points	500					XW2Z-R050C-SCH-D
		1,000					XW2Z-R100C-SCH-D
		2,000					XW2Z-R200C-SCH-D
		3,000					XW2Z-R300C-SCH-D
		5,000					XW2Z-R500C-SCH-D
Siemens PLC Connecting Cables XW2Z-R_C-SIM-_	32 input points	500				Siemens PLCs with 32-point connectors (1:2) For inputs: 6ES7 321-1BL00-0AA0 For outputs: 6ES7 322-1BL00-0AA0	XW2Z-R050C-SIM-A
		1,000					XW2Z-R100C-SIM-A
		2,000					XW2Z-R200C-SIM-A
		3,000					XW2Z-R300C-SIM-A
		5,000					XW2Z-R500C-SIM-A
	32 output points	500					XW2Z-R050C-SIM-B
		1,000					XW2Z-R100C-SIM-B
		2,000					XW2Z-R200C-SIM-B
		3,000					XW2Z-R300C-SIM-B
		5,000					XW2Z-R500C-SIM-B
	16 input points	500				Siemens PLCs with 16-point connectors (1:1) For inputs: 6ES7 321-1BH02-0AA0	XW2Z-R050C-SIM-C
		1,000					XW2Z-R100C-SIM-C
		2,000					XW2Z-R200C-SIM-C
		3,000					XW2Z-R300C-SIM-C
		5,000					XW2Z-R500C-SIM-C
	32 input points	500				Siemens PLCs with 32-point connectors (1:2) For inputs: 6ES7 421-1BL-0AA0 For outputs: 6ES7 422-1BL-0AA0	XW2Z-R050C-SIM-D
		1,000					XW2Z-R100C-SIM-D
		2,000					XW2Z-R200C-SIM-D
		3,000					XW2Z-R300C-SIM-D
		5,000					XW2Z-R500C-SIM-D
	32 output points	500					XW2Z-R050C-SIM-E
		1,000					XW2Z-R100C-SIM-E
		2,000					XW2Z-R200C-SIM-E
		3,000					XW2Z-R300C-SIM-E
		5,000					XW2Z-R500C-SIM-E

Further more information on the line-up and specifications of connecting cables, parts for DIN track mounting and labels, please enter “R242” in the search field on our website industrial.omron.eu

Specifications

Item	Model	G70V-SID16P(-1) (Input, DC coil)	G70V-SOC16P(-1) (output, DC coil)
Coil Ratings5	Rated voltage (V)6	24 VDC
	Rated current (mA)2,7	13.3
	Coil resistance (Ω)	1575
	Must operate of rated voltage	80% max.
	Must release of rated voltage	10% min.
	Maximum voltage of rated voltage8	110%
	Power consumption (mW)	Approx. 280
Contact form		SPST-NO × 16	SPDT × 16
Contact material		Ag alloy + Au plating	Ag alloy
Contact resistance9		150 mΩmax.
Must Operate time10		20 ms max.
Release time6		40 ms max.
Max. switching frequency	Mechanical limit	18,000 operations/hour
Max. switching frequency	At rated load	1,800 operations/hr (under rated load)
Insulation resistance		100 mΩmax.
Dielectric strength		Between coil and contacts: 2,500 VAC for 1 min
Ambient operating temperature		−40 to 55°C (with no icing or condensation)
LED color	Power supply	Green
LED color	I/O	Yellow
Size in mm (H × W × D)		90×143×56 (max.)
Weight		Approx. 350 g	Approx. 370 g

1.Mountable Relays: G2RV-1-S-AP-G DC21V

2.Mountable Relays: G2RV-1-S-G DC21V

3.G2RV-1-S-AP-G Slim I/O Relays are mounted to G70V-SID16P(- 1) I/O Relay Terminals as a standard feature.

4.G2RV-1-S-G Slim I/O Relays are mounted to G70V-SOC16P(- 1) I/O Relay Terminals as a standard feature.

5.The operating characteristics are measured at a coil temperature of 23°C.

6.Measured at a coil temperature of 23°C with a tolerance of ±15% for coil resistance.

7.The rated current includes the current for the indicators on the I/O relay terminal.

8.The value for maximum voltage is the maximum value within the allowable voltage fluctuation range for the relay coil’s operating power supply. Continuous operation at this voltage is not within product specifications.

9.Measurement condition: 1 A at 5 VDC

10.Ambient temperature: 23°C

ETIM for 670562 PLC's (EC002780)
Feature Name	Feature Value
Mounting method (EF000003)	DIN rail (top hat rail) 35 mm
Type of electrical connection, field-sided (EF005525)	Other
Type of electrical connection, control sided (EF008549)	Plug-in connection
Rated voltage (EF000228)	24 V
Rated current (EF000227)	0.05 A
Width (EF000008)	143 mm
Height (EF000040)	90 mm
Number of poles (EF001391)	16
Depth (EF000049)	29.9 mm

Datasheet - PDF

▲

Title:	Size:	Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf	19 Mbytes
PDF CATALOG OMRON 2024 EN.pdf	25 Mbytes
G70V-ZID16P G70VZID16P G70V1005H EN_G70V-SID16P-1.pdf	8 Mbytes
