G3NE-210T-US 12VDC G3NE1140H G3NE210TUSDC12 OMRON 10A 100-240vac Step-by-zero Fototriac 12vdc
G3NE-210T-US 12VDC
G3NE1140H
G3NE210TUSDC12
OMRON
10
10A 100-240vac Step-by-zero Fototriac 12vdc

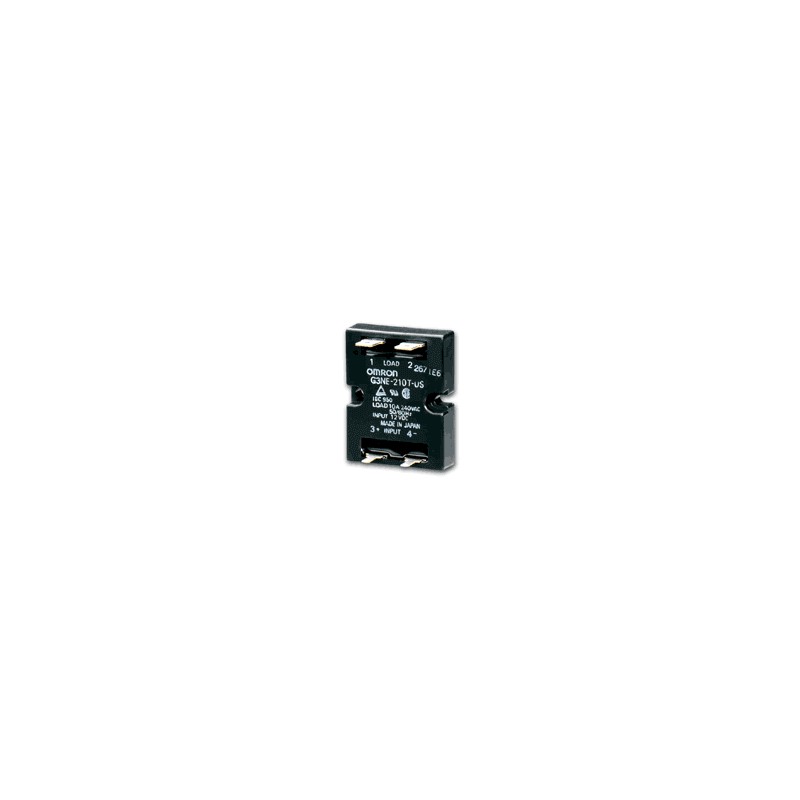

SSR (quick connect), 1 ph, w/o heatsink, 10 A (100 to 240 VAC), zero cross, 12 VDC
Relays > Solid state relay
Solid State Relays > G3N
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Compact, low-cost, SSR switching 5 to 20A
This solid-state relay has a wide load voltage range: 75 to 264VAC. Both 100V and 200V loads can be handled with the same model. Dedicated, compact aluminum PCB and power elements are used. Its built-in varistor effectively absorbs external surges.
- 5-20A output current
- 75-264VAC output voltages
- Built-in varistor
- Quick-connect 110V input and 250V output terminals
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | DC |
| Voltage type for actuating (EF008242) | DC |
| Switching at zero-crossing (EF011956) | Yes |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1 (EF006069) | 10 A |
| Number of phases (EF000351) | 1 |
| Operating voltage DC (EF008208) | 100 V |
| Rated control supply voltage DC (EF003980) | 9.6 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| G3NE-210T-US 12VDC G3NE210TUSDC12 G3NE1140H industrial_relays_brochure_en.pdf | 973 Kbytes |
|
| G3NE-210T-US 12VDC G3NE210TUSDC12 G3NE1140H temperature_controllers_ssrs_brochure_en.pdf | 278 Kbytes |
|
