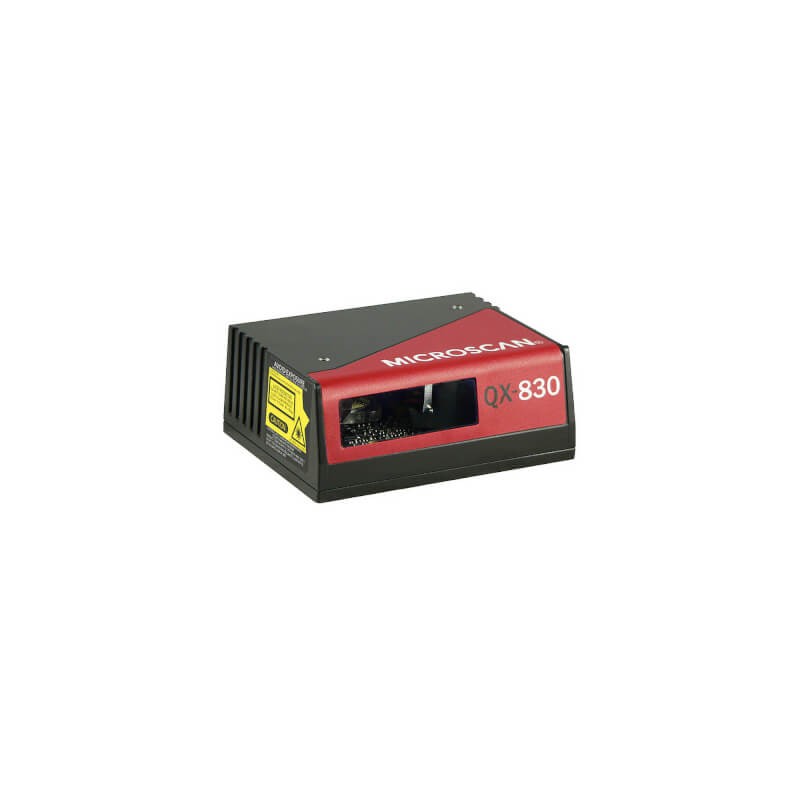

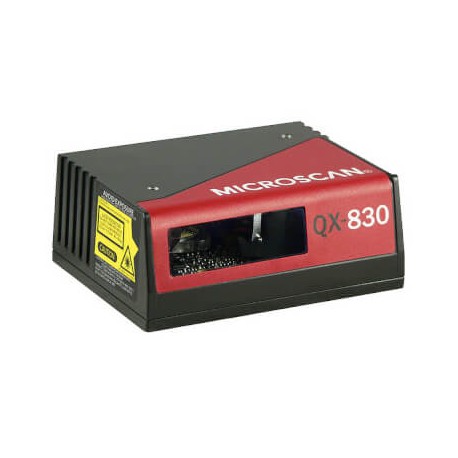

FIS-0830-0004G 3Z4U4360C FIS08300004G,2 OMRON QX-830 Scanner, Line Tracking, LD, Series
FIS-0830-0004G
3Z4U4360C
FIS08300004G.2
OMRON
QX-830 Scanner, Line Tracking, LD, Series
QX-830 Scanner, Raster Line, LD, Serial
Sensors > Matrix code reader
Industrial barcode readers > BarCode Readers and Smart Cameras
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP54 |
| Model (EF000010) | Fix mounted |
| Type of interface (EF006977) | RS-232 |
| Radio standard Bluetooth (EF007178) | No |
| With exchange lens (EF004053) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Max. image capture frequency (EF009809) | 1400 Hz |
| Number of digital outputs (EF001993) | 3 |
| Max. electricity consumption (EF000619) | 0.18 A |
| Max. transmission range (EF001327) | 762 mm |
| Width (EF000008) | 88 mm |
| Nominal voltage DC (EF004221) | 24 V |
| Number of digital inputs (EF001992) | 1 |
| Height (EF000040) | 35 mm |
| Depth (EF000049) | 66 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| FIS-0830-0004G FIS08300004G.2 3Z4U4360C EN_FIS-0830-0004G.pdf | 904 Kbytes |
|
