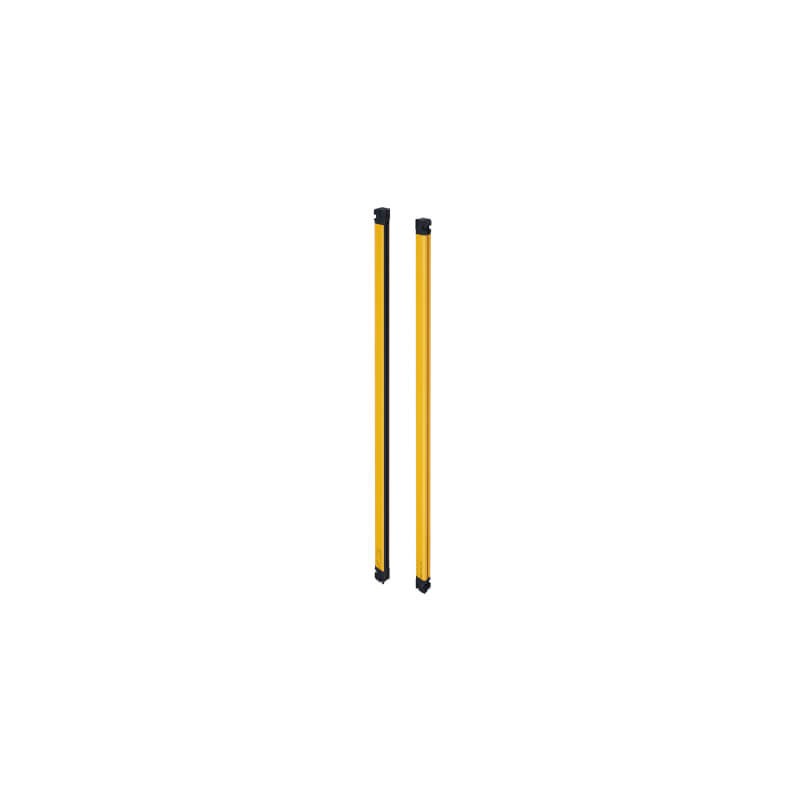

F3SG-4SRA2000-14 F3G28027R F3SG4SRA200014,1 OMRON Safety Light Curtain, F3SG-SRA Advanced, Type 4, 14 mm res..

Sensing methodSafety light curtainType of protectionFinger protectionNumber of beams199Detection capability14 mmSafety field height2000 mmType of safety according to IEC 61496-14Beam spacing10 mmMaximum safety range10 mMinimum operating distance0.3 mKey featuresArea Beam Indicator, Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Vibration detection, Warning zoneDegree of protection (IP)IP65/IP67/IP67GCascadableNumber of protected semiconductor outputs2Number of semiconductor outputs with signalling function1Type of switching output of the OSSDPNP/NPNResponse time18 msWith muting functionWith beam codingCommunication option(s)Bluetooth, IO-Link, USBSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodRoot connector (order separately)Supply voltage DC19.2-28.8 VMax. output current at protected output300 mAAmbient temperature-30-55 °COverall length of sensor2000 mmHeight of sensor2000 mmWidth of sensor32 mmNumber of fixed side-mount brackets3Number of adjustable side-mount brackets3Number of intermediate brackets2

ETIM for 699752 Sensors (EC002549)

Feature Name	Feature Value
Explosion safety category for dust (EF003998)	None
Voltage type (EF000187)	DC
Type of switching output of the OSSD (EF003959)	PNP/NPN
Scope of delivery of the one-way system (EF004032)	Transmitter and receiver
Degree of protection (NEMA) (EF011959)	Other
Degree of protection (IP) (EF005474)	IP67
Type of safety according to IEC 61496-1 (EF004105)	4
Type of interface for safety communication (EF003956)	Other
Type of electric connection (EF003961)	Plug-in connection
Operation agent-safety class (EF003982)	Safety class 3
Explosion safety category for gas (EF003997)	None
Cascadable (EF000507)	Yes
Override possible (EF004061)	Yes
With muting function (EF004057)	Yes
With monitoring function downstream switching devices (EF004052)	Yes
Suitable for safety functions (EF001597)	Yes
Reduced resolution (EF004095)	Yes
With beam coding (EF004114)	Yes
Fade-out possible (EF003955)	Yes
With restart blockage (EF004054)	Yes
Max. output current at protected output (EF004035)	300 mA
Number of protected contact energized outputs (EF003952)	0
Number of semiconductor outputs with signalling function (EF003945)	1
Safety field height (EF004103)	2000 mm
Wavelength of the sensor (EF004132)	870 nm
Detection capability for test bodies (EF003991)	14 mm
Resolution of the light curtain (EF006784)	10 mm
Response time (EF004094)	18 ms
Number of protected semiconductor outputs (EF003951)	2
Transmission range of the safety field (EF004098)	10 m
Switching voltage of OSSD at state "high" (EF004102)	24 V
Width sensor (EF007094)	32 mm
Height of sensor (EF007283)	38 mm
Length of sensor (EF007334)	2000 mm
Number of contact energized outputs with signalling function (EF003946)	0
Rated control supply voltage DC (EF003980)	19.2 V
Ambient temperature (EF002386)	-30 °C
