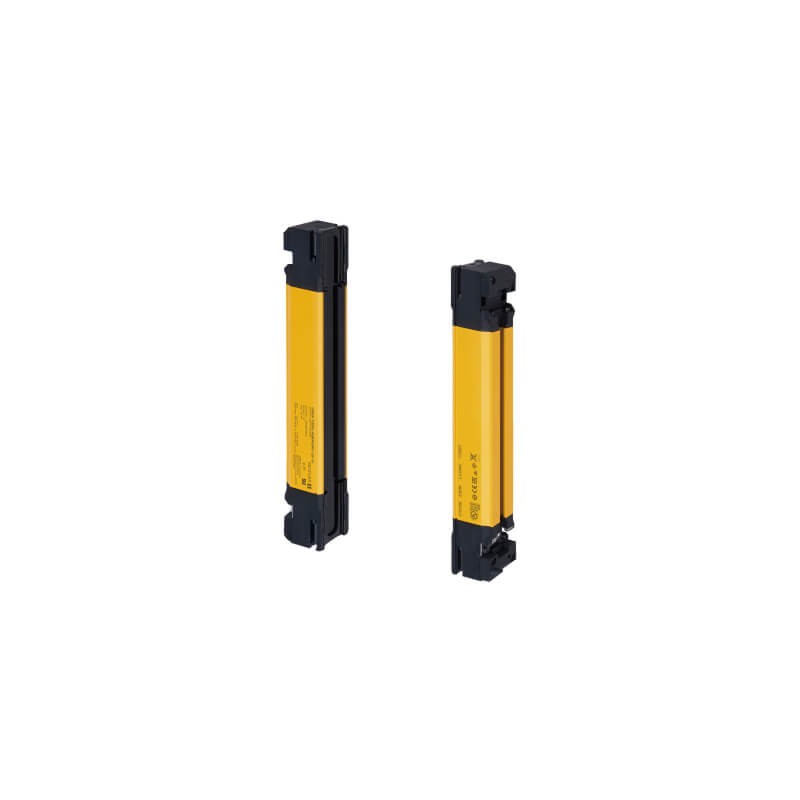

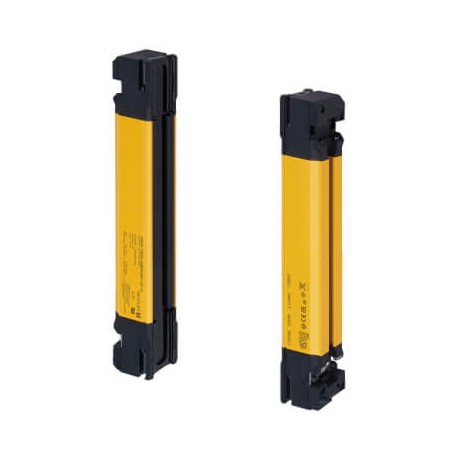

F3SG-4SRA0480-14 F3G28009M F3SG4SRA048014,1 OMRON Safety Light Curtain, F3SG-SRA Advanced, Type 4, 14 mm res..

Sensing methodSafety light curtainType of protectionFinger protectionNumber of beams47Detection capability14 mmSafety field height480 mmType of safety according to IEC 61496-14Beam spacing10 mmMaximum safety range10 mMinimum operating distance0.3 mKey featuresArea Beam Indicator, Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Vibration detection, Warning zoneDegree of protection (IP)IP65/IP67/IP67GCascadableNumber of protected semiconductor outputs2Number of semiconductor outputs with signalling function1Type of switching output of the OSSDPNP/NPNResponse time13 msWith muting functionWith beam codingCommunication option(s)Bluetooth, IO-Link, USBSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodRoot connector (order separately)Supply voltage DC19.2-28.8 VMax. output current at protected output300 mAAmbient temperature-30-55 °COverall length of sensor480 mmHeight of sensor480 mmWidth of sensor32 mmNumber of fixed side-mount brackets2Number of adjustable side-mount brackets2Number of intermediate brackets0

ETIM for 699739 Sensors (EC002549)

Feature Name	Feature Value
Degree of protection (NEMA) (EF011959)	Other
Degree of protection (IP) (EF005474)	IP67
Type of safety according to IEC 61496-1 (EF004105)	4
Type of interface for safety communication (EF003956)	Other
Operation agent-safety class (EF003982)	Safety class 3
Explosion safety category for gas (EF003997)	None
Explosion safety category for dust (EF003998)	None
Voltage type (EF000187)	DC
Type of switching output of the OSSD (EF003959)	PNP/NPN
Scope of delivery of the one-way system (EF004032)	Transmitter and receiver
Type of electric connection (EF003961)	Plug-in connection
Cascadable (EF000507)	Yes
Override possible (EF004061)	Yes
With monitoring function downstream switching devices (EF004052)	Yes
Reduced resolution (EF004095)	Yes
With beam coding (EF004114)	Yes
Fade-out possible (EF003955)	Yes
With restart blockage (EF004054)	Yes
With muting function (EF004057)	Yes
Suitable for safety functions (EF001597)	Yes
Max. output current at protected output (EF004035)	300 mA
Number of semiconductor outputs with signalling function (EF003945)	1
Resolution of the light curtain (EF006784)	10 mm
Switching voltage of OSSD at state "high" (EF004102)	24 V
Height of sensor (EF007283)	38 mm
Number of contact energized outputs with signalling function (EF003946)	0
Number of protected contact energized outputs (EF003952)	0
Safety field height (EF004103)	480 mm
Wavelength of the sensor (EF004132)	870 nm
Detection capability for test bodies (EF003991)	14 mm
Response time (EF004094)	13 ms
Number of protected semiconductor outputs (EF003951)	2
Transmission range of the safety field (EF004098)	10 m
Width sensor (EF007094)	32 mm
Length of sensor (EF007334)	480 mm
Rated control supply voltage DC (EF003980)	19.2 V
Ambient temperature (EF002386)	-30 °C
