F3S-TGR-CL4B-K3C-800
656576
F3STGRCL4BK3C800.1
OMRON
1
Available Ship on today

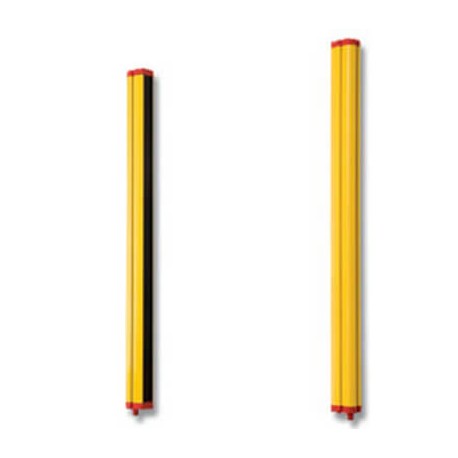

Barrier safety standard Cat 4 Active-Passive 7m 800mm
Safety light curtain, 3 beam, active/passive, body, beam distance 400mm, range 0.5-8m, detection zone 800mm
Safety > TGR Safety Light Courtains
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Type of safety acc. IEC 61496-1 | 4 |
Type of sensor | Body detection |
Detection capability | 400 mm |
Number of protected semiconductor outputs | 2 |
Number of semiconductor outputs with signalling function | 0 |
Maximum safety range | 8 m |
Minimum operating distance | 0.5 m |
Time of reaction | 13 ms |
Cascadable | |
With muting function | |
With beam coding | |
Type of switching output of the OSSD | PNP |
Special function | Active/passive, Interlock |
Scope of delivery | Transmitter and receiver |
Wavelength of the sensor | 880 nm |
Type of electric connection | Connector M12 |
Voltage type | DC |
Max. output current at protected output | 250 mA |
Degree of protection (IP) | IP65 |
Ambient temperature | -10-55 °C |
Title: | Size: | Type: |
---|---|---|
F3S-TGR-CL4B-K3C-800 F3STGRCL4BK3C800.1 656576 ES_F3S-TGR-CL2B-035-450.pdf | 516 Kbytes | |
F3S-TGR-CL4B-K3C-800 F3STGRCL4BK3C800.1 656576 | 240 Kbytes |
