F3S-TGR-CL2B-K3-800 656703 F3S 8043C OMRON Barrier safety standard Cat 2 Body 40m 800mm
F3S-TGR-CL2B-K3-800
656703
F3STGRCL2BK3800.1
OMRON
Barrier safety standard Cat 2 Body 40m 800mm

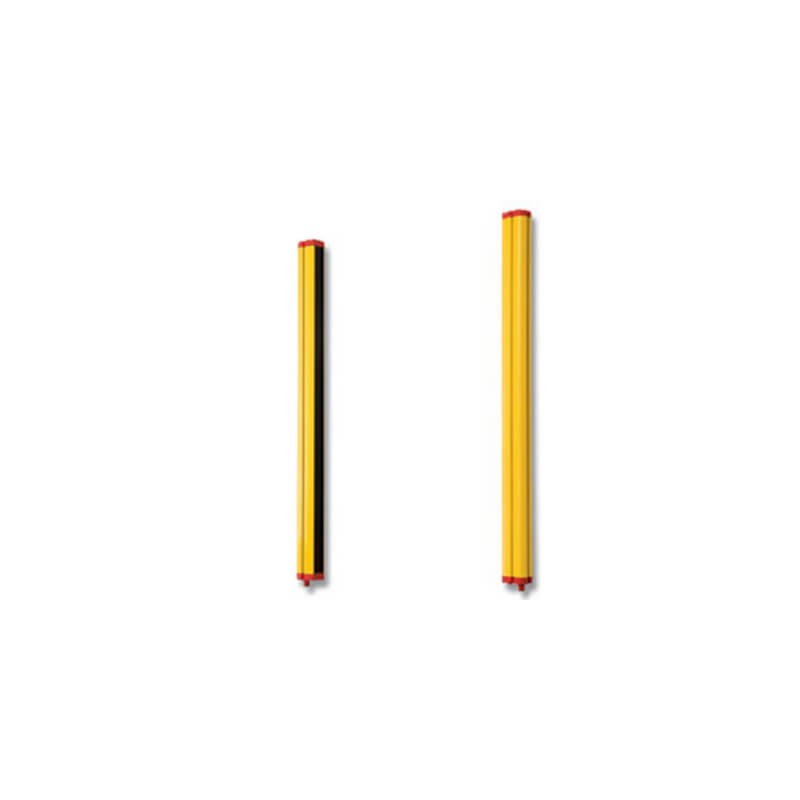

Safety light curtain, 3 beam, active/active, body, beam distance 400mm, range 0.5-40m, detection zone 800mm
Safety > TGR Safety Light Courtains
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Type of safety acc. IEC 61496-1 | 2 |
| Type of sensor | Body detection |
| Detection capability | 400 mm |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 40 m |
| Minimum operating distance | 0.5 m |
| Time of reaction | 13 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Special function | Active/active, Interlock |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 880 nm |
| Type of electric connection | Connector M12 |
| Voltage type | DC |
| Max. output current at protected output | 250 mA |
| Degree of protection (IP) | IP65 |
| Ambient temperature | -10-55 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| F3S-TGR-CL2B-K3-800 F3STGRCL2BK3800.1 656703 ES_F3S-TGR-CL2B-035-450.pdf | 516 Kbytes |
 |
| F3S-TGR-CL2B-K3-800 F3STGRCL2BK3800.1 656703 | 240 Kbytes |
|
