> >>>F39-TGR-KAM AA042772G 419025 OMRON Metal Horizontal Pin F3S-TGR-K
Previous Product Next Product

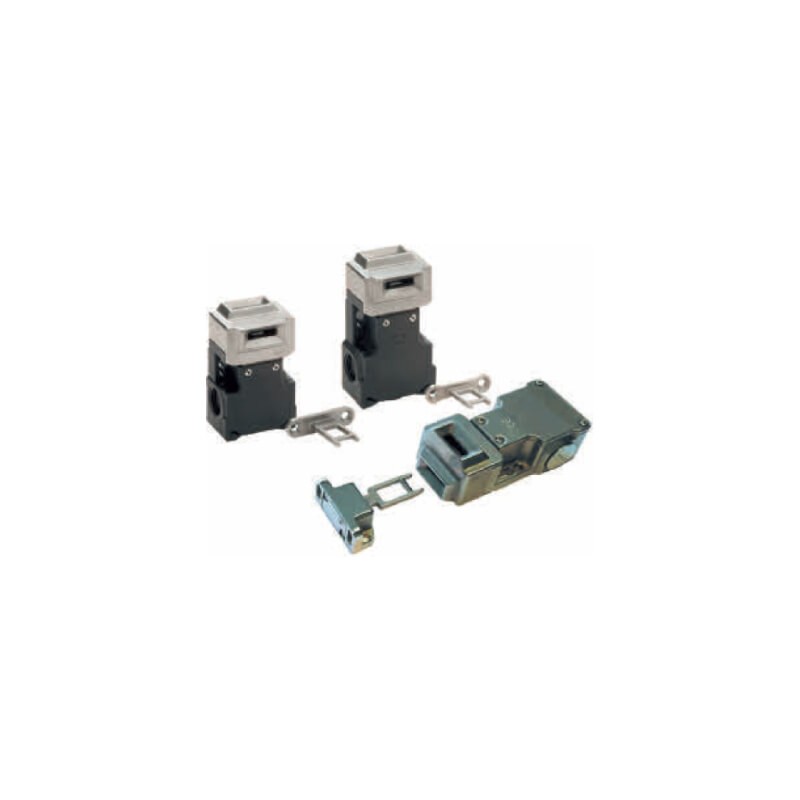

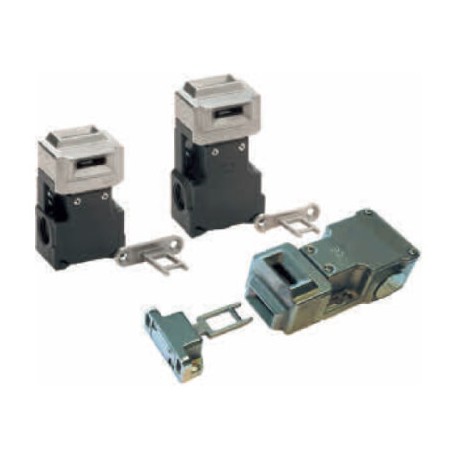

F39-TGR-KAM AA042772G 419025 OMRON Metal Horizontal Pin F3S-TGR-K View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

F39-TGR-KAM AA042772G 419025 OMRON Metal Horizontal Pin F3S-TGR-K

F39-TGR-KAM

AA042772G

F39TGRKAM

OMRON

Available Ship on today

Pin horizontal metal F3S-TGR-K

Key for safety key switch with metal head

More details


Safety > Accessories Safety

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $10.77
Unit price: $10.77

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Features

Safety door switches with stainless steel head or full stainless steel body

This safety door switches use a stainless steel head or even a full stainless steel body to increase the robustness.

  • 2NC/1NO or 3NC contacts
  • Key entry turnable to back side
  • 4 key insertion positions
  • 3 M20 conduit entries
  • Positive break contacts (to IEC 60947-5-1)

Ordering information

Switches

Type

Housing

Conduit

Contacts

Order code


Plastic body with metal head

M20

2NC/1NO

Slow action

F3S-TGR-KM15-21

3NC

Slow action

F3S-TGR-KM15-30


Plastic body with metal head

2NC/2NO

Slow action

F3S-TGR-KM16-22

3NC

Slow action

F3S-TGR-KM16-30


Full stainless steel body

2NC/2NO

Slow action

F3S-TGR-KH16-22

3NC

Slow action

F3S-TGR-KH16-30

Keys (order separately)

Type

Order code

for metal headF3S-TGR-KM15_-KM16_-KH16_rev02-5.png

F39-TGR-KAM

Horizontal mountingF3S-TGR-KM15_-KM16_-KH16_rev02-6.png

F39-TGR-KF

plastic flexibleF3S-TGR-KM15_-KM16_-KH16_rev02-7.png

F39-TGR-KPF

heavy flexibleF3S-TGR-KM15_-KM16_-KH16_rev02-8.png

F39-TGR-KHF

hygienic flexibleF3S-TGR-KM15_-KM16_-KH16_rev02-9.png

F39-TGR-KHFH

Accessories

Item

Remarks

Order code

M20 Gland

Stainless steel 316 for F3S-TGR-KH16 types

F39-TGR-M20

Mounting screws

Set of Torx safety screws (M4, 4 × 30 mm, 4 × 20 mm, 4 × 10 mm; incl. washers and Torx bit)

F39-TGR-N-SCREWS

Specifications

Item

F3S-TGR-KM15

F3S-TGR-KM16

F3S-TGR-KH16

Standards

EN1088, IEC 60947-5-1, EN 60204-1, UL508

EN ISO 13849-1: up to PLe1

EN 62061: up to SIL31

Mechanical reliability B10d

2.5 × 106operations at 100mA load

PFHd

3.44 × 10-8

Proof test interval (Life)

35 years

MTTFd

356 years

Utilization category

AC15 A300 3 A

Thermal current (Ith)

5 A

Rated insulation/Withstand voltages

500 VAC/2,500 VAC

Rated travel for positive opening

8 mm

Actuator entry minimum radius

175 mm standard, 100mm flexible

Maximum approach/Withdrawal speed

600 mm/s

Body dimensions (W × H × D)

54 × 88.4 × 34.5 mm

58 × 100.4 × 34.5 mm

58 × 103.5 × 39.5 mm

Fixing

2 × M5, 40 mm distance

4 × M5, 40 mm distance

Conduit entry

M20

Material

Body

Polyester

Stainless steel 316

Head

Stainless steel 316

Enclosure Protection

IP67

Temperature Range

-25 to 80°C

Vibration

IEC 68-2-6, 10-55 Hz +1 Hz, Excursion: 0.35 mm, 1 octave/min

1.Depending upon system architecture

Datasheet - PDF

▲
Title: Size: Type:
F39-TGR-KAM F39TGRKAM AA042772G f21e_f3s_tgr_km15_km16_kh16_safety_door_switches_stainless_steel_datasheet_en.pdf 722 Kbytes F39-TGR-KAM F39TGRKAM AA042772G f21e_f3s_tgr_km15_km16_kh16_safety_door_switches_stainless_steel_datasheet_en.pdf
