> >>>EE-SX950P-W 1M EESX2214M 378484 OMRON Horseshoe 5mm IR PNP With Light/In Darkness
Previous Product Next Product

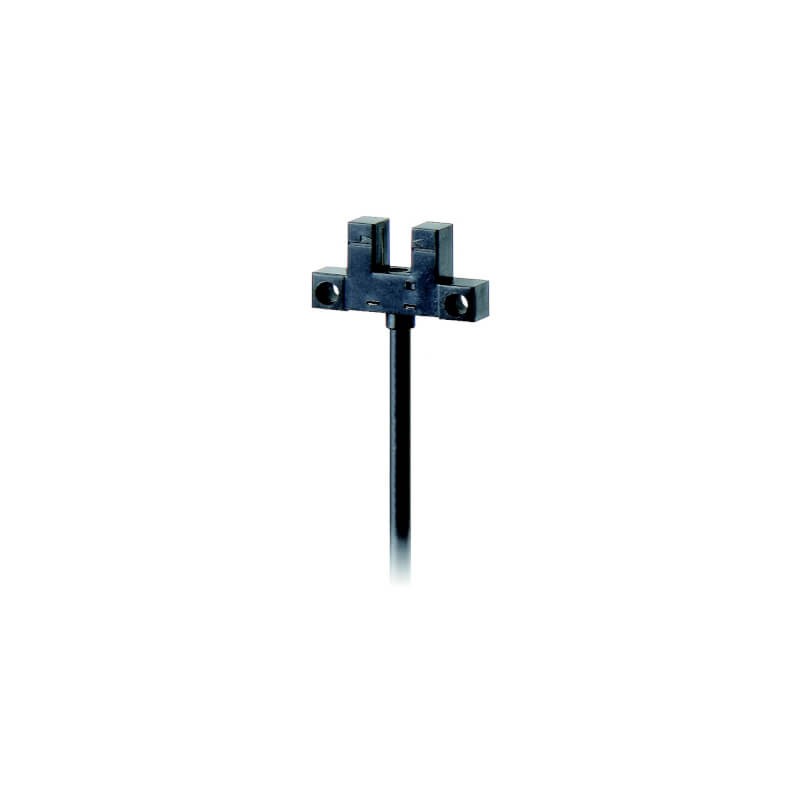

EE-SX950P-W 1M EESX2214M 378484 OMRON Horseshoe 5mm IR PNP With Light/In Darkness View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EE-SX950P-W 1M EESX2214M 378484 OMRON Horseshoe 5mm IR PNP With Light/In Darkness

EE-SX950P-W 1M

EESX2214M

EESX950PW1M

OMRON

Available Ship on today

Horseshoe 5mm IR PNP light/dark

Photo micro sensor, slot type, PNP, 1 m cable

More details


Photoelectric sensors > Photomicrosensors

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $39.22
Unit price: $39.22

Quantity Price
1+$39.22
2+$39.23
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Features

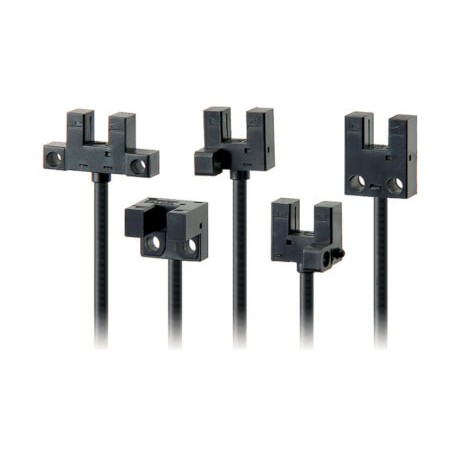

Ultra-compact fork shape Photomicrosensor

The small sized photo microsensors are ideally suited for the detection of machine parts where space is crucial.

  • Mounting with M3 or M2 screws
  • Bright indicator LEDs for high visibility from many directions.
  • Antivalent output (L-ON/D-ON)
  • Load short-circuit protection circuit

Deep slot

ee-sx95 feature prod

Deep slot of 6.5 mm allows higher tolerances in mechanical design.

Ordering information

Sensor type

Sensing distance

Connection method

Operation mode

Shape1

Order code2





NPN output

PNP output

Through-beam with slot

5 mm
(slot width)
(Infrared light)

−

−

1 m3

−

Light-ON

Dark-ON

(2 outputs)

Standard


EE-SX950-W 1M

EE-SX950P-W 1M

L-shaped


EE-SX951-W 1M

EE-SX951P-W 1M

F-shaped


EE-SX952-W 1M

EE-SX952P-W 1M

R-shaped


EE-SX953-W 1M

EE-SX953P-W 1M

U-shaped


EE-SX954-W 1M

EE-SX954P-W 1M

Specifications

Item

Through-beam

Standard

L-shaped

F-shaped

R-shaped

U-shaped

NPN

EE-SX950-W 1M

EE-SX951-W 1M

EE-SX952-W 1M

EE-SX953-W 1M

EE-SX954-W 1M

PNP

EE-SX950P-W 1M

EE-SX951P-W 1M

EE-SX952P-W 1M

EE-SX953P-W 1M

EE-SX954P-W 1M

Slot depth

6.5 mm

Standard sensing object

Opaque: 1.8 × 0.8 mm min.

Light source (wave length)

Infrared LED (940 nm)

Sensing distance (slot width)

5 mm

Power supply voltage

5 to 24 VDC ±10%, ripple (p-p): 10% max.

Protective circuits

Load short-circuit protection

Response frequency

1 kHz min. (3 kHz average)

Ambient temperature

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Degree of protection

IEC60529 IP50

Material

Case

PBT (Polybutylene terephthalate)

Lens

Polycarbonate

1.For detailed shape dimensions refer to datasheet on industrial.omron.eu
2.For 1-m robot cable please exchange “W” by “R” in order code (Example: EE-SX950-R 1M)
3.3 m models are available on request. Please contact your OMRON representative.

Datasheet - PDF

▲
Title: Size: Type:
EE-SX950P-W 1M EESX950PW1M EESX2214M e3c_lda_series_brochure_en.pdf 592 Kbytes EE-SX950P-W 1M EESX950PW1M EESX2214M e3c_lda_series_brochure_en.pdf
EE-SX950P-W 1M EESX950PW1M EESX2214M e435_ee_sx95_compact_pre_wired_photomicrosensor_non_modulated_datasheet_en.pdf 3 Mbytes EE-SX950P-W 1M EESX950PW1M EESX2214M e3c_lda_series_brochure_en.pdf
