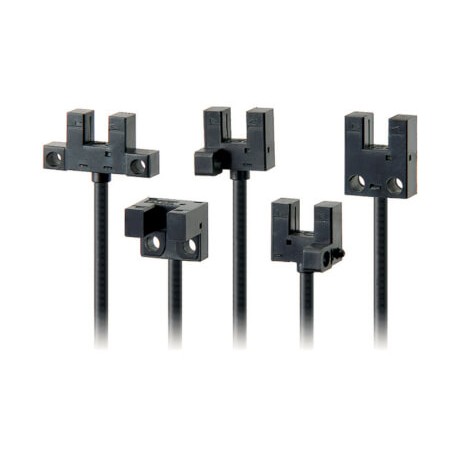

EE-SX950-R 1M EESX2209D EESX950R1M OMRON Horseshoe 5mm IR NPN With light/dark Cable robotic
EE-SX950-R 1M
EESX2209D
EESX950R1M
OMRON
10
Horseshoe 5mm IR NPN With light/dark Cable robotic
Horseshoe 5mm IR NPN With Light/In Darkness Robotic Cable
Photo micro sensor, slot type, NPN, 1 m robotic cable
Sensors > Fork light barrier
Photoelectric sensors > Photomicrosensors
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Ultra-compact fork shape Photomicrosensor
The small sized photo microsensors are ideally suited for the detection of machine parts where space is crucial.
- Mounting with M3 or M2 screws
- Bright indicator LEDs for high visibility from many directions.
- Antivalent output (L-ON/D-ON)
- Load short-circuit protection circuit
Deep slot
Deep slot of 6.5 mm allows higher tolerances in mechanical design.
Shape1 | Order code2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
1 m3 |  | ||||||||
 | |||||||||
 | |||||||||
 | |||||||||
 | |||||||||
Specifications
Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation) | |||||||
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Special construction |
| Laser protection class (EF004027) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP50 |
| Setting procedure (EF003994) | Other |
| Material of optical surface (EF004134) | Plastic |
| Sensing mode (EF007503) | Light-/dark switching |
| Type of interface for safety communication (EF003956) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Infrared light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | NPN |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| With communication interface RS-485 (EF007314) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface DeviceNet (EF007308) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Pre failure notice (EF004129) | No |
| With communication interface AS-Interface (EF007306) | No |
| With other analogue output (EF007485) | No |
| With restart blockage (EF004054) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 5 mm |
| Fork depth (EF008290) | 6.5 mm |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Fork width (EF008291) | 5 mm |
| Wavelength of the sensor (EF004132) | 940 nm |
| Response time (EF004094) | 0.17 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Width sensor (EF007094) | 23.9 mm |
| Rated switching distance (EF008289) | 5 mm |
| Height of sensor (EF007283) | 12 mm |
| Max. output current (EF001315) | 50 mA |
| Length of sensor (EF007334) | 6 mm |
| Switching frequency (EF003587) | 3000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Min. object size (EF008292) | 0.8 mm |
| Rated control supply voltage DC (EF003980) | 4.5 V |
| Ambient temperature (EF002386) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| EE-SX950-R 1M EESX950R1M EESX2209D e3c_lda_series_brochure_en.pdf | 592 Kbytes |
|
| EE-SX950-R 1M EESX950R1M EESX2209D e435_ee_sx95_compact_pre_wired_photomicrosensor_non_modulated_datasheet_en.pdf | 3 Mbytes |
|
