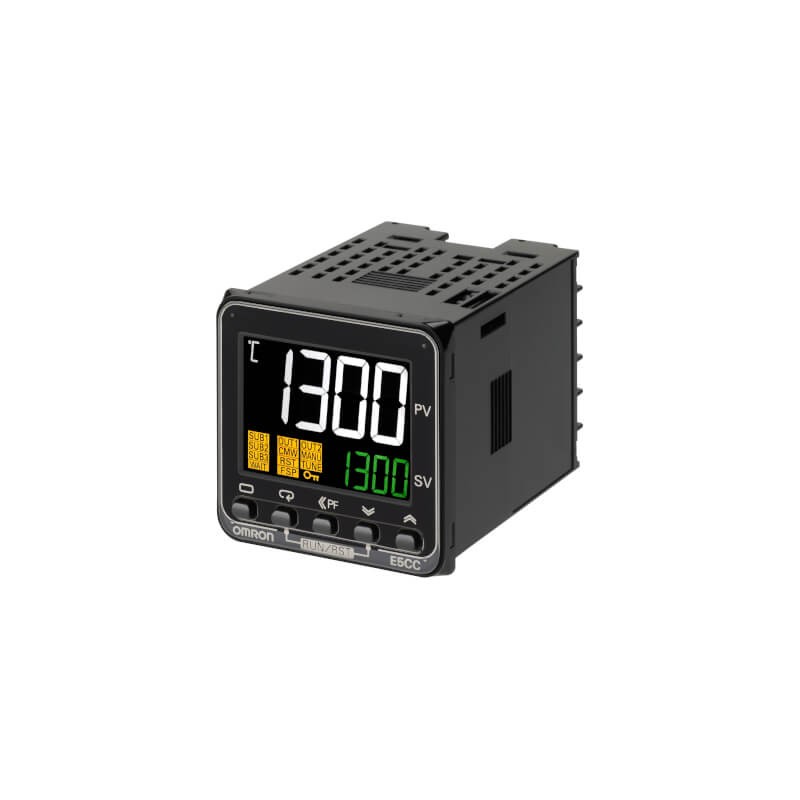

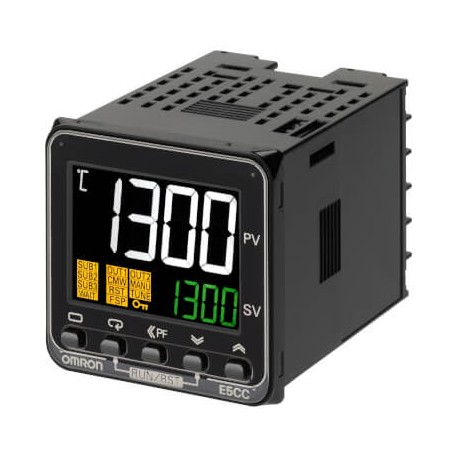

E5CC-QX3D5M-003 E5CC3517E 689420 OMRON Temperature Controller, 1/16 DIN (48 x 48 mm), 12 VDC Pulse Output, 3..
E5CC-QX3D5M-003
E5CC3517E
E5CCQX3D5M003OMI
OMRON
Temperature controller, 1/16 DIN (48x48 mm), 12 VDC pulse output, 3 AUX, RS-485, SSR failure detection/3-phase, 24 VAC/DC
Temperature and Processes > E5_C
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Size | 1/16 DIN (48 x 48 mm) |
| Functions | HB/HS alarm for 3-phase heaters, ON/OFF control, PID control |
| Number of control loops | 1 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range | -200-2300 °C |
| Number of event inputs | 0 |
| Number of alarm outputs | 3 |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Control output | Voltage pulse |
| Communication port(s) | Serial RS-485 |
| Terminal | Screw |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON EN.pdf | 24 Mbytes |
|
| E5CC-QX3D5M-003 E5CCQX3D5M003OMI E5CC3517E panel_building_brochure_en.pdf | 3 Mbytes |
|
