E3Z-L81-IL3 5M E3Z 8035M E3ZL81IL35MOMS OMRON Ecological cc 3h Slr 90mm PNP Spot reduc. Cable 5m IO LINK COM3
E3Z-L81-IL3 5M
E3Z 8035M
E3ZL81IL35MOMS
OMRON
Ecological cc 3h Slr 90mm PNP Spot reduc. Cable 5m IO LINK COM3

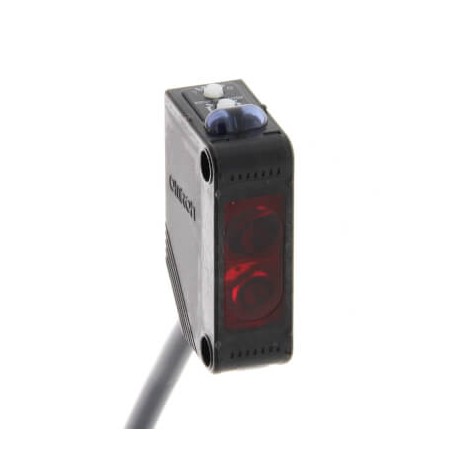

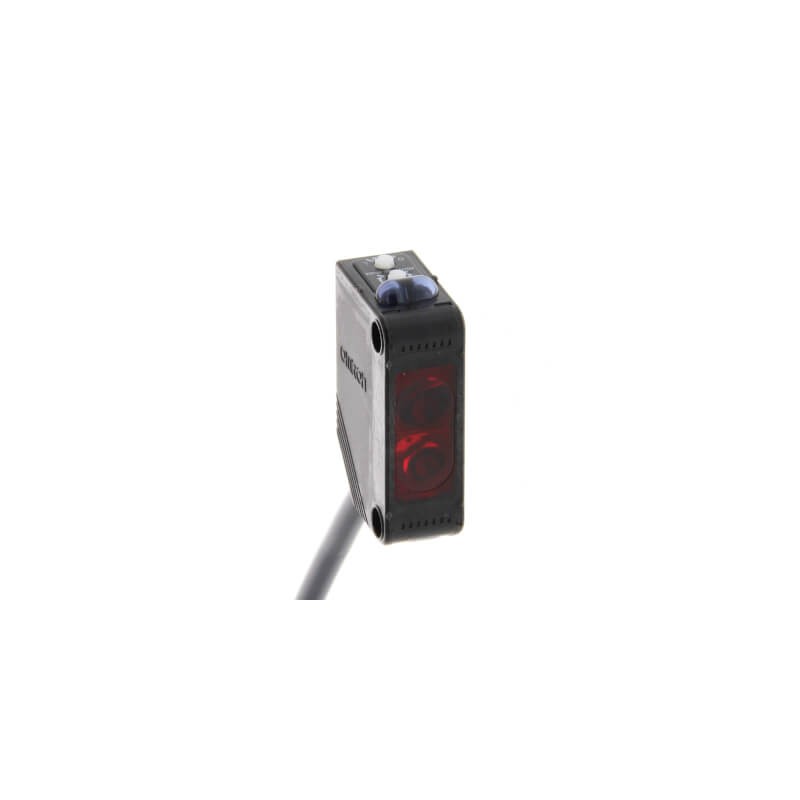

Photoelectric sensor, rectangular housing, red LED, diffuse, narrow beam, 90 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 5 m cable
Sensors > Diffuse reflective photoelectric sensor
Photoelectric sensors > E3Z
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Setting procedure (EF003994) | Parameterization |
| Material of optical surface (EF004134) | Plastic |
| Sensing mode (EF007503) | Light-/dark switching |
| Type of interface for safety communication (EF003956) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarized red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | PNP |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| With communication interface RS-485 (EF007314) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface DeviceNet (EF007308) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | Yes |
| Pre failure notice (EF004129) | Yes |
| With communication interface AS-Interface (EF007306) | No |
| With other analogue output (EF007485) | No |
| With restart blockage (EF004054) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 90 mm |
| AWG-number (EF007010) | 24 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Light dot (EF004030) | 5 mm² |
| Wavelength of the sensor (EF004132) | 650 nm |
| Response time (EF004094) | 1 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Width sensor (EF007094) | 10.8 mm |
| Height of sensor (EF007283) | 32.2 mm |
| Max. output current (EF001315) | 100 mA |
| Length of sensor (EF007334) | 20 mm |
| Switching frequency (EF003587) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Operating distance (EF004121) | 60 mm |
| Rated control supply voltage DC (EF003980) | 10 V |
| Ambient temperature (EF002386) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E3Z-L81-IL3 5M E3ZL81IL35MOMS E3Z 8035M EN_E3Z-L81-IL3-5M.pdf | 4 Mbytes |
|
| E3Z-L81-IL3 5M E3ZL81IL35MOMS E3Z 8035M e308_e3z_dimension_drawings_sensors_and_reflectors_datasheet_en.pdf | 195 Kbytes |
|
