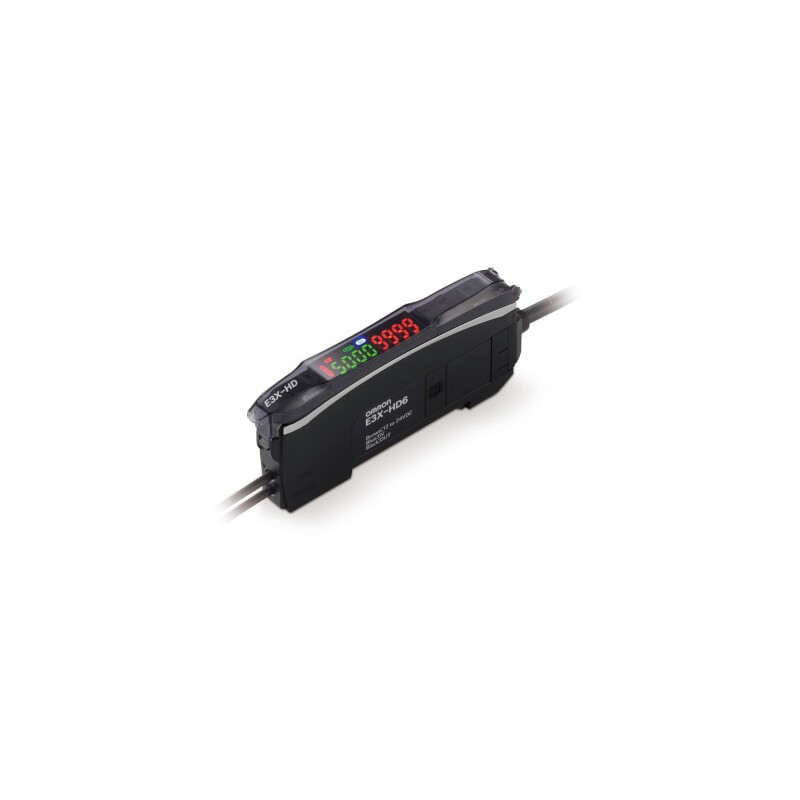

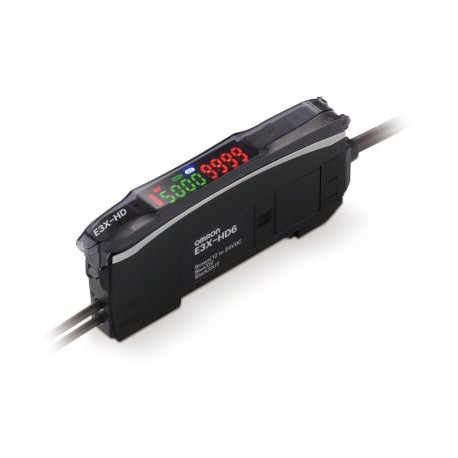

E3X-HD41-C1 2M 683742 OMRON Amplifier fiber, stable performance and easy, Giga Ray II LED, 2 m cable, access..
E3X-HD41-C1 2M
683742
OMRON
Amplifier fiber, stable performance and easy, Giga Ray II LED, 2 m cable, accessory E39-L143 included in the same package
Photoelectric sensors > E3X
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Easy-teach digital fiber amplifier
The E3X-HD with 1-button Smart tune set-up provides fast and simple teaching. Dual digital display and advanced features make the E3X-HD ideal even for demanding applications.
- Easy teaching by Smart tuning within a few seconds
- Dynamic Power Control (DPC) for highest operational stability for changing environmental conditions or challenging objects
- M8 connector models
- EtherCAT and CompoNet Communication units for high-speed field bus connectivity
Ordering information
Item | Order code | ||
|---|---|---|---|
Transistor output models | Communication unit model | ||
NPN output | PNP output | ||
Pre-wired | E3X-HD11 2M | E3X-HD41 2M | - |
Fiber amplifier connector | E3X-HD6 | E3X-HD8 | E3X-HD0 |
M8 connector (4pin) | E3X-HD14 | E3X-HD44 | - |
Fiber amplifier connectors
Shape | Type | Comment | Order code |
|---|---|---|---|
Fiber amplifier connector | 2 m PVC cable | E3X-CN11 | |
30 cm PVC cable with M12 plug connector (4 pin) | E3X-CN21-M1J 0.3M | ||
30 cm PVC cable with M8 plug connector (4 pin) | E3X-CN21-M3J-2 0.3M |
Communication units
Shape | Communications method | Applicable Fiber Amplifier Units | Order code |
|---|---|---|---|
CompoNet | E3X-HD0 E3X-MDA0 E3X-DA0-S | E3X-CRT | |
EtherCAT | E3X-ECT |
Specifications
Item | Type | Standard models | For Communications Unit | |||||
|---|---|---|---|---|---|---|---|---|
Model | E3X-HD11 | E3X-HD41 | E3X-HD6 | E3X-HD8 | E3X-HD14 | E3X-HD44 | E3X-HD0 | |
Connection method | Pre-wired | Wire-saving connector | M8-4pin connector | Communications unit connector | ||||
Control output | NPN output | PNP output | NPN output | PNP output | NPN output | PNP output | - | |
Light source (wavelength) | Red, 4-element LED (625 nm) | |||||||
Power supply voltage | 12 to 24 VDC±10%, ripple (p-p) 10% max. | |||||||
Power consumption | Normal Mode: 720 mW max. (Current consumption: 30 mA max. at 24 VDC, 60 mA max. at 12 VDC.) Power Saving Eco Mode: 530 mW max. (Current consumption: 22 mA max. at 24 VDC, 44 mA max. at 12 VDC.) | |||||||
Control output | Load power supply voltage: 26.4 VDC max., open-collector output (Varies with the model depending on output is PNP or NPN.)Load current: 50 mA max. (residual voltage: 2 V max.), OFF current: 0.5 mA max. | - | ||||||
Response time | Super-high-speed Mode (SHS) | Operate or reset: 50 μs (NPN models) or 55 μs (PNP models) | ||||||
High-speed Mode (HS) | Operate or reset: 250 µs | |||||||
Standard Mode (STND) | Operate or reset: 1 ms | |||||||
Giga-power Mode (GIGA) | Operate or reset: 1 ms | |||||||
Mutual interference prevention | Possible for up to 10 units | |||||||
| Maximum connectable Units | 16 units | with E3X-CRT: 16 units with E3X-ECT: 30 units | ||||||
Easy One-Button-Teaching/Smart Tuning
Easy setting of optimum power and threshold by pushing tune button twice.
Smart power control
Enhanced signal stability control for compensating power reductions caused by temperature drift, dust or aging of LED.
Field bus connectivity
Field bus communication allows control by an external device to simplify setup and reduce wiring effort.
1.For field bus connection please chose Communication unit E3X-ECT for EtherCAT or E3X-CRT for CompoNet.
