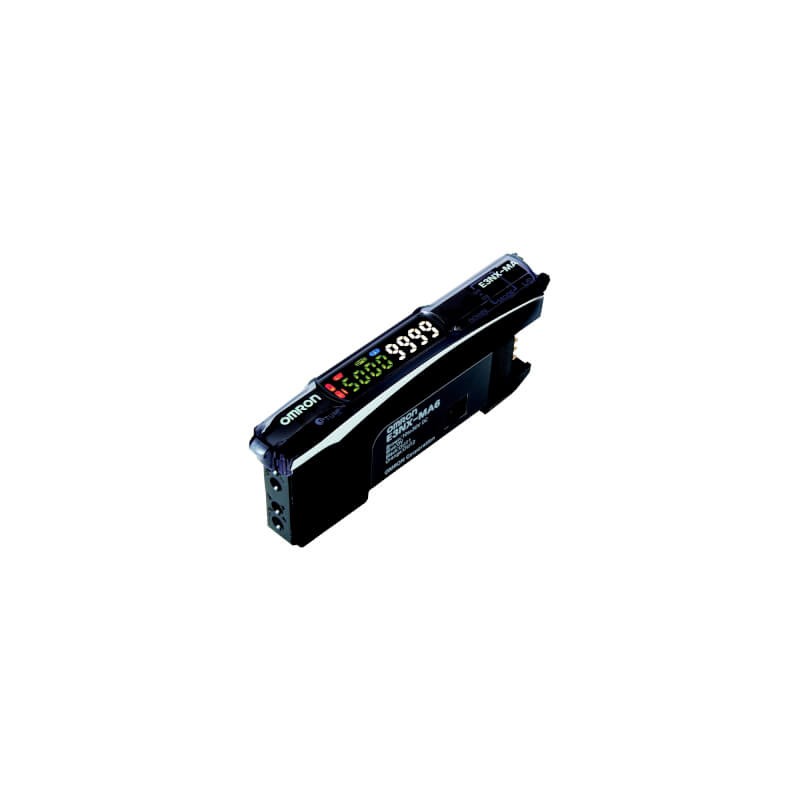

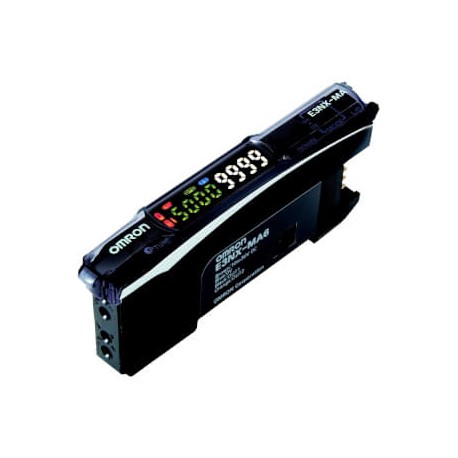

E3NX-MA6 E3NX7025E E3NXMA6OMS OMRON Amplifier fiber 2 input fiber, digital display, double, fit, intelligent..
E3NX-MA6
E3NX7025E
E3NXMA6OMS
OMRON
Amplifier fiber 2 input fiber, digital display, double, fit, intelligent, multi-function, 2 NPN, connector system
Fiber Amplifier, 2 Fiber Inputs, Dual Digital Display, Smart Adjustment, Multiple Functions, 2 NPN Outputs, System Connector
Fiber amplifier, 2 fiber input, twin digital display, smart tuning, multiple functions, 2 NPN output, system connector
Sensors > Optical fibre sensor / optical fibre amplifier
Advanced sensors > N-Smart
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP50 |
| Setting procedure (EF003994) | Other |
| Indication (EF000350) | Digital |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable with connector |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarized red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | NPN |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | Yes |
| AWG-number (EF007010) | 24 |
| No-load current (EF004028) | 0.1 mA |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Height amplifier (EF007284) | 33.5 mm |
| Length amplifier (EF007335) | 75.3 mm |
| Max. output current (EF001315) | 100 mA |
| Switching frequency (EF003587) | 5000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 2 |
| Width amplifier (EF007095) | 10 mm |
| Rated control supply voltage DC (EF003980) | 10 V |
| Ambient temperature (EF002386) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E3NX-MA6 E3NXMA6OMS E3NX7025E EN_E3NX-MA6.pdf | 3 Mbytes |
|
| E3NX-MA6 E3NXMA6OMS E3NX7025E e467_e3nx_ma_datasheet_en.pdf | 3 Mbytes |
|
