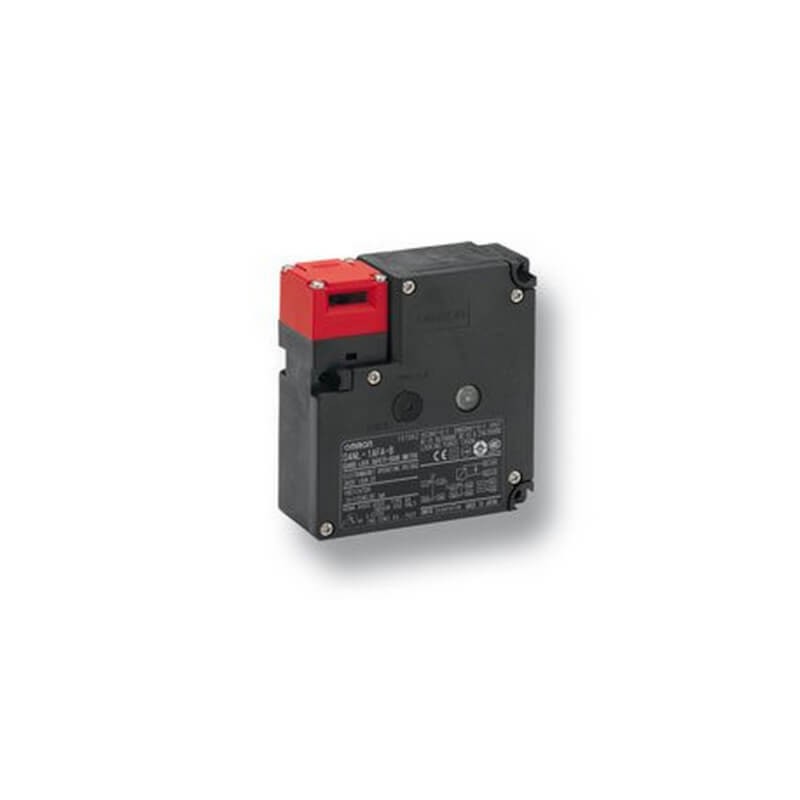

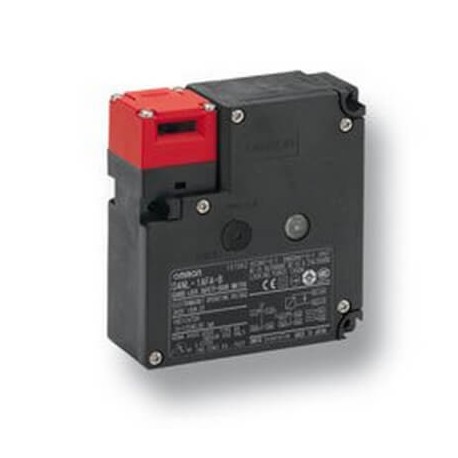

D4NL-2CFA-B D4NL0008M OMRON Safety door-lock switch, G1/2 entry, 2NC + 1NC/1NO, mechanical lock, 24 VDC,
D4NL-2CFA-B
D4NL0008M
OMRON
Safety door-lock switch, G1/2 entry, 2NC + 1NC/1NO, mechanical lock, 24 VDC,
Safety > D4DL/DS/DH/DR/GL/NL/NH/NS
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲More info
▲Specifications
| Door switch type | Key-operated |
| Guard-lock | |
| Material housing | Plastic |
| Material head | Plastic |
| Ambient temperature (operating) | -10-55 °C |
| Connection method | Terminal block |
| Cable length | 0 m |
| Direction of operation | Adjustable |
| Holding force | 1300 N |
| Door contacts NC | 2 |
| Door contacts NO | 0 |
| Lock monitor contacts NC | 1 |
| Lock monitor contacts NO | 1 |
| Lock/Release key type | Standard key |
| Lock/Release key position | Bottom |
| Lock/Release key material | Metal |
| Solenoid voltage | 24 V |
| LED indicator | |
| Degree of protection (IP) | IP67 |
| Conduit size | G1/2 |
| Number of conduits | 2 |
| Switch action | Slow action |
| Shape | Cuboid |
| Overall length | 95 mm |
| Height of sensor | 35.5 mm |
| Width of sensor | 88.5 mm |
| Switch without actuator | |
| Lock/Release logic | Power to unlock (Mechanical lock) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| D4NL-2CFA-B D4NL0008M EN_D4NL-2AFA-B4.pdf | 1 Mbytes |
 |
