OMRONIntegrated AutomationCK3M MULTI-AXIS CONTROLLERCK3W-AX1515N CK3W0013R CK3WAX1515N OMRON CK3W Axis Interface Unit. GIVES output (True DAC), Pulse + directio..

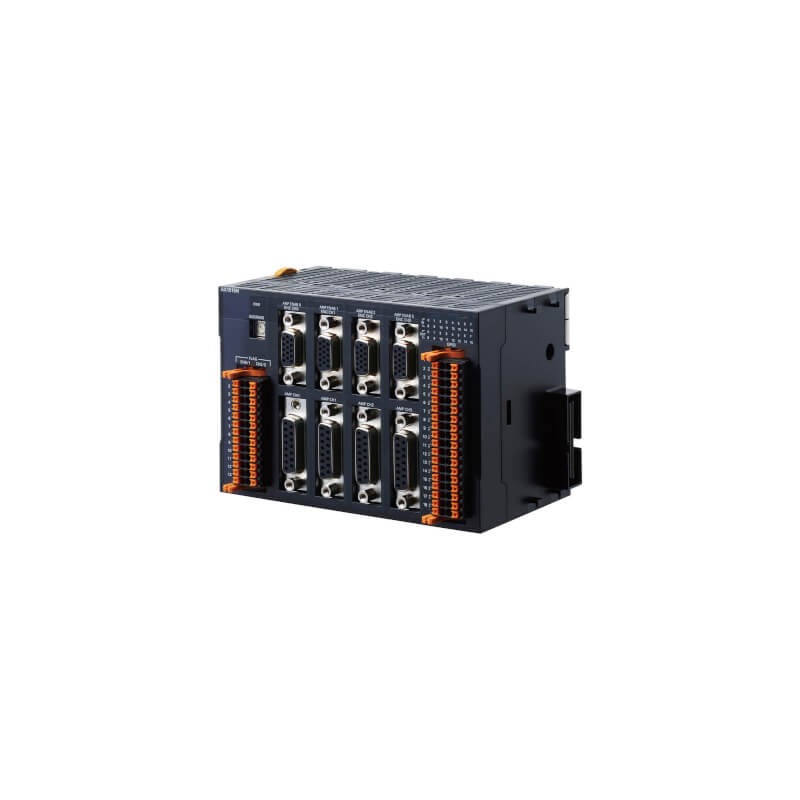

OMRON CK3W-AX1515N CK3W0013R CK3WAX1515N - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

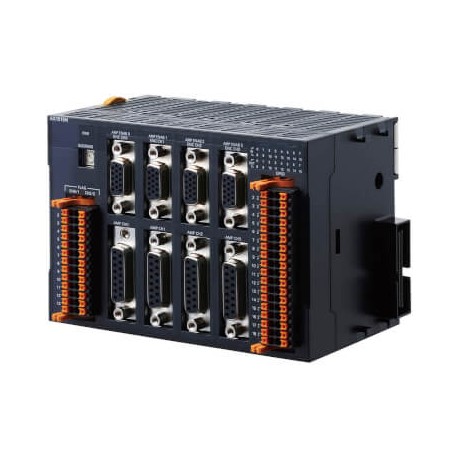

CK3W-AX1515N CK3W0013R CK3WAX1515N OMRON CK3W Axis Interface Unit. GIVES output (True DAC), Pulse + directio..

Reference: CK3W-AX1515N

Code: CK3W0013R

Catalog Number: CK3WAX1515N

Manufacturer: OMRON

Description:

CK3W Axis Interface Unit. GIVES output (True DAC), Pulse + direction or phase difference, Pulse encoder / Serial encoder, NPN Output type
CK3W 4-Axis Interface Unit, DA Output (True DAC), Pulse + Direction or Phase Difference, Pulse Encoder/Serial Encoder, NPN Output Type
CK3W 4 Axis Interface Unit, DA output (True DAC), Pulse + direction or phase difference, Pulse encoder / Serial encoder, NPN Output type

Categories:

  • PLC's > PLC function/technology module
  • OMRON > Integrated Automation > CK3M Multi-axis Controller

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 4.208,14 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Type of moduleAxis interfaceAmplifier interfaceTrue DACEncoder interfaceDigital quadrature / SerialNumber of encoder input channels4Number of pulse output channels4Digital output typeNPNProduct Height (unpacked)90 mmProduct Width (unpacked)130 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)520 g

ETIM for 684960 PLC's (EC001422)

Feature nameSuitable for counting (EF003248)
Feature valueYes
Feature nameSuitable for welding control (EF003251)
Feature valueNo
Feature nameSuitable for multi-axis positioning (EF003267)
Feature valueYes
Feature nameSuitable for flux measurement (EF003261)
Feature valueNo
Feature nameSuitable for weighing (EF003249)
Feature valueNo
Feature nameSuitable for incremental data detection (EF003258)
Feature valueNo
Feature nameSuitable for cam controller (EF003263)
Feature valueNo
Feature nameSuitable for CNC (EF003256)
Feature valueNo
Feature nameSuitable for NC (EF003253)
Feature valueYes
Feature nameSuitable for detection absolute value (EF003259)
Feature valueNo
Feature nameSuitable for flying saw (EF003264)
Feature valueNo
Feature nameRedundancy (EF003156)
Feature valueNo
Feature nameSuitable for path controller (EF003262)
Feature valueYes
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameSuitable for single-axis controller (EF003266)
Feature valueYes
Feature nameSuitable for multi-axis control (EF003265)
Feature valueYes
Feature nameSuitable for single-axis positioning (EF003268)
Feature valueYes
Feature nameSuitable for temperature control (EF008344)
Feature valueNo
Feature nameSuitable for pressure control (EF003252)
Feature valueNo
Feature nameWidth (EF000008)
Feature value130 mm
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameNumber of functions (EF003244)
Feature value4
Feature nameDepth (EF000049)
Feature value80 mm

DATASHEET - PDF

Title
Size
Type
CK3W-AX1515N CK3WAX1515N CK3W0013R r196_ck3m_brochure_en.pdf
2 Mbytes
CK3W-AX1515N CK3WAX1515N CK3W0013R ck3m_cpu_datasheet_en.pdf
4 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
