7411-2000-1005 3Z4T0054C 741120001005 OMRON MicroHAWK ID-40, enclosure IP65, 24 V DC, Ethernet, WVGA, 0.3 me..
7411-2000-1005
3Z4T0054C
741120001005
OMRON

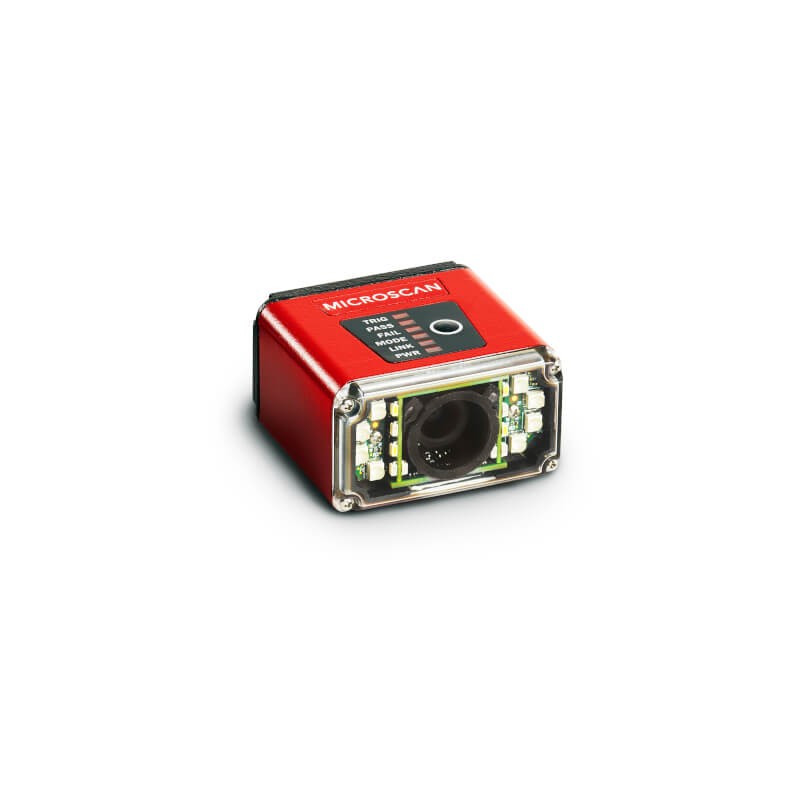

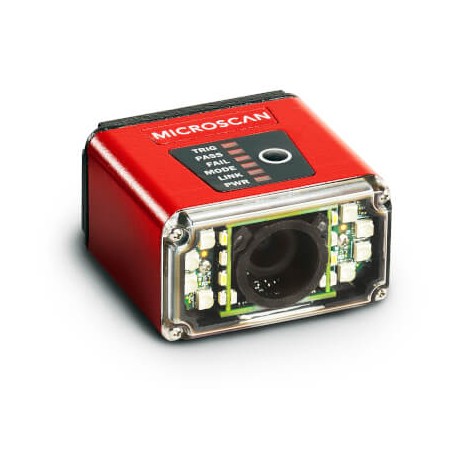

MicroHAWK ID-40, enclosure IP65, 24 V DC, Ethernet, WVGA, 0.3 megapixel, monochrome, high density, autofocus, LED red, high-speed, decoder X-Mode
MicroHAWK ID-40, IP65 Case, 24 VDC, Ethernet, WVGA, 0.3 Megapixel, Mono, High Density, Autofocus, Red LED, High Speed, X-Mode Decoder
Industrial barcode readers > BarCode Readers and Smart Cameras
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Communication port(s) | Ethernet TCP/IP |
| Number of pixels | 0.3 MP |
| Focus distance | 50-300 mm |
| Autofocus | |
| Camera type | Monochrome |
| Decoder speed | High speed |
| Decoder type | X-Mode (advanced 1D+2D+DPM) |
| Frame rate | 60 fps |
| Illumination | Red LED |
| Image width | 752 pixels |
| Image height | 480 pixels |
| Optics class | High Density |
| Pixel size | 6 µm |
| Shutter type | Global |
| Digital output type | None |
| Height | 25.4 mm |
| Width | 44.5 mm |
| Depth | 44.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| 7411-2000-1005 741120001005 3Z4T0054C microhawk_brochure_en.pdf | 1 Mbytes |
|
| 7411-2000-1005 741120001005 3Z4T0054C q263_ocr_code_reader_catalogue_en.pdf | 4 Mbytes |
|
