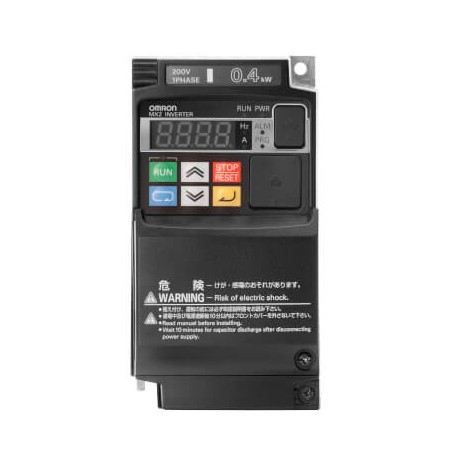

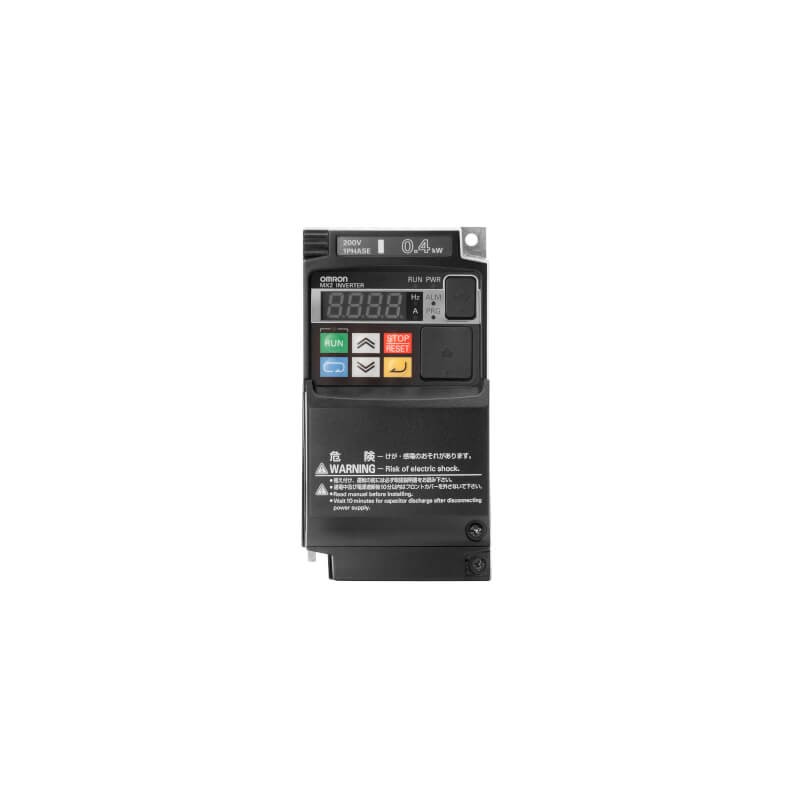

3G3MX2-AB007-P-E 3G3M9273F 3G3MX2AB007PE OMRON MX2 single-Phase, 200-240VAC, A 0.75/1.1 KW, 5.0/6.0 A(HD/ND)..
3G3MX2-AB007-P-E
3G3M9273F
3G3MX2AB007PE
OMRON
MX2 single-Phase, 200-240VAC, A 0.75/1.1 KW, 5.0/6.0 A(HD/ND), vector without heatsink
3G3MX2 inverter drive, 0.75/1.1 kW (HD/ND), 5.0/6.0 A (HD/ND), 200 VAC, 1~ input, sensorless vector, w/o heatsink, max. output freq. 580Hz
Low-voltage industrial components > Frequency converter less than 1 kV
Frequency inverters > MX2
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque | 0.75 kW |
| Max. motor output at variable torque | 1.1 kW |
| Built in EMC filter | |
| Degree of protection (IP) | IP20 |
| Finless type | |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Product Height (unpacked) | 128 mm |
| Product Width (unpacked) | 108 mm |
| Product Depth (unpacked) | 123 mm |
| Product Weight (unpacked) | 1400 g |
Accessories
| Feature Name | Feature Value |
|---|---|
| Mains frequency (EF006783) | 50/60 Hz |
| Type of converter (EF006978) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of phases input (EF007117) | 1 |
| Number of phases output (EF006998) | 3 |
| With PC connection (EF006107) | Yes |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFIBUS (EF003052) | Yes |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for BACnet (EF011944) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| 4-quadrant operation possible (EF006803) | Yes |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Application in industrial area permitted (EF007294) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for CAN (EF003053) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for DeviceNet (EF003059) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Integrated breaking resistance (EF007293) | No |
| Number of analogue inputs (EF001994) | 4 |
| Max. output frequency (EF007350) | 580 Hz |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of digital outputs (EF001993) | 6 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Max. output at linear load at rated output voltage (EF007364) | 0.75 kW |
| Relative symmetric net voltage tolerance (EF007453) | 10 % |
| Number of analogue outputs (EF001995) | 1 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Width (EF000008) | 108 mm |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Max. output at quadratic load at rated output voltage (EF007366) | 1.1 kW |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Nominal output current I2N (EF009561) | 6 A |
| Number of digital inputs (EF001992) | 10 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Height (EF000040) | 128 mm |
| Max. output voltage (EF009560) | 240 V |
| Depth (EF000049) | 123 mm |
| Relative symmetric net frequency tolerance (EF007454) | 5 % |
| Mains voltage (EF006780) | 200 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| 3G3MX2-AB007-P-E 3G3MX2AB007PE 3G3M9273F ES_3G3MX2-A2001-EV2.pdf | 4 Mbytes |
|
| 3G3MX2-AB007-P-E 3G3MX2AB007PE 3G3M9273F mx2_inverter_brochure_en.pdf | 6 Mbytes |
|
