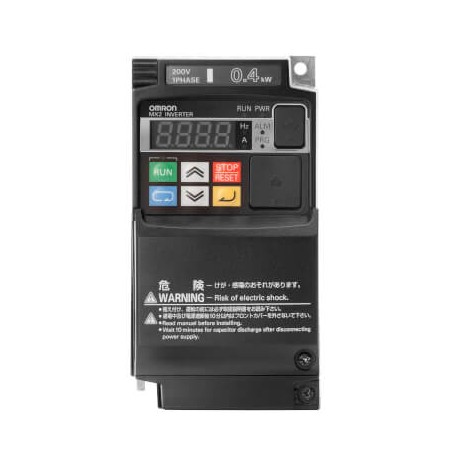

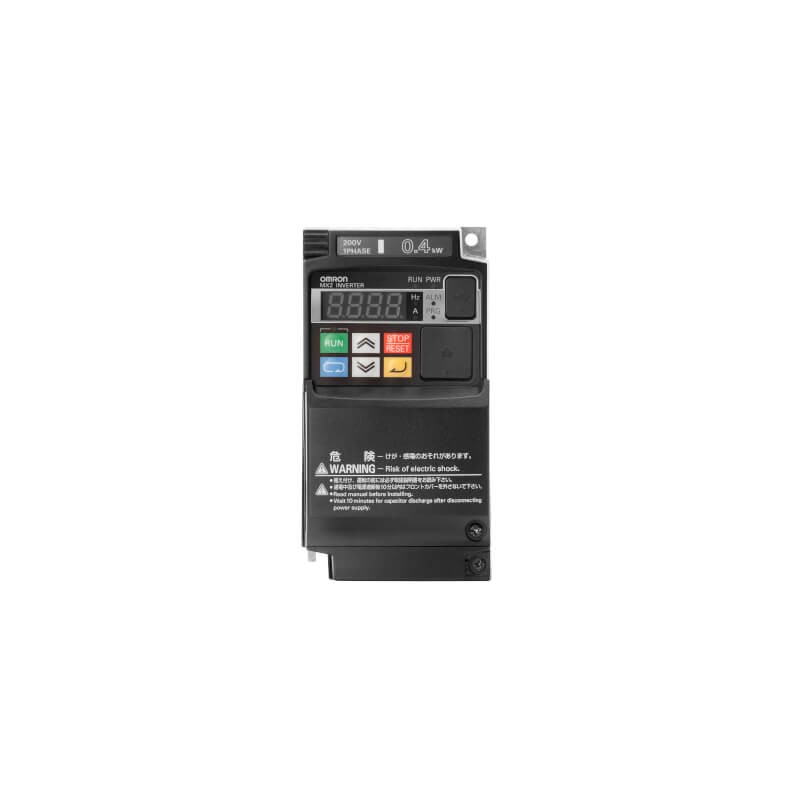

3G3MX2-A4015-P-E 3G3M9278G 3G3MX2A4015PE OMRON MX2 Three-phase, 380-480VAC, 1.5/2.2KW, 4.8/5.4A(HD/ND), vect.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3G3MX2-A4015-P-E 3G3M9278G 3G3MX2A4015PE OMRON MX2 Three-phase, 380-480VAC, 1.5/2.2KW, 4.8/5.4A(HD/ND), vect..

3G3MX2-A4015-P-E

3G3M9278G

3G3MX2A4015PE

OMRON

MX2 Three-phase, 380-480VAC, 1.5/2.2KW, 4.8/5.4A(HD/ND), vector without heatsink

3G3MX2 inverter drive, 1.5/2.2 kW (HD/ND), 4.8/5.4 A (HD/ND), 400 VAC, 3~, sensorless vector, w/o heatsink, max. output freq. 580Hz

More details


Frequency inverters > MX2

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Specifications

Drive control methodOpen loop V/f, Open loop vector
Drive supply voltage400 V three phase
Max. motor output at constant torque1.5 kW
Max. motor output at variable torque2.2 kW
Built in EMC filter
Degree of protection (IP)IP20
Finless type
Compatible motor typeInduction or asynchronous motor, Permanent magnet motor
Regenerative solutionsAs inverter option
Communication port(s)MODBUS Slave, Serial RS-485, USB
Communication option(s)CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave
Product Height (unpacked)128 mm
Product Width (unpacked)108 mm
Product Depth (unpacked)123 mm
Product Weight (unpacked)1900 g

Accessories

3G3AX-MX2-DRT-EDeviceNet option card for MX2 inverter
3G3AX-MX2-ECTMX2 EtherCAT option card
3G3AX-MX2-EIP-AMX2 Ethernet/IP option card
3G3AX-MX2-PRT-EMX2 option card, PROFIBUS DP
3G3AX-OP01LED remote operator panel, cable length max. 3m
AX-FER2102-PEFerrite choke, 21mm diameter, for 2.2kW inverters and below
AX-FIC4010-SECommon footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 9.4 A, 400 VAC, three phase. Please check datasheet for the correct drive selection.
AX-FIC4010-SE-LLLow Leakage common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 9.4 A, 400 VAC. Please check datasheet for the correct drive selection.
AX-RAO16300038-DEAC output reactor, 3.8 A, 16.3 mH, for 0.4, 0.7 and 1.5 kW , 400 VAC, 3 phase
AX-RC14000047-DEDC link reactor, 4.7 A, 14 mH, for 1.5 kW, 400 VAC

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf 19 Mbytes
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
3G3MX2-A4015-P-E 3G3MX2A4015PE 3G3M9278G ES_3G3MX2-A2001-EV2.pdf 4 Mbytes 3G3MX2-A4015-P-E 3G3MX2A4015PE 3G3M9278G ES_3G3MX2-A2001-EV2.pdf
