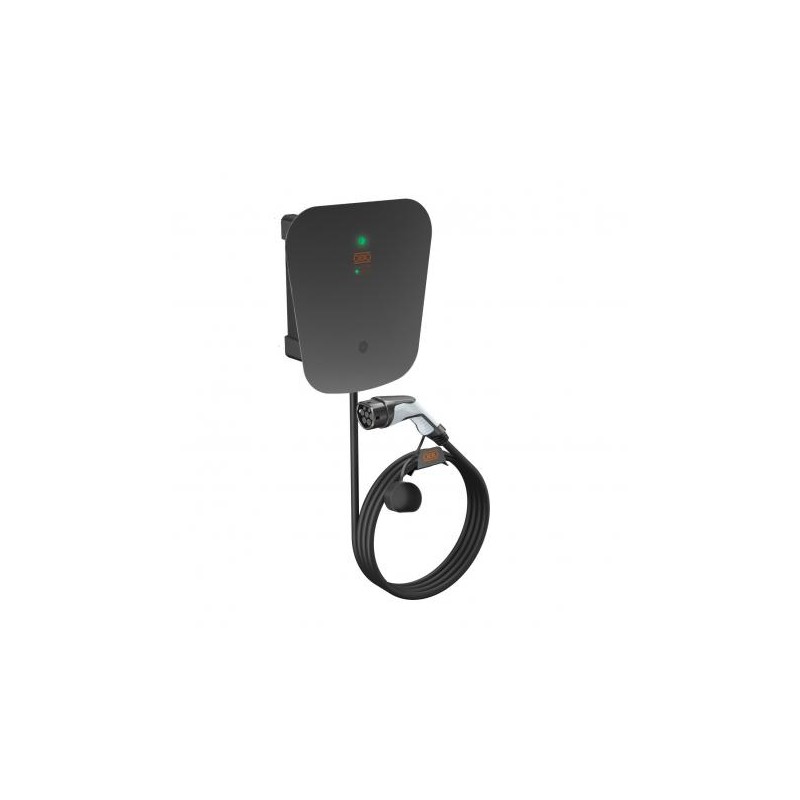

WB AC BL SPD 6570024 OBO BETTERMANN WB AC BL SPD charging station, Basis Protect 370x340x136 Polycarbonate, ..
WB AC BL SPD
6570024
OBO BETTERMANN
WB AC BL SPD charging station, Basis Protect 370x340x136 Polycarbonate, PC lacquered
Ion Charging station Basic Protect. The Ion charging station for the charging of electrical vehicles in private areas as a singular charging point. Suitable for permanent mounting on the wall in interior or protected exterior areas. • Charging according to Mode 3 in accordance with IEC 61851-1• Single, double and three-phase charging• Suitable for TN and TT networks• Integrated temperature monitoring• DC error current monitoring• Status information via LED display• Prewired, ready for connection• Including 5 m charging cable with type 2 charging connector and cable bracket• Supply from above or below• Stainless steel design elements• Charging power can be limited to a fixed value, factory-set value 11 kW• Integrated surge voltage protection for power and data cables• Modbus RTU protocol
Home > OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 20,7963 kg CO2e / 1 Piece |
|---|---|
| Colour | Black |
| Depth | 136 mm |
| Dimension | 370x340x136 |
| Height | 370 mm |
| Material | Polycarbonate |
| Max. Output per charging point | 22 kW |
| Nominal connection output | 22 kW |
| Number of charging points | 1 |
| Number of type 2 charging connectors | 1 |
| Protection rating | IP66 |
| Protection rating IK code | IK08 |
|---|---|
| Surface | Painted |
| Surge protection | yes |
| Version for | 3-phase |
| Width | 340 mm |
| With circuit breaker | no |
| With communication interface | yes |
| With domestic junction box (HAK) | no |
| With energy meter | no |
| With load management | no |
| Feature Name | Feature Value |
|---|---|
| Installation side connection model (EF025053) | 3-phase |
| Nominal connection power (EF002136) | 22 kW |
| Number of charging units (EF009078) | 1 |
| Max. power per charging point (EF009300) | 22 kW |
| Width (EF000008) | 340 mm |
| Height (EF000040) | 370 mm |
| Depth (EF000049) | 136 mm |
| Mounting method (EF000003) | Wall mounting |
| Number of vehicle connectors Type 1 (EF009301) | 0 |
| Number of vehicle connectors Type 1 CCS (EF009302) | 0 |
| Number of vehicle connectors Type 2 (EF009303) | 1 |
| Number of vehicle connectors Type 2 CCS (EF009304) | 0 |
| Number of socket outlets Type 2 (EF009305) | 0 |
| Number of vehicle connectors GB AC (EF009306) | 0 |
| Number of vehicle connectors GB DC (EF009307) | 0 |
| Number of socket outlets GB (EF009308) | 0 |
| Number of socket outlets Type 3 (EF009309) | 0 |
| Number of vehicle connectors CHAdeMO (EF009310) | 0 |
| Number of CEE socket outlets (IEC 60309) (EF006577) | 0 |
| With house connection box (EF009089) | No |
| Number of household socket outlets (EF009311) | 0 |
| Number of earth leakage circuit breakers type A (EF009091) | 0 |
| Number of earth leakage circuit breakers type B (EF009092) | 0 |
| With miniature circuit breaker (MCB) (EF009314) | No |
| With energy meter (EF009313) | No |
| Housing material (EF001596) | Plastic |
| Degree of protection (IP) (EF005474) | IP66 |
| Impact strength (EF004293) | IK08 |
