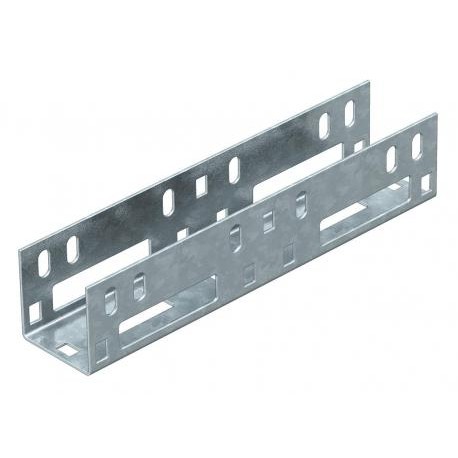

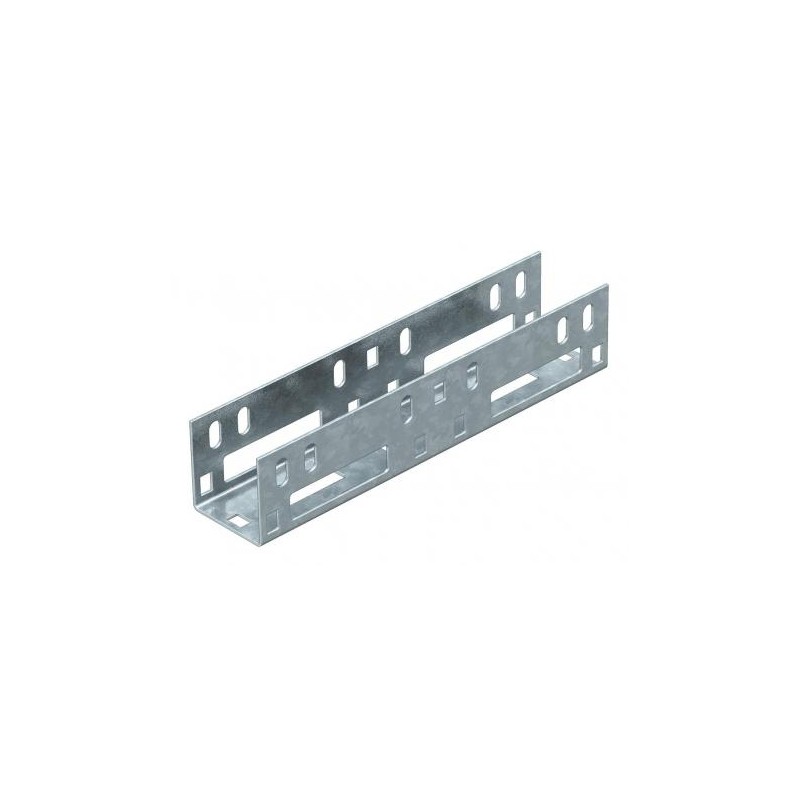

VF AZK 50 FS 6066615 OBO BETTERMANN UNION STRAIGHT VF AZK 50 FS
VF AZK 50 FS
6066615
OBO BETTERMANN
25
UNION STRAIGHT VF AZK 50 FS
Straight union VF AZK 50 FS, inner union, for AZ channel 45x45x220 Steel, St, galvanized in band, DIN EN 10346
Straight connector 50 FS. Straight connector for connection of luminaire support channels and AZ channels.
Cable installation ducts > Joint clip for installation duct
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9276 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 45x45x220 |
| Dimension | 45x45x220 |
| Height | 45 mm |
| Material | Steel |
| Plate thickness | 1,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for cable tray system height | 45 mm |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Version for | Straight connector |
| Width | 45 mm |
| Feature Name | Feature Value |
|---|---|
| Width installation duct (EF007712) | 45 mm |
| Height installation duct (EF007859) | 45 mm |
| Material (EF002169) | Steel |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
