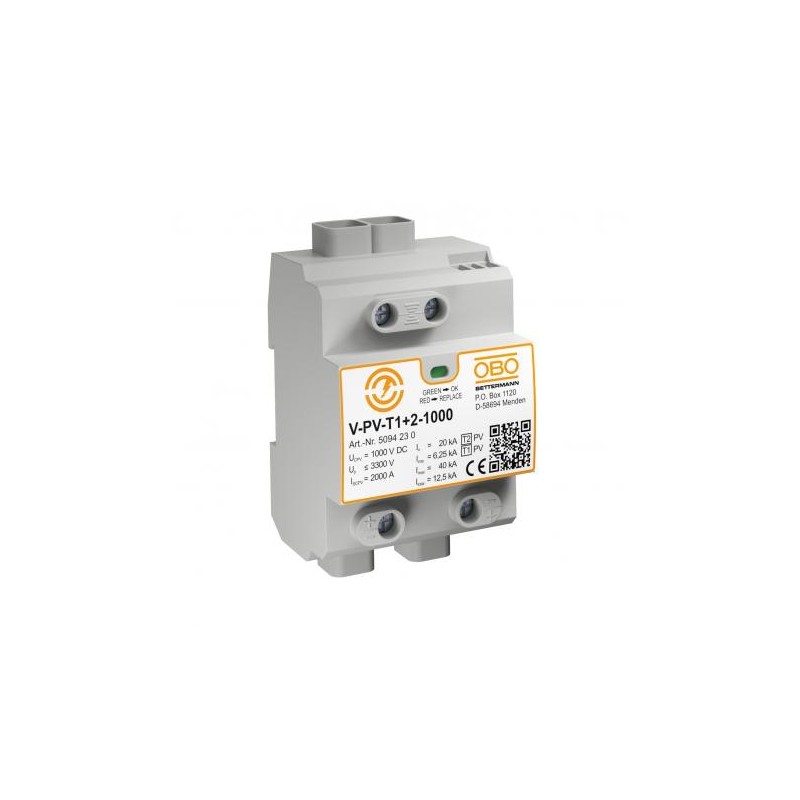

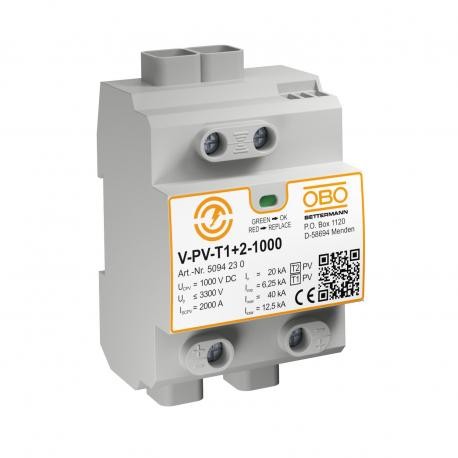

V-PV-T1+2-1000 5094230 OBO BETTERMANN ARRESTER COMBINED V-PV
V-PV-T1+2-1000
5094230
OBO BETTERMANN
ARRESTER COMBINED V-PV
PV complete block 1,000 V DC. Type 1 + 2 combination arrester for lightning and surge protection of PV systems.• Lightning protection equipotential bonding according to IEC 62305 (VDE 0185-305) • Surge protection according to IEC 60364-7-712 (VDE 0100-712)• Arresting capacity to 12.5 kA (10/350) and 40 kA (8/20)• Error-resistant Y circuit with status display• The FS variant possesses a potential-free changeover contact for remote signallingApplication: Lightning current and surge protective devices for PV systems.
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Arrester surge current (8/20 µs) [total] | 40 kA |
|---|---|
| Blow-out | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1389 kg CO2e / 1 Piece |
| Colour | Grey |
| Conductor cross-section, flexible (fine-wire), max. | 35 mm² |
| Conductor cross-section, flexible (fine-wire), min. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 35 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
| DC network form | yes |
| Dimension | 1000V DC |
| Height | 120 mm |
| Installation type | DIN rail 35 mm |
| Integrated back-up fuse | no |
| IT network form | no |
| Length | 65,5 mm |
| Lightning protection zone LPZ | 0→2 |
| Lightning surge current (10/350 μs) | 6,25 kA |
| Lightning surge current (10/350) | 12,5 kA |
| Max. PV voltage | 1000 V |
| Maximum continuous voltage DC | 1000 V |
| Maximum discharge current (8/20 μs) | 40 kA |
| Network form | DC |
| Nominal discharge current (8/20 µs) | 20 kA |
| OBO_Nominal load current (input/output terminal) | 50 A |
|---|---|
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Other network form | no |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Pole version | Other |
| Protection rating | IP20 |
| Remote signalling | no |
| Response time | <25 ns |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 1+2 |
| SPD to IEC 61643-1 | Class I+II |
| Test class, type 1 | yes |
| Test class, type 2 | yes |
| TN network form | no |
| TN-C network form | no |
| TN-C-S network form | no |
| TN-S network form | no |
| TT network form | no |
| Version for | Y configuration |
| Width | 71,2 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
