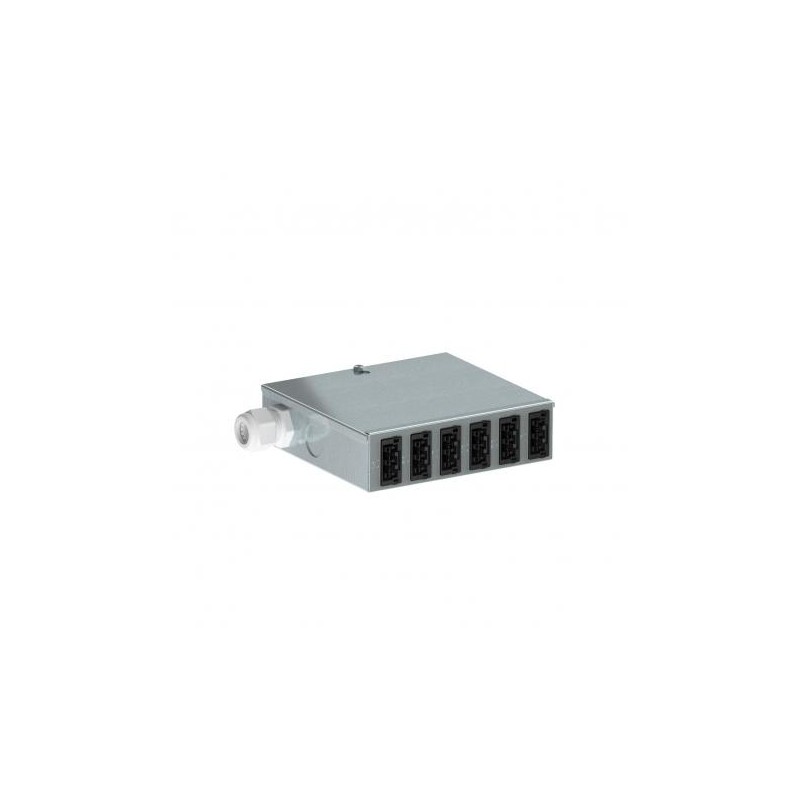

UVS-WIN F6S 6107980 OBO BETTERMANN Distributor under ground connection fixed, WINSTA 6 150x196x46, steel, St
UVS-WIN F6S
6107980
OBO BETTERMANN
Distributor under ground connection fixed, WINSTA 6 150x196x46, steel, St
UVS-WIN energy distributor with fixed connection, normal circuit. Energy distributor for heavy current technology with fixed connection, equipped and pre-wired.Input: 1x three-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA (socket part: 2x L1, 2x L2, 2 x L3Internal wiring: H07V-U2.5Input: 1x three-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).Internal wiring: PVC non-sheathed cable H07V-U2.5.
EGS device systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,2896 kg CO2e / 1 Piece |
|---|---|
| Colour of the plug connector system | Black |
| Connection type | Terminal block |
| Cross-section of the connection cable | 4 mm² |
| Dimension | 150x196x46 |
| Height | 46 mm |
| Input | 5-pole |
| Length | 196 mm |
|---|---|
| Material | Steel |
| No. of outlets | 6 |
| Number of input circuits | 1 |
| Plug connector system, system-specific | yes |
| Width | 149 mm |
| Feature Name | Feature Value |
|---|---|
| Input (EF000847) | 5-pole |
| Suitable for loop-through wiring (EF000039) | No |
| Number of input current circuits (EF004405) | 1 |
| Cross section connection cable (EF005193) | 4 mm² |
| Connection type (EF000124) | Clamp block |
| Number of branches per phase (EF004341) | 6 |
| System-oriented connector system (EF008067) | Yes |
| Housing material (EF001596) | Metal |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
