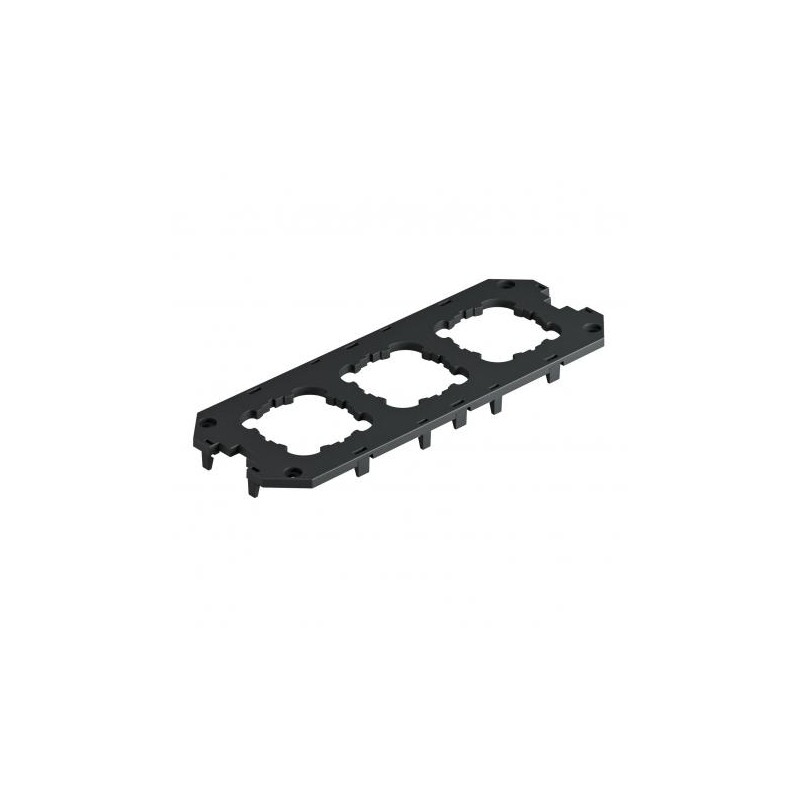

UT4 D3 7408789 OBO BETTERMANN Mat for UT4, 3 holes for sockets 28x76x13 black graphite 9011 Polyamide, PA
UT4 D3
7408789
OBO BETTERMANN
10
Mat for UT4, 3 holes for sockets 28x76x13 black graphite 9011 Polyamide, PA
Cover plate for universal support UT4, with installation openings for 3 EK devices. Cover plate for the installation of 3 installation devices with support clamp (EK version).
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application | Mounting box |
|---|---|
| Blanking lid | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1272 kg CO2e / 1 Piece |
| Colour | Graphite black; RAL 9011 |
| Dimension | 28x76x13 |
| Division in UT4 | 1/1 |
| Fastening type | Lockable |
| Installation technology | 50 mm central plate |
| Labelling panel | no |
|---|---|
| Length | 208 mm |
| Material | Polyamide |
| Number of installable devices | 3 |
| Number of round openings | 3 |
| Number of triple openings | 1 |
| Suitable for labelling panel | no |
| Width | 76 mm |
| Feature Name | Feature Value |
|---|---|
| Cover plate length (EF007902) | 208 mm |
| Application (EF000041) | Device cup |
| Number of single openings (EF001118) | 0 |
| Number of double openings (EF001119) | 0 |
| Number of triple openings (EF001120) | 1 |
| Number of CEE-/perilex openings (EF001121) | 0 |
| Number of square openings (EF005598) | 0 |
| Number of round openings (EF006412) | 3 |
| Number of oval openings (EF006413) | 0 |
| Installation technique (EF001474) | Other |
| Type of fastening (EF002442) | Snap |
| Blind plate (EF005651) | No |
| With label area (EF005040) | No |
| Suitable for label area (EF004523) | No |
| Material (EF002169) | Polyamide (PA) |
| Colour (EF000007) | Black |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
